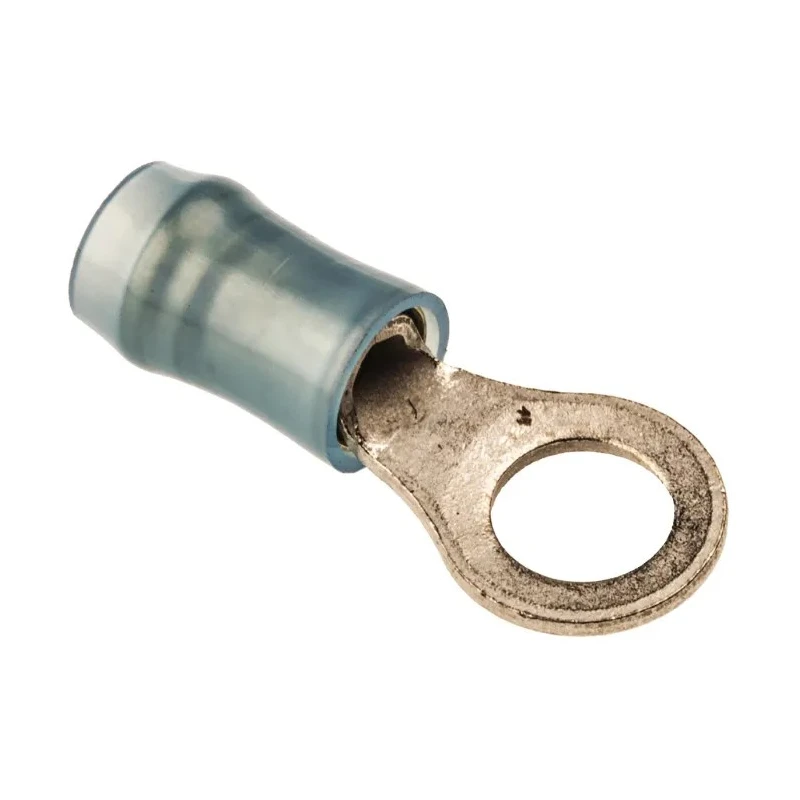

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size Blue 130094
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 130094 |
| Insulation | Insulated |
| Overall Length | 21.6mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 150°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.7mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
| RS PRO Insulated Ring Terminal, M5 Stud Size 16 AWG 14 AWG Wire Size, BlueBrand | RS PRO |
| TE Connectivity Crimp Ring Terminal, 5mm Stud Size, Black, YellowBrand | TE Connectivity |
| M5 BLUE RINGBrand | TE Connectivity |
Key Features
- Constructed with high conductivity copper body for reliable electrical connections.
- Features a nylon insulated sleeve colored blue for easy wire size identification.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Funnelled wire entry prevents turned-back wire strands for faster wire insertion.
- Suitable for industrial applications including control instruments, power supplies, transportation, and aerospace.
- Meets or exceeds MIL-T-7928, Type II, Class 1 and 2 requirements.
- Maximum operating temperature of 150°C ensures durability in demanding environments.
Product Description
TE Connectivity 130094 PIDG Insulated Ring Terminal, M5 Stud Size, designed for wire sizes ranging from 16 AWG to 14 AWG with a blue nylon insulated sleeve. This ring terminal features a high conductivity copper body with a precision-formed barrel that includes serrations to provide enhanced contact and tensile strength after crimping.
The wire barrel is surrounded by a copper sleeve that improves insulation support and prevents wire fraying during installation. The funnelled wire entry design facilitates quick and reliable wire insertion, which is ideal for high-speed production environments.
This PIDG insulated ring terminal is used across various demanding industrial applications including instrumentation and control systems, lighting, power supplies, panel boxes, transportation equipment, lifting devices, motors, aerospace, and household appliances.
Manufactured with a blue nylon sleeve color-coded for easy wire size and tooling identification, the terminal supports wire gauges from 16 AWG to 14 AWG with minimum and maximum wire sizes of 1 mm² and 2.6 mm² respectively. The stud size is M5 with an outer ring diameter of 8.7 mm and an inner ring diameter of 5 mm. The overall length is 21.6 mm, and the maximum operating temperature is 150°C.
High conductivity copper body ensures excellent electrical performance. Copper sleeve structure enhances wire insulation support and prevents fray. Ring terminals have serrations to maximize contact and tensile strength post-crimp.
Color-coded blue nylon insulation sleeve for quick wire and tooling identification. Funnel entry design prevents wire strand turnback improving crimp reliability and speed. Conforms to or exceeds MIL-T-7928, Type II, Class 1 and 2 standards.
Manufactured in the United States under strict quality controls.
This TE Connectivity PIDG ring terminal is a reliable solution across industrial, laboratory, construction, and commercial electrical applications demanding uniform and durable wire crimping connections.
Explore more quality Ring Terminals and power connectors at EnvMart for your precise wiring solution requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 16 AWG to 14 AWG, with a minimum wire size of 1 mm² and a maximum wire size of 2.6 mm².
The stud size for this ring terminal is M5.
The maximum operating temperature for this unit is 150°C.
It features a high conductivity copper body with a tin plating and is insulated with a blue nylon sleeve.
The overall length is 21.6 mm, the outer ring diameter is 8.7 mm, and the inner ring diameter is 5 mm.
The funnelled wire entry design facilitates quick and reliable wire insertion, preventing turned-back wire strands.
It conforms to or exceeds MIL-T-7928, Type II, Class 1 and 2 requirements.
This unit is suitable for various industrial applications including control instruments, power supplies, transportation, and aerospace.
The serrated wire barrel provides maximum contact and tensile strength after crimping, ensuring reliable connections.
It is manufactured in the United States under strict quality controls.
The insulation on this terminal is blue, which also aids in easy wire size identification.
The copper sleeve structure enhances insulation support and prevents wire fraying during installation.
