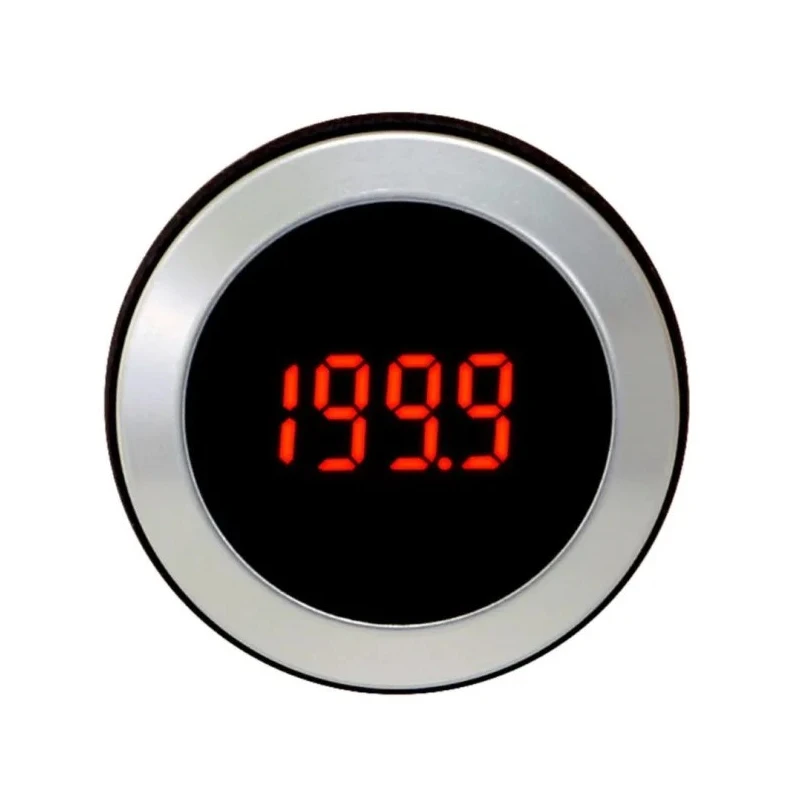

Lascar Digital Voltmeter DC with LED Display 3.5-Digits ±1 % Accuracy EM 32-1B-LED

Free Delivery in India | Lowest Global Shipping Charges

Lascar Digital Voltmeter DC with LED Display 3.5-Digits ±1 % Accuracy EM 32-1B-LED

Name: Lascar Digital Voltmeter DC with LED Display 3.5-Digits ±1 % Accuracy EM 32-1B-LED
Brand: Lascar
SKU: 332266
Price: 87.96 USD
Availability: InStock



Category Digital Voltmeter Brand Lascar Condition New

Specifications

Country of Origin	Hong Kong
Display Type	LED
Brand	Lascar
Model	EM 32-1B-LED
Series	EM
Maximum Operating Temperature	50°C
Current Type	DC
Number Of Digits	3.5
Note	Default supply voltage 3.5 to 6.5VDC, configurable for 7.5-14VDC operation. Inclusions: Mounting nut and rubber seat to achieve IP67 protection
Meter Accuracy	±1 %
Minimum Operating Temperature	0°C
Digit height	8mm
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Lascar LED Digital Panel Multi-Function Meter for Current, VoltageBrand	Lascar

Key Features

Features an 8mm digit height for clear visibility.
Operates within a temperature range of 0°C to 50°C.
Includes mounting nut and rubber seat to achieve IP67 protection.
Selectable decimal points with auto-zero and auto-polarity functions.
Requires a 32.5mm diameter panel cut-out for installation.
Designed for low to medium volume industrial and process control environments.
Precision full-scale reading of 200 mVDC with supply voltage configurable from 3.5 to 14 VDC.

Product Description

Lascar EM 32-1B-LED Digital Voltmeter DC with LED Display offers high precision measurement with 3.5-digits and ±1 % accuracy suitable for various industrial, laboratory, and manufacturing applications. The LED display has an 8mm digit height ensuring clear numeric visibility even in panel-mounted setups.

Designed to operate between 0°C and 50°C, this voltmeter features auto-zero and auto-polarity to improve usability and measurement reliability. The unit is configured for a full-scale reading of 200mV DC with a supply voltage normally between 3.5 and 6.5 VDC and an optional setting for 7.5 to 14 VDC operation. Installation requires a 32.5mm (1.28 inch) diameter cut-out and includes mounting hardware such as a nut and rubber seal to achieve IP67 ingress protection.

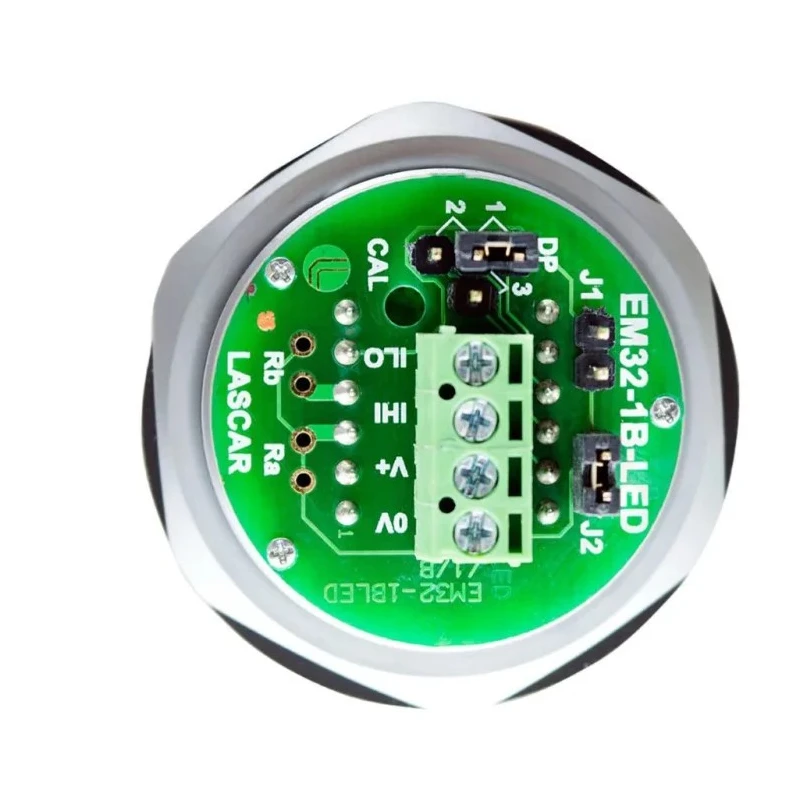

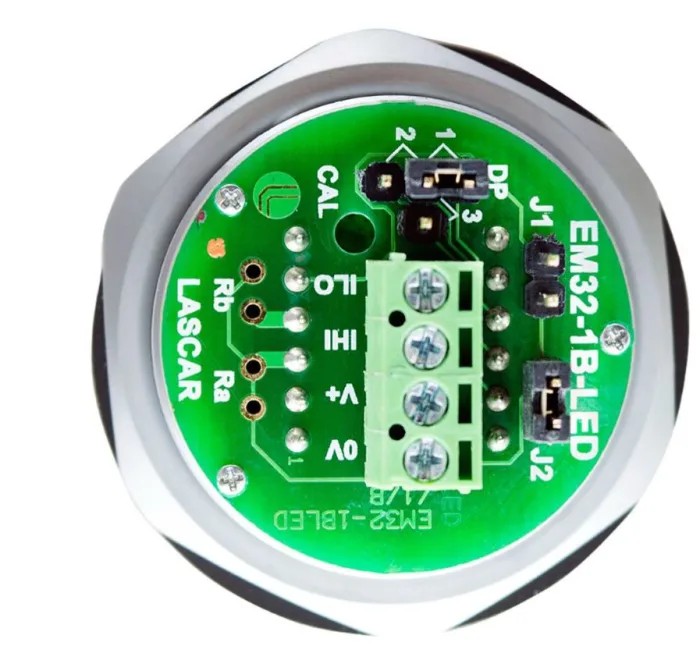

This voltmeter supports process control, automotive, and panel mount instrumentation applications where reliable DC voltage measurement is critical. The robust metal bezel and screw terminal connections offer durability and ease of installation in both low and medium volume production environments.

Lascar EM 32-1B-LED complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards ensuring safety and electrostatic sensitivity protection adherence in industrial settings. It is manufactured in Hong Kong.

8mm high LED digits enhance readability. Auto-zero and auto-polarity features simplify operation. IP67 rating with included mounting nut and rubber seat. Selectable decimal points for versatile measurements. Panel cut-out diameter requirement of 32.5mm enhances fitting accuracy.

Reliable performance between 0°C and 50°C operating temperature. Compatible with industrial, laboratory, automotive, and process control use cases. ANSI/ESD S20.20 and BS EN 61340-5-1 compliant for safety and electrostatic standards.
