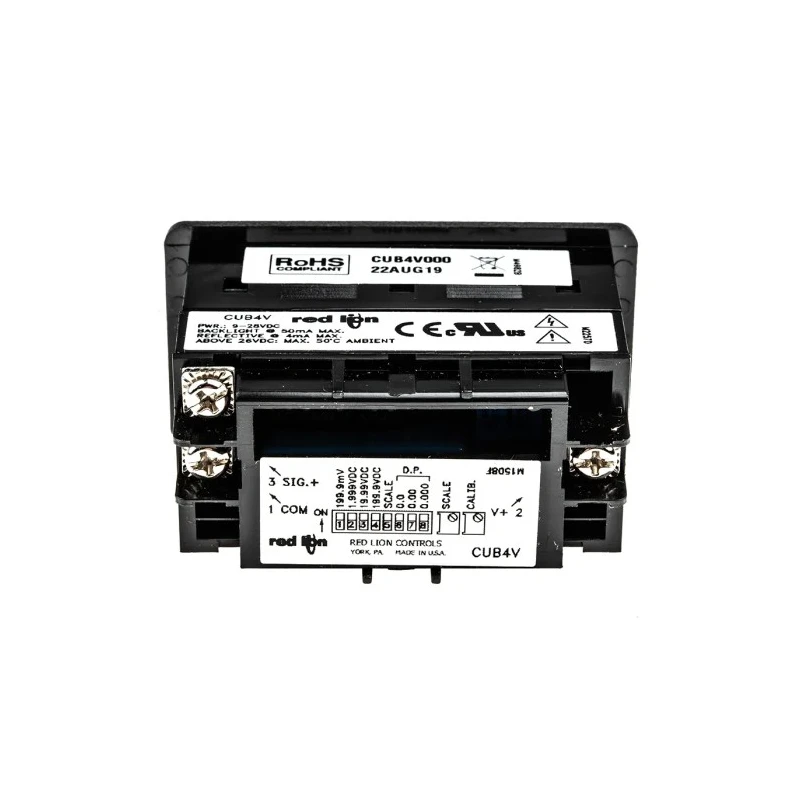

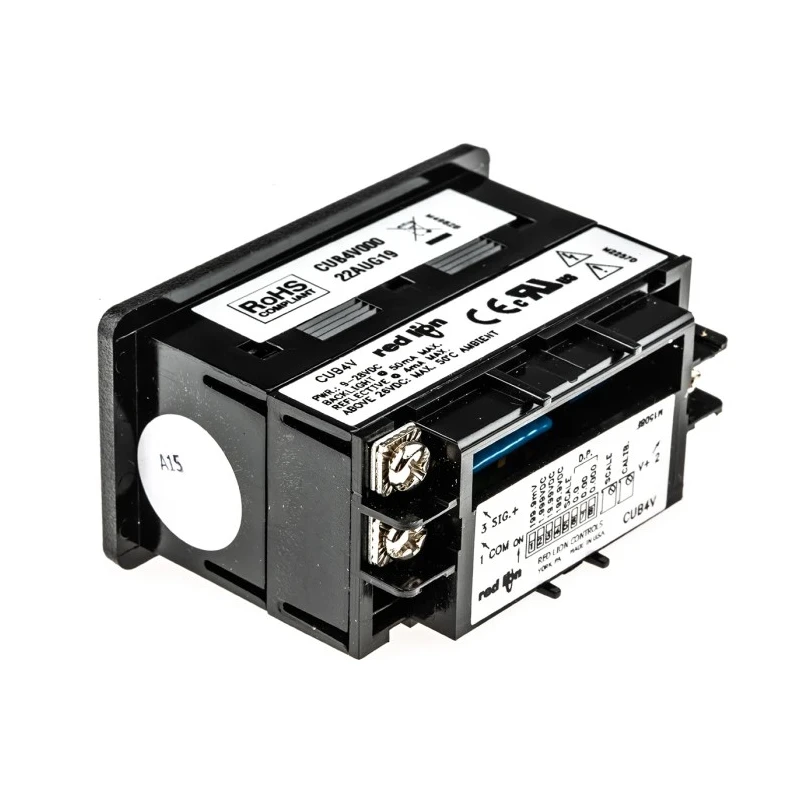

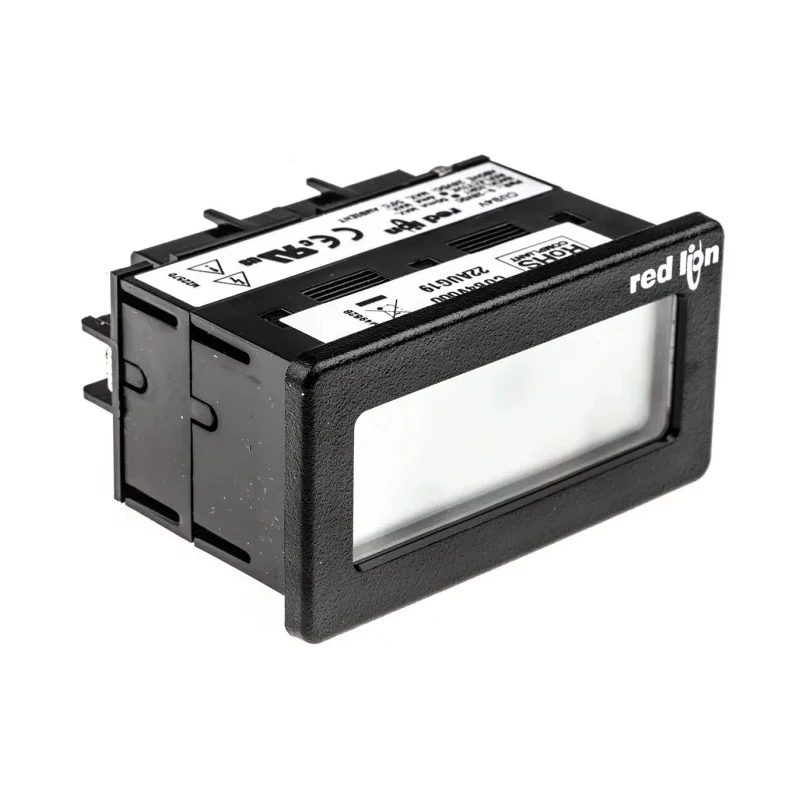

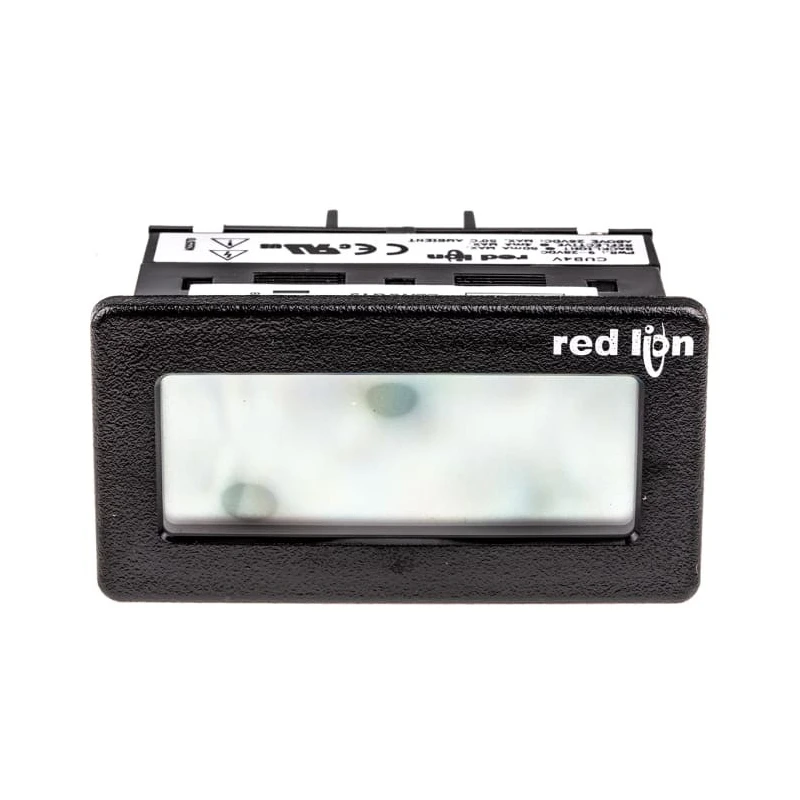

Red Lion Digital DC Voltmeter CUB4V000, LCD Display 3.5-Digits ±0.1 %, Cutout 68x33 mm, Depth 49.8 mm

Red Lion CUB4V000 Digital DC Voltmeter is a high-accuracy instrument designed for industrial and process control applications. It features a clear 3.5-digit LCD display with large 0.6 inch digits, providing easy and precise voltage measurement up to 199.9 V DC with ±0.1 % accuracy. The device fits standard panel cutouts measuring 68 mm wide by 33 mm high and is housed in a lightweight, impact-resistant plastic case, making it suitable for use in rugged industrial environments.

The voltmeter offers four selectable measurement ranges covering 0 mV to 199.9 V, allowing flexible application across low to mid-range DC signals. It employs an auto zeroing circuit and automatic offset correction to ensure stable and reliable readings during operation. Wiring is achieved using secure screw clamp type terminals, facilitating convenient installation and maintenance.

Operating comfortably between 0°C and 60°C, the instrument includes a DIP switch for selecting the decimal point and allows free scaling adjustments with a potentiometer for precise calibration. The front panel is rated NEMA 4X and IP65, providing dust and water resistance, which meets strict industrial protection requirements. Certifications include UL approval, CSA certification, CE marking, and cURus recognition, ensuring compliance with international safety and quality standards.

Optional accessory MLPS1000 micro line/sensor power supply can be installed at the rear, supporting input voltages from 85 VAC to 250 VAC and outputting the required 9 VDC to 28 VDC power for the voltmeter. Applications often include industrial process monitoring, laboratory instrumentation, automation systems, and electrical control panels where precise DC voltage measurement is critical.

Compact DIN standard panel cutout: 68 mm × 33 mm. Large digit height: 0.6 inch LCD display. Four selectable DC voltage ranges up to 199.9 V. Automatic offset correction and auto zeroing circuit. Screw clamp terminals for secure wiring.

Impact-resistant plastic case with clear window. Wide operating temperature: 0°C to 60°C. Certified to UL, CSA, CE, NEMA 4X/IP65 standards. Powered 9 to 28 VDC with optional micro line/sensor power supply. Selectable decimal points and potentiometer scaling.

This voltmeter is ideal for industrial, laboratory, and manufacturing environments requiring reliable and accurate DC voltage measurements. Browse EnvMart for additional process control instruments and Digital Voltmeters from top brands.
