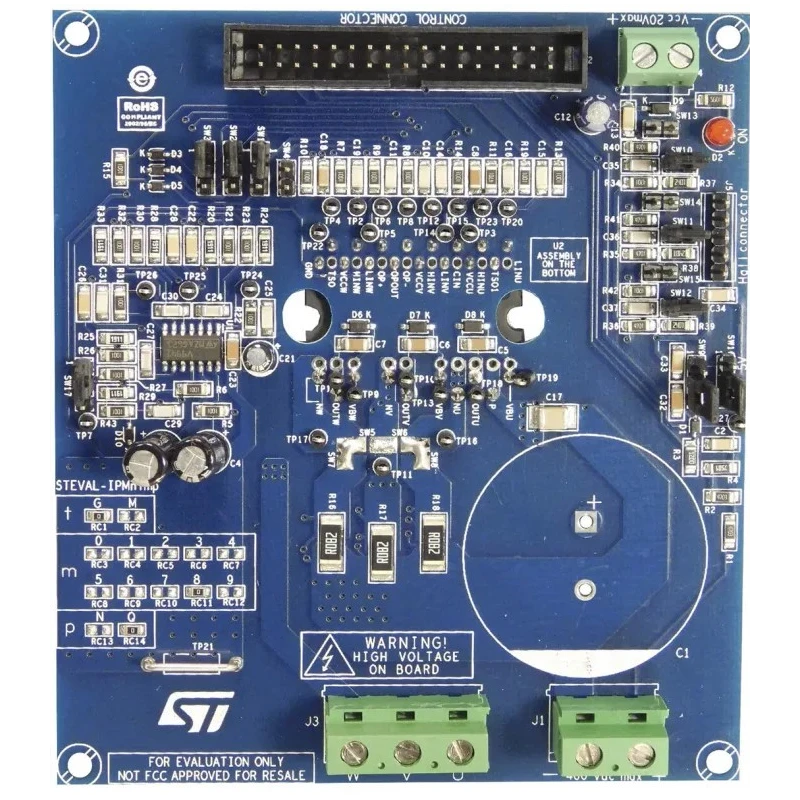

STMicroelectronics Motor Control Power Board Evaluation Board for ST Control Board Based on STM32 STEVAL-IPMNG8Q
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-IPMNG8Q |
| For Use With | ST Control Board Based on STM32 |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | STEVAL-IPMNG8Q |
| Kit Name | Motor Control Power Board |
| Three options for current sensing | dedicated external op-amps, internal SLLIMM-nano op-amp (single) or via MCU |
Key Features
- The board features a compact design based on SLLIMM-nano 2nd series module for high efficiency.
- Supports single- or three-shunt resistor current sensing with multiple options for sensing implementation.
- Includes overcurrent hardware protection and IPM temperature monitoring for safety.
- Compatible with Hall sensor or encoder inputs for precise motor control feedback.
- Ideal for applications including power white goods, air conditioning, compressors, power fans, and three-phase inverters.
Product Description
STMicroelectronics STEVAL-IPMNG8Q is a motor control power board evaluation board specifically designed for use with ST Control Board based on STM32. This compact board incorporates the advanced SLLIMM-nano (small low-loss intelligent molded module) 2nd series product STGIPQ8C60T-HZ, delivering efficient and reliable high power motor driving capabilities.
The design emphasizes a small form factor, minimal bill of materials, and high efficiency, making it a cost-effective solution for a wide range of industrial and commercial motor applications. It supports current sensing via single- or three-shunt resistors, and offers three sensing modes: dedicated external operational amplifiers, internal SLLIMM-nano op-amps, or MCU-based sensing, enabling flexible integration.
Safety is enhanced with built-in overcurrent hardware protection and IPM temperature monitoring and protection, ensuring durability and reliability under demanding operational conditions. Additionally, the motor control power board accepts inputs from Hall sensors or encoders, providing precise motor position feedback necessary for sophisticated control.
This Evaluation Board is suitable for driving motors in various power white goods, air conditioning systems, compressors, power fans, and generic three-phase inverter motor drives. It provides a practical platform for development and testing of motor control solutions in industrial, HVAC, manufacturing, and power electronics applications.
The board is based on ST's innovative SLLIMM-nano technology for compact and low-loss power modules. Current sensing flexibility with hardware and software options supports diverse application requirements. Robust hardware protections improve safety and operational life.
Supports integration with various motor feedback sensors for precise control. Applicable across multiple industrial motor drive segments including white goods and HVAC systems.
Choose this STEVAL-IPMNG8Q motor control power board for efficient development of motor drive solutions leveraging STMicroelectronics technology. Explore more electronic and power management products with EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board is designed for motor control applications, including power white goods, air conditioning systems, compressors, power fans, and three-phase inverters.
It supports three options for current sensing: dedicated external operational amplifiers, internal SLLIMM-nano op-amps, or MCU-based sensing, allowing for flexible integration.
The board includes built-in overcurrent hardware protection and IPM temperature monitoring to enhance safety and reliability during operation.
The country of origin for this evaluation board is India.
It is specifically designed for use with the ST Control Board based on STM32.
The STEVAL-IPMNG8Q is classified as an Evaluation Board, suitable for testing and development purposes.
This model complies with RoHS standards, ensuring it meets environmental safety regulations.
The featured device in this evaluation board is the STGIPQ8C60T-HZ, part of the SLLIMM-nano 2nd series product line.
The specific dimensions of the evaluation board are not provided in the available data.
It accepts inputs from Hall sensors or encoders, which provide precise motor position feedback necessary for sophisticated control.
The design emphasizes a small form factor, minimal bill of materials, and high efficiency, making it a cost-effective solution for various applications.
This evaluation board is suitable for driving motors in various industrial and commercial applications, including HVAC systems and manufacturing processes.
