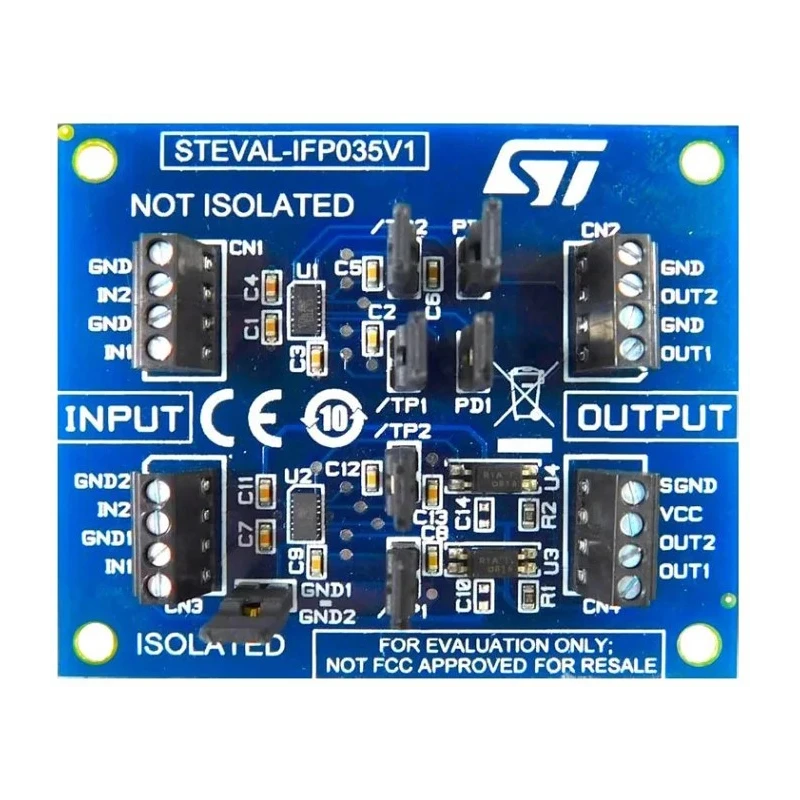

STMicroelectronics Isolated and Non-Isolated Digital Inputs on Evaluation Board Based on CLT03-2Q3 STEVAL-IFP035V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-IFP035V1 |
| Kit Classification | Evaluation Board |
| Featured Device | CLT03-2Q3 |
Key Features
- The board integrates two CLT03-2Q3 self-powered digital input current limiters with isolated channels.
- Supports both isolated opto-coupler and non-isolated LVTTL digital input terminations.
- Designed to reduce power dissipation and enhance electromagnetic interference robustness.
- Allows for safer operation with improved reliability in industrial sensor and PLC interfaces.
- Includes jumper settings to generate test pulses for functional verification.
- Meets industry requirements including reverse polarity operation and one-minute overvoltage tolerance.
- Ideal for evaluating digital input current limiting strategies in factory automation applications.
Product Description
STMicroelectronics STEVAL-IFP035V1 evaluation board is designed for industrial and factory automation engineers to assess circuit protection techniques using digital input current limiters based on the CLT03-2Q3 self-powered device.
The evaluation board contains two independent current limiters, each with two isolated channels. These isolated channels can directly drive isolated opto-coupler inputs or non-isolated LVTTL digital terminations. The devices feature low power dissipation and increased electromagnetic interference (EMI) immunity, enhancing system reliability and operator safety.
This board provides designers with a practical platform to develop high-density I/O modules for programmable logic controllers (PLCs) and other processing units connected to industrial sensors. It complies with reverse polarity protections and tolerates transient overvoltages lasting up to one minute, critical for robust industrial environments.
Included jumpers enable generation of test pulses on any input line to easily verify device operation and test system responses under simulated fault conditions. This flexibility facilitates thorough testing and debugging during product development.
The STEVAL-IFP035V1 evaluation kit is manufactured in Italy and primarily targets power, motor, and robotics development tools applications, making it suitable for industrial, commercial, and laboratory uses in automation and control systems.
The board integrates dual channels of CLT03-2Q3 self-powered digital current limiters. Supports isolated opto-coupler and non-isolated LVTTL digital inputs for versatile interfacing. Features improved EMI robustness and power efficiency.
Provides reverse polarity protection for safe operation in harsh industrial environments. Includes high transient tolerance with one-minute overvoltage endurance. Offers jumper-configured test pulse generation for functional testing.
Enables cost-effective, high-density PLC input module development.
For engineers and developers working within factory automation, robotics, and control systems, this Evaluation Board offers comprehensive support for advanced digital input protection and system validation. Explore more power management and development tools on EnvMart's platform for innovative industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board is designed to assess circuit protection techniques using digital input current limiters based on the CLT03-2Q3 self-powered device, specifically for industrial and factory automation applications.
It integrates two independent current limiters, each with two isolated channels, allowing for versatile interfacing options.
The board supports both isolated opto-coupler and non-isolated LVTTL digital input terminations, providing flexibility for various applications.
It features reverse polarity protection and can tolerate transient overvoltages lasting up to one minute, enhancing safety and reliability in harsh conditions.
The jumper settings allow for the generation of test pulses on any input line, facilitating functional verification and testing of system responses under simulated fault conditions.
This evaluation board is manufactured in Italy, ensuring compliance with industry standards and quality.
The featured device in this evaluation board is the CLT03-2Q3, which serves as the basis for the digital input current limiters.
It primarily targets power, motor, and robotics development tools applications, making it suitable for industrial, commercial, and laboratory uses in automation and control systems.
Key benefits include improved electromagnetic interference (EMI) robustness, low power dissipation, and enhanced reliability for industrial sensor and PLC interfaces.
The kit classification of this product is an evaluation board, specifically designed for testing and evaluating digital input current limiting strategies.
This capability allows for safer operation and improved reliability in industrial sensor and PLC interfaces, which is critical for effective automation systems.
It enhances system reliability through features such as improved EMI immunity and the ability to handle reverse polarity and overvoltage conditions, which are essential in industrial applications.
