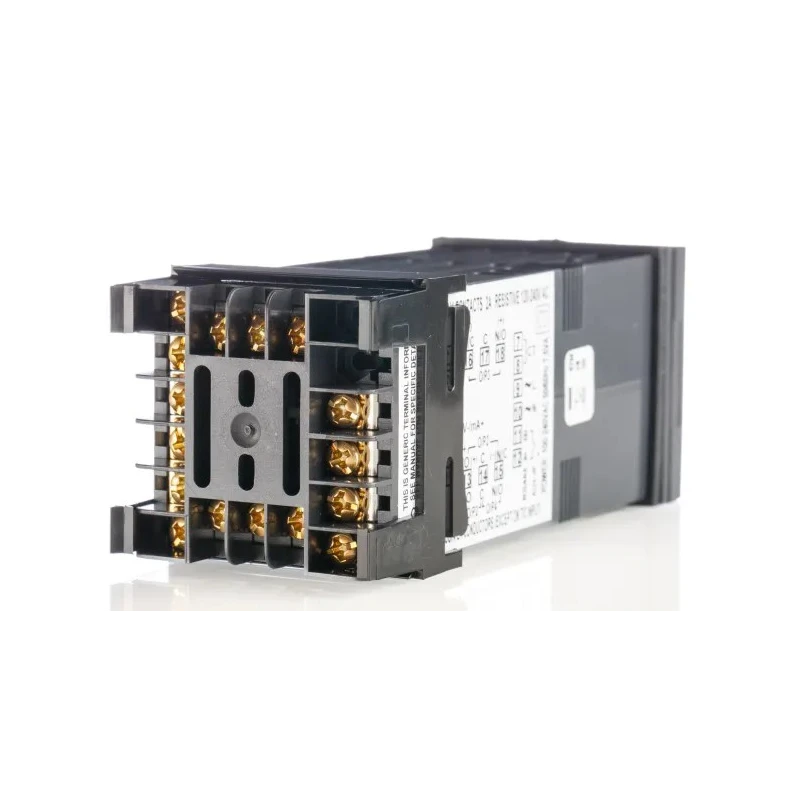

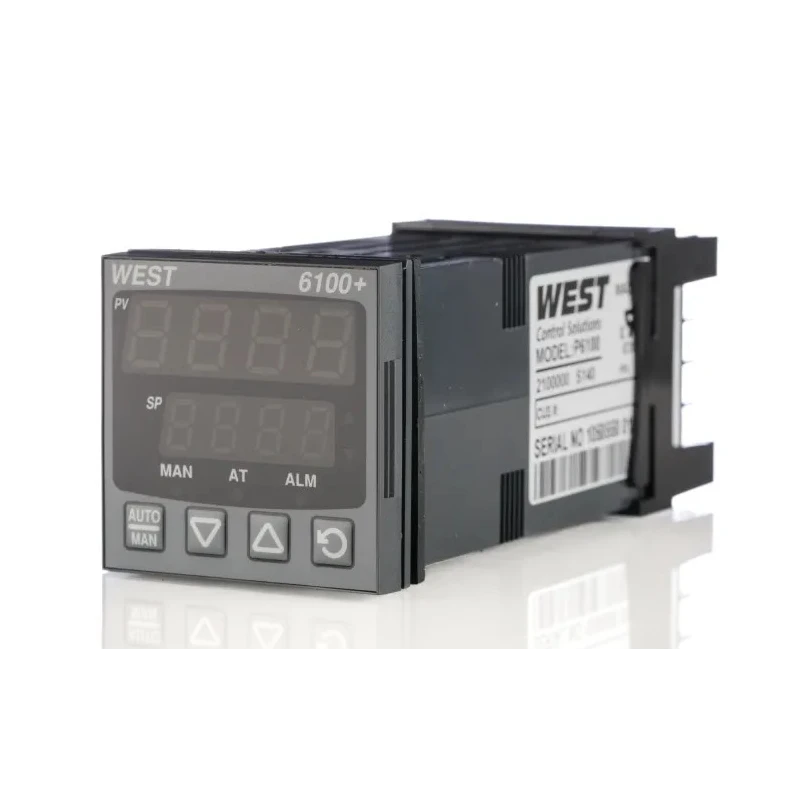

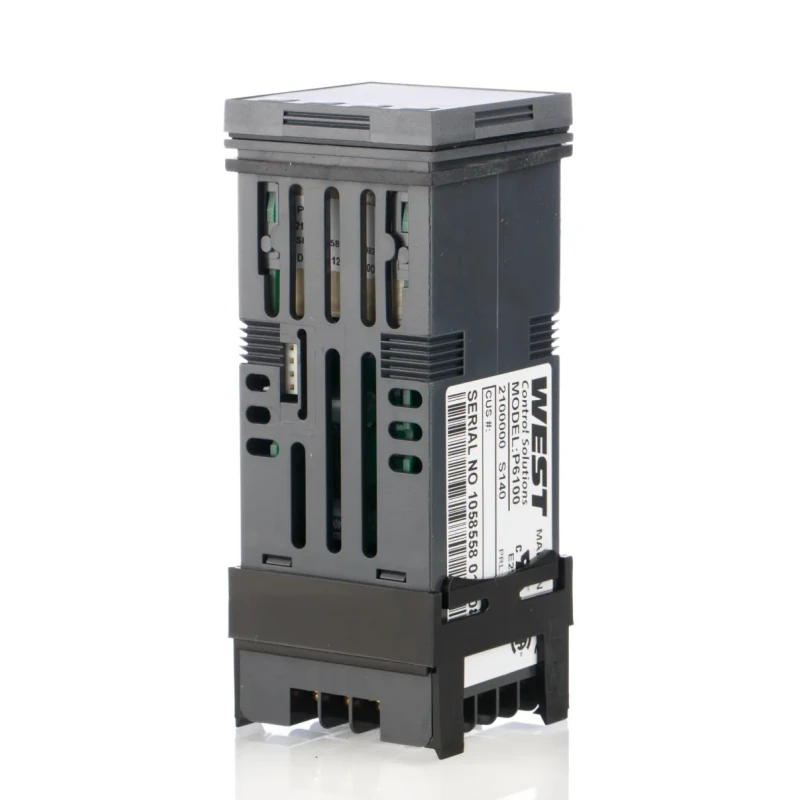

West Instruments DIN Rail PID Temperature Controller, 1 Output Relay, 65V ac/dc On-Off P6100-2100-02-0

West Instruments P6100-2100-02-0 is a reliable and versatile DIN Rail PID Temperature Controller designed for industrial and process control applications requiring accurate temperature regulation. This model features a single relay output and supports On-Off control type, making it suitable for both heating and cooling scenarios.

It operates within a supply voltage range of 24 to 48 V ac/dc, with a maximum supply voltage rating of 65 V ac/dc. The controller accepts a single thermocouple input compatible with types J, K, R, S, T, B, L, and N, providing flexibility in sensor choice.

The unit comes with an easy-to-read LED display offering dual 4-digit readout and multiple indicators, ensuring clear visibility of the process and setpoint values. RS485 digital communication enables remote monitoring and integration within larger automation systems.

The P6100-2100-02-0 is designed with IP20 and IP66 rated facia, giving dust and water resistance suitable for harsh industrial environments. Its compact form factor - 48 mm length, 24 mm width, and 120 mm panel depth - allows for easy DIN rail mounting installation into existing control panels.

This controller provides advanced functions such as auto/manual tuning, ramping setpoints, and the ability to configure parameters via a PC interface, boosting ease of use and customization. It also includes two process alarms and loop alarm functions for comprehensive process management.

Single relay output with On-Off control suitable for heating and cooling. Compatible with multiple thermocouple types supporting broad sensing solutions. LED display with 4-button operation and clear dual readouts. RS485 interface for process integration and communication.

IP66 rated front panel ensuring durability in dusty and wet environments. Compact 1/16 DIN size designed for quick DIN rail installation. Conforms to CE, UL, and ULC standards for safety and quality.

This West Instruments PID temperature controller is ideal for industrial automation, laboratory equipment, HVAC systems, manufacturing process control, and water treatment applications requiring reliable temperature management. The device’s robustness and versatile communication options provide precision control, enhanced safety, and operational efficiency.
