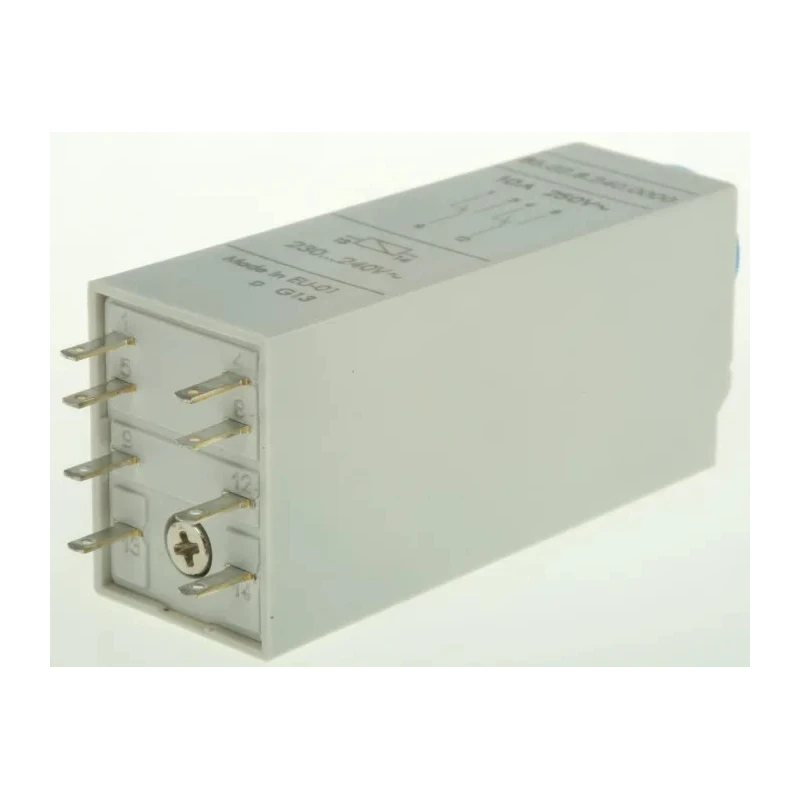

Finder 85 Series Snap-On Timer Relay, 2-Contact, DPDT, 110 to 125 V DC, 230 to 240 V AC, Time Range 0.05 s 85.02.8.240.0000

Finder 85.02.8.240.0000 is a multifunction snap-on timer relay designed to provide precise and flexible timing control in various electrical automation and control systems. Its dual-pole double throw (DPDT) contact configuration supports a maximum contact current of 10 A and a switching voltage of up to 400 V AC, making it suitable for robust industrial, HVAC, manufacturing, and commercial applications.

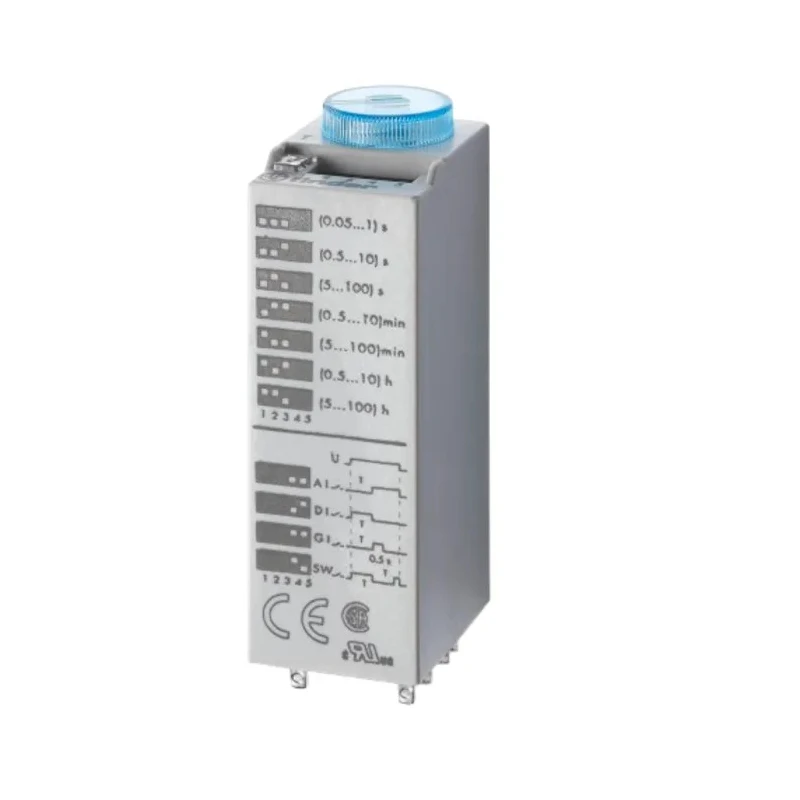

The relay supports multiple timing modes, including interval timing, ON delay, and pulse delay, with an adjustable time range that spans from 0.05 seconds up to 100 hours. This wide range enables customization to fit different operational requirements such as sequencing, delayed switching, or pulse generation.

Designed for snap-on rail mounting, the device allows secure and convenient installation into existing control panels or automation setups. It accommodates supply voltages from 110 to 125 V DC as well as 230 to 240 V AC, providing versatility for use in both AC and DC control circuits.

The timer relay features solid silver nickel contacts that enhance durability and longevity, supporting frequent switching and heavy load applications. Its IP40 rating provides suitable protection in indoor electrical control environments, while the operating temperature range from -20°C to 60°C ensures stable performance across typical industrial temperature conditions.

Dimensions measuring 59.5 mm in length, 27.7 mm in height, and 20.6 mm in width offer a compact form factor for space-constrained control panels. The relay complies with multiple international standards and approvals including EN 61000 series, CSA, UL, VDE, and EN 55022, assuring quality and reliability for industrial use.

Provides multifunction timing modes including interval, ON delay, and pulse delay. Time range adjustable from 0.05 seconds to 100 hours for precision control. Equipped with dual-pole double throw (DPDT) contacts supporting 10 A maximum contact current.

Features snap-on mounting for quick and secure installation on standard rails. Compatible with both AC and DC supply voltages of 110-125 V DC and 230-240 V AC. Rated for switching voltage up to 400 V AC and IP40 protection.

Operating temperature range from -20°C to 60°C ensures reliable performance in varied environments. Compact dimensions: 59.5 mm length, 27.7 mm height, and 20.6 mm width.

Ideal for electrical control, industrial automation, motor control, HVAC systems, lighting control, and manufacturing machinery sequencing, this timer relay is a reliable component for diverse timing needs. For detailed selection and application guidance, explore the Timer Relays category on EnvMart.
