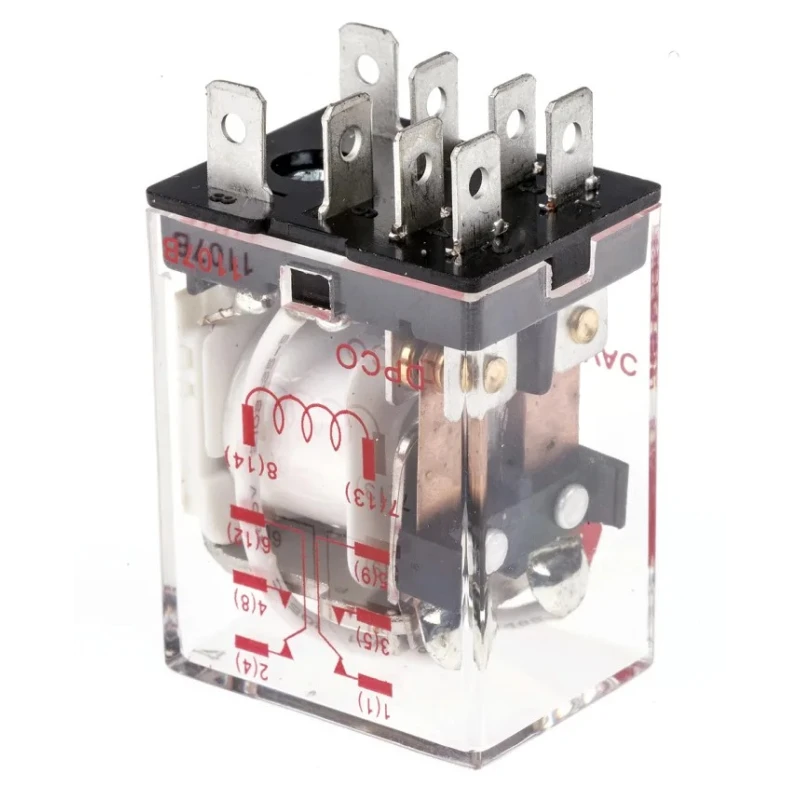

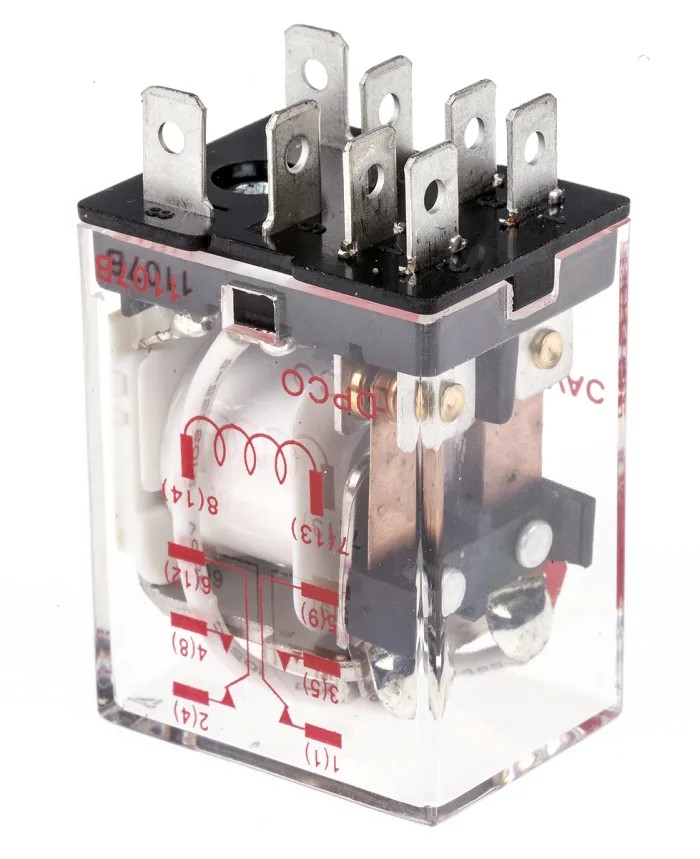

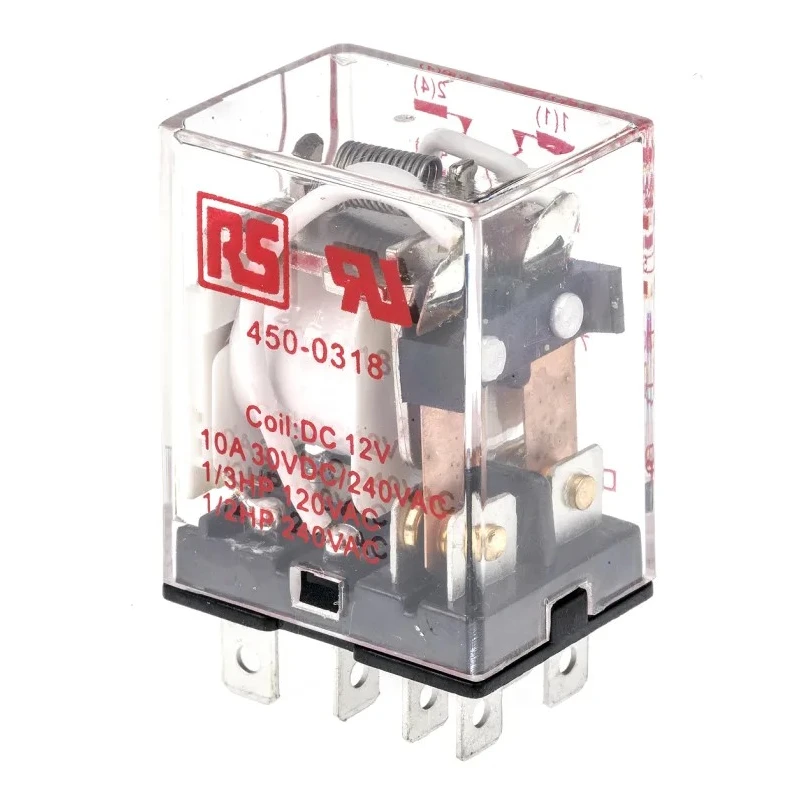

RS PRO Plug-in Power Relay 12V dc Coil 10A Switching Current DPDT 900mW Coil Power 450-0318
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 36mm |
| Length | 28mm |
| Model | 450-0318 |
| Width | 21.5mm |
| Mount Type | Plug-in |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, EN, UL |
| Coil Resistance | 160Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 900mW |
| 10A DPCO RELAY 12VDCBrand | Idec |
Key Features
- Double pole double throw (DPDT) configuration allowing control of two separate circuits.
- 12V dc coil voltage with coil power consumption of 900mW.
- Plug-in mounting and terminal type for easy installation and replacement.
- Switching capacity up to 10A with 240V AC and 30V DC maximum voltages.
- Operates reliably in temperatures from -45°C to +70°C.
- Silver alloy contacts ensure high durability and low contact resistance.
- Compact size with dimensions 28mm x 36mm x 21.5mm (LxHxW).
- Mechanical life expectancy of approximately 10 million cycles.
Product Description
RS PRO 450-0318 Plug-in Power Relay features a 12V dc coil and supports 10A switching current with a double pole double throw (DPDT) contact configuration. It is a non-latching relay designed for reliable electrical switching applications, particularly suitable for push-button operations.
The relay's silver alloy contacts provide enhanced durability and reduced contact resistance, which contributes to its long functional life. It boasts a mechanical endurance of around 10 million cycles and an electrical endurance of 100,000 cycles, making it a trustworthy component for industrial, automotive, and control circuit applications.
Designed for easy installation, the relay incorporates a plug-in mounting type with plug-in terminals for quick replacement and maintenance. Its compact dimensions of 28mm length, 36mm height, and 21.5mm width allow integration into constrained spaces.
Operating across a wide temperature range of -45°C to 70°C, the relay can function effectively in various environmental conditions. Maximum switching power is rated at 2.4 kVA (AC) and 300W (DC), supporting loads up to 240V AC and 30V DC respectively.
The coil draws 900mW power with a coil resistance of 160 ohms, and the isolation between coil and contacts is rated at 1.5 kV AC, making it safe for electrical isolation and performance.
Double pole double throw (DPDT) configuration for versatile circuit switching. Silver alloy contacts for durability and reliable conduction. Plug-in mounting type for simple and fast installations. Extensive mechanical and electrical lifetime for longevity.
Wide operating temperature range for diverse applications. High switching power supports various industrial loads. Compact dimensions allow for space-efficient setups. Isolation rating ensures electrical safety and robustness.
This Power Relay is ideal for automation, control systems, and electrical circuit applications requiring reliable and durable switching capability. Browse the RS PRO selection on EnvMart for more electrical and relay components that meet industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of up to 10A.
It operates with a 12V dc coil voltage and has a coil power consumption of 900mW.
The maximum switching voltage is 240V AC and 30V DC.
It features a double pole double throw (DPDT) contact configuration.
The relay has dimensions of 28mm in length, 36mm in height, and 21.5mm in width.
It operates reliably in temperatures ranging from -45°C to +70°C.
This model utilizes a plug-in mounting type for easy installation.
The mechanical life expectancy is approximately 10 million cycles.
The contacts are made of silver alloy, which enhances durability and reduces contact resistance.
The isolation between the coil and contacts is rated at 1.5 kV AC.
It complies with CE, EN, and UL standards.
This relay is suitable for automation, control systems, and electrical circuit applications requiring reliable switching capability.
