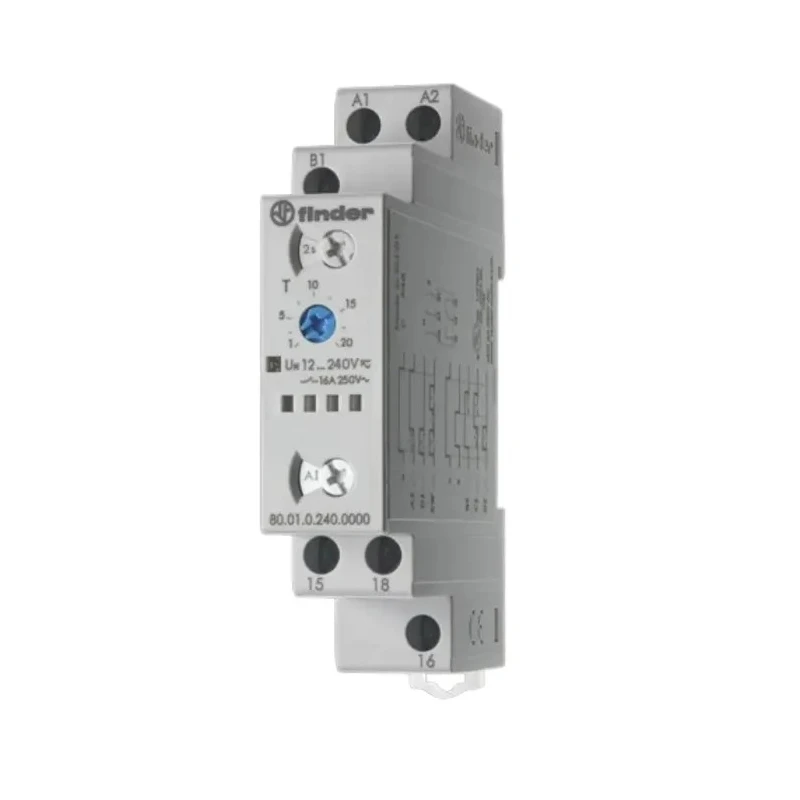

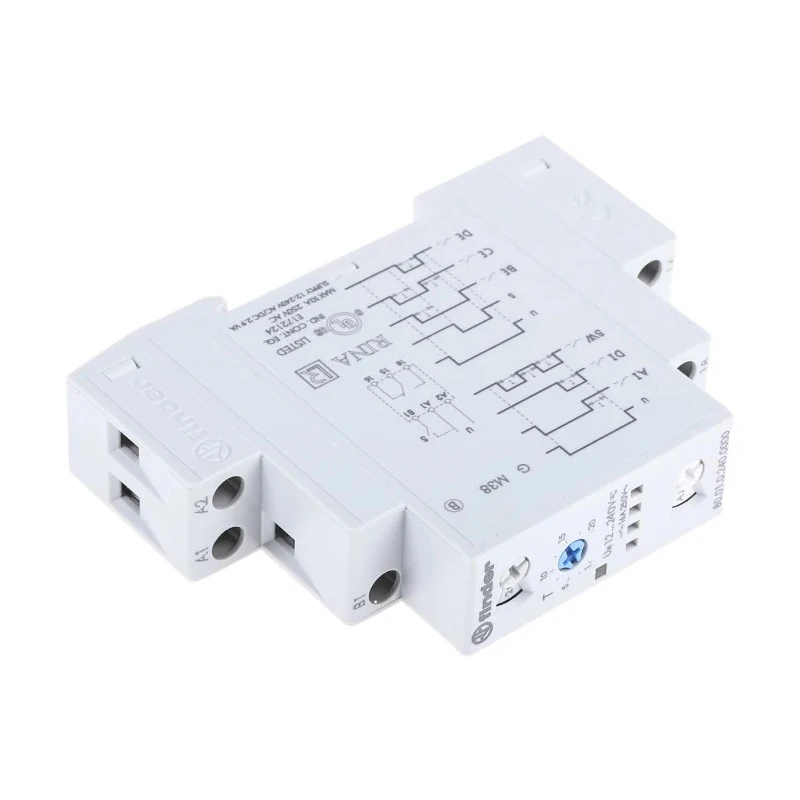

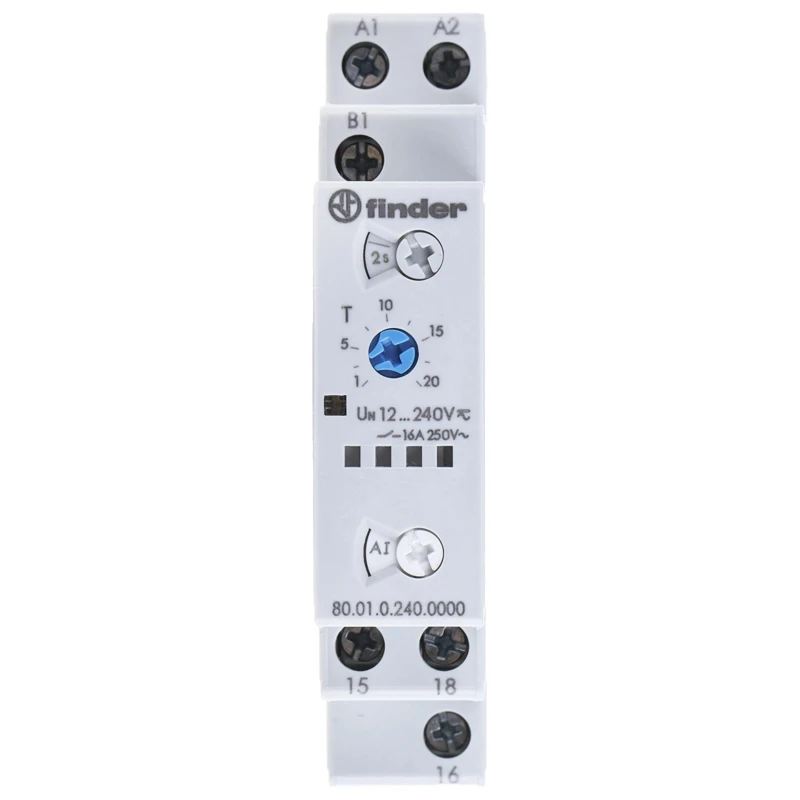

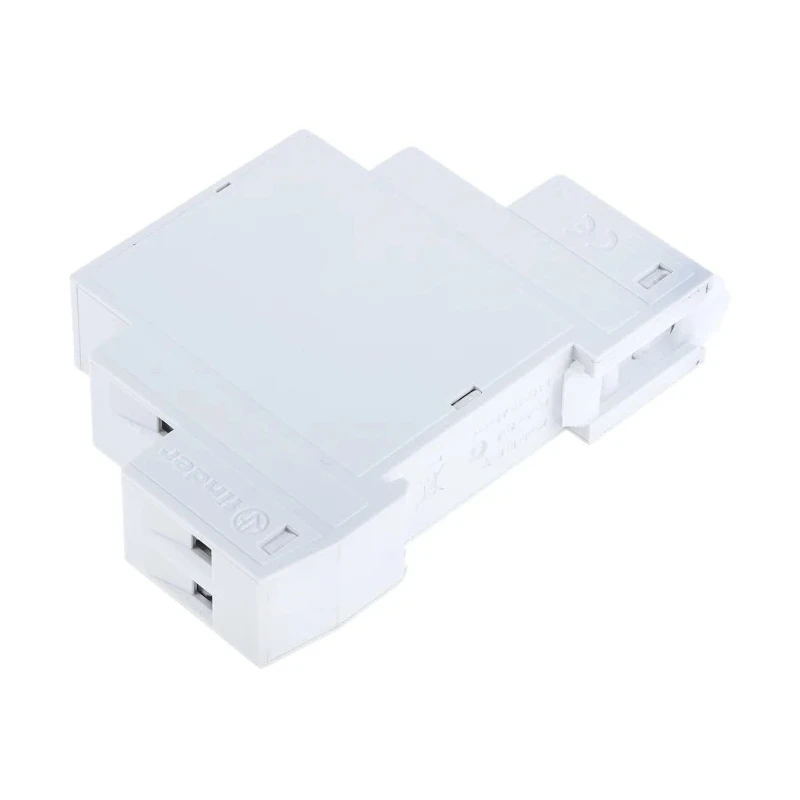

Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Previous
Next
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Share
Facebook Twitter Pinterest Tumblr
Free Delivery in India | Lowest Global Shipping Charges
24/7 Customer Support
24/7 Customer Support

Shop with confidence knowing that our 24/7 Customer Support is always available to assist with any inquiries

24/7 Customer Support
Save up to 28% with GST Input

Avail maximum benefits from input tax mechanism on all your Business Invoices. Get GST Invoices on your business purchases. And 0% Taxes on all worldwide deliveries

Lowest Price Challenge
# Lowest Price Challenge

If you find this product anywhere at lower cost than us. Call us and we will not only match the price but also give a complimentary coupon

Lowest Price Challenge
100% Original Products

Shop with assurance, as each product we offer is 100% original, ensuring quality and authenticity with every purchase

Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000

Category Timer Relay Brand FINDER Condition New

Specifications

Country of Origin Italy
Brand Finder
Height 60.8mm
Function Multifunction
Length 84mm
IP Rating IP20
Mode Multifunction
Width 17.5mm
Mount Type DIN Rail
Series 80
Maximum Operating Temperature 50°C
Contact Configuration SPDT
Minimum Operating Temperature -10°C
Terminal type Screw
Standards/Approvals RoHS
Number of Contacts 1
Number of Timer Functions Multifunction
Contact Current 16A
Supply DC Voltage 12 to 240 V ac/dc
Supply AC Voltage 12, 240V ac
SPST 4 function timer,0.75sec-1hrBrand Saia-Burgess
SPDT 4 function timer,0.05-10hrBrand Saia-Burgess

Key Features

  • Supports supply voltage range of 12 to 240 V AC/DC for flexible installation.
  • Multifunction timer with adjustable time ranges from 0.1 seconds to 24 hours.
  • Compact design with DIN rail mount for easy panel integration.
  • Durable silver cadmium oxide contacts rated for 16 A current capacity.
  • Operating temperature range from -10°C to +50°C for reliable performance.
  • Screw terminal type ensures secure electrical connections.
  • IP20 rated for indoor use, protecting from dust and limited contact.
  • Suitable for industrial automation and control of elevators, hoists, and building automation.

Product Description

Finder 80 Series timer relay model 80.01.0.240.0000 is a multifunction DIN rail relay that provides precise timing control in electrical automation systems. Operating with a supply voltage from 12 to 240 V AC/DC, it accommodates diverse industrial voltage requirements. The relay features a single SPDT contact capable of carrying up to 16 A, enabling reliable switching for various loads.

Its multifunction timer offers adjustable delay times ranging from very short (0.1 seconds) to extended periods (up to 24 hours), affording great flexibility in timing control applications. The screw terminal mounting simplifies installation and wiring, and the compact dimensions (84 mm length, 17.5 mm width, 60.8 mm height) allow efficient use of panel space.

This relay is constructed with silver cadmium oxide contacts for enhanced durability and switching performance. Rated IP20, it is suitable for indoor environments and enclosed control systems, protecting against accidental contact and dust ingress. Operating temperature from -10°C to +50°C ensures stable operation across common industrial ambient conditions.

Typical industrial applications include control of elevators, lifts, hoists, cranes, door and gate openers, and automated building systems for shading and lighting control. The relay improves operational efficiency and safety in electrical distribution panels and automated mechanical systems.

Supports 12 to 240 V AC/DC supply voltage range. Multifunction timer with timing ranges from 0.1s to 24h. Single SPDT contact rated at 16 A. Compact DIN rail design with screw terminals. Operational temperature range -10°C to +50°C.

Durable silver cadmium oxide contacts. Rated IP20 suitable for indoor use. Ideal for industrial automation, building controls, and machinery operation.

For detailed installation and configuration, refer to the wiring diagrams and technical documentation provided by Finder. This reliable timer relay is essential for enhanced automation and control in industrial electrical and mechanical systems.

Discover more products in the Timer Relay category on EnvMart to complement your control and automation needs.

Finder 80 Series Multifunction DIN Rail Timer Relay, 1-Contact SPDT, 12 to 240 V AC/DC, 0.1 to 20 min, 0.1 80.01.0.240.0000
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It supports a supply voltage range of 12 to 240 V AC/DC, accommodating various industrial voltage requirements.

The multifunction timer offers adjustable delay times ranging from 0.1 seconds to 24 hours, providing flexibility for timing control applications.

The single SPDT contact is rated for a maximum current capacity of 16 A, enabling reliable switching for various loads.

The dimensions are 84 mm in length, 17.5 mm in width, and 60.8 mm in height, allowing efficient use of panel space.

It features a DIN rail mount design, simplifying installation and integration into electrical panels.

It uses screw terminals, ensuring secure electrical connections during installation.

The operating temperature range is from -10°C to +50°C, ensuring stable performance across common industrial conditions.

It is rated IP20, making it suitable for indoor use and protecting against dust and limited contact.

Typical applications include control of elevators, lifts, hoists, cranes, and automated building systems for shading and lighting control.

This timer relay is compliant with RoHS standards, ensuring it meets environmental regulations.

The contacts are constructed from durable silver cadmium oxide, enhancing switching performance.

This model features multifunction capabilities, allowing for multiple timer functions to be utilized as needed.
