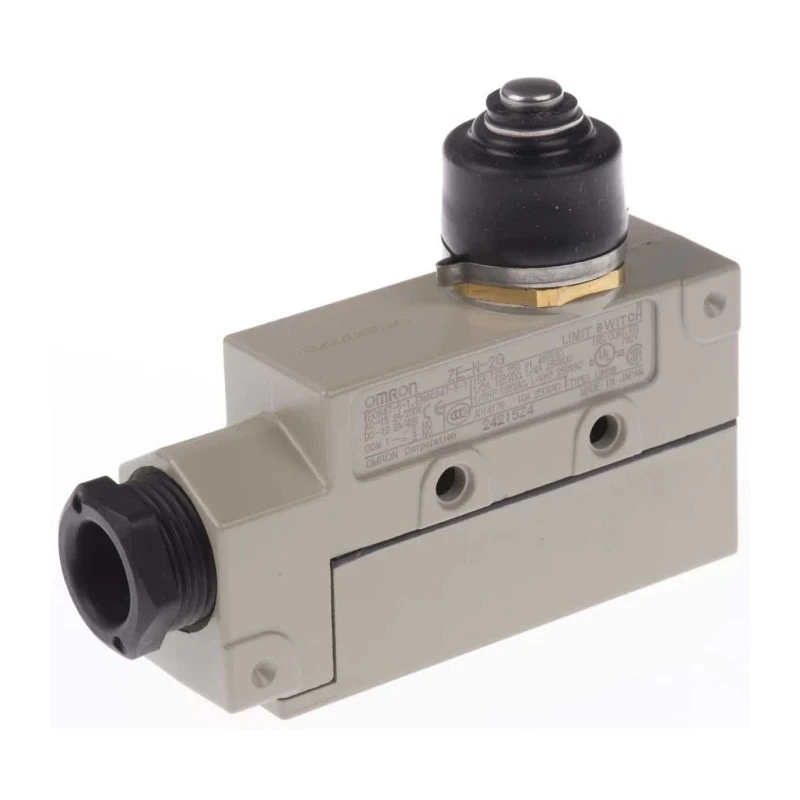

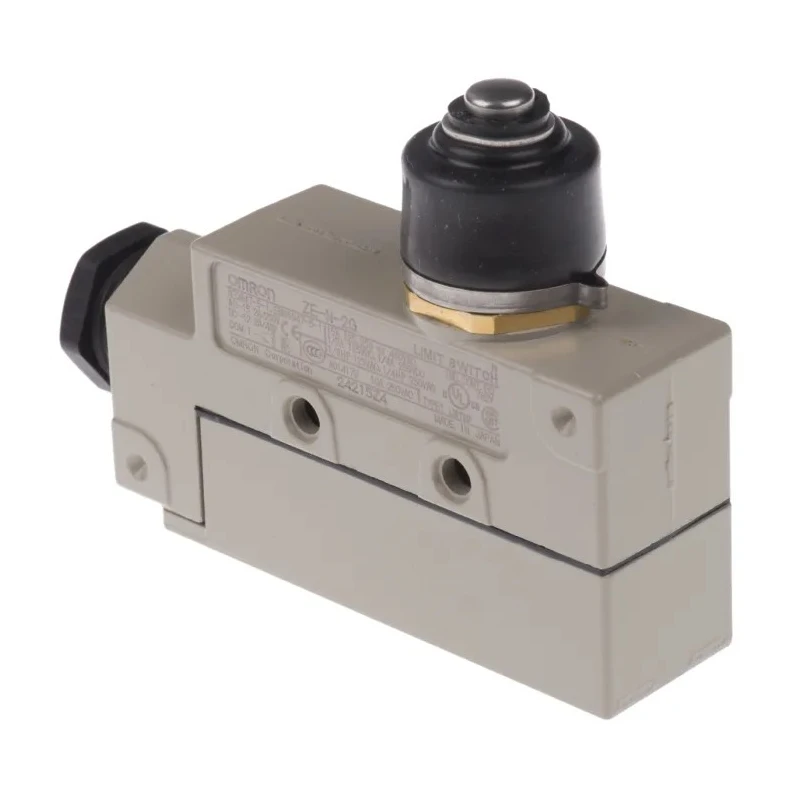

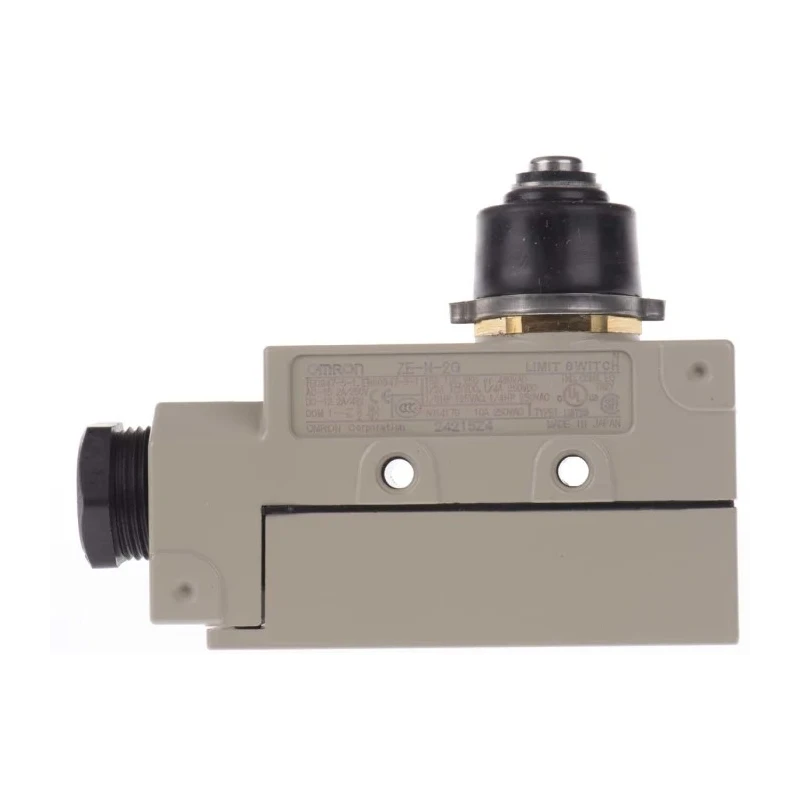

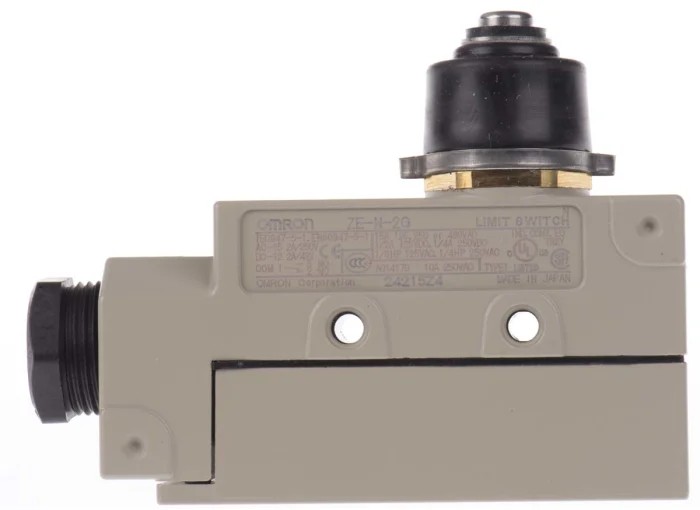

Omron ZE Series Plunger Limit Switch SPDT IP65, 480V AC, 15A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Length | 71.3mm |
| Model | IP65 |
| Depth | 25.4mm |
| IP Rating | IP65 |
| Width | 86mm |
| Series | ZE |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Side |
| Contact Configuration | SPDT |
| Actuator Type | Plunger |
| Minimum Operating Temperature | -10°C |
| Switching Current | 15A |
| Connection Method | screw terminals |
| Terminal type | Screw |
| Standards/Approvals | CCC, cULus, CE |
| Operating Force | 7.85N |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 480V ac |
Key Features
- Equipped with a plunger actuator type for precise position detection.
- IP65 protection ensures resistance against dust and water jets from all directions.
- Supports switching currents up to 15A and switching voltages of 480V AC and 250V DC.
- Mechanical life rated for over 10 million operations for long-term durability.
- Compact size with dimensions 71.3mm (L) x 86mm (W) x 25.4mm (D) suitable for tight industrial setups.
- Operates reliably in temperatures from -10°C up to 80°C for harsh environments.
- Side mounting orientation with screw terminals for secure electrical connections.
- Features SPDT contact configuration offering normally open and normally closed contacts.
Product Description
Omron ZE-N-2G is a high-quality plunger limit switch designed for industrial automation and control applications. Rated IP65, it is dust-tight and resistant to water jets, ensuring durability and reliability in challenging factory environments.
The switch features a SPDT contact configuration with a switching current capability of 15A and can handle AC voltage up to 480V and DC voltage up to 250V, making it suitable for a wide range of electrical loads.
Its snap-action mechanism provides rapid response times of up to 0.5 ms, allowing precise control in systems requiring frequent and fast switching operations. The mechanical lifespan exceeding 10 million cycles guarantees consistent performance over extended periods.
With compact dimensions (71.3 mm length, 86 mm width, and 25.4 mm depth) and side mounting orientation, the ZE-N-2G fits efficiently into space-constrained control panels and assemblies. The screw terminal connections ensure secure and straightforward wiring.
Operating reliably from -10°C to 80°C, this limit switch copes well with temperature variations common in manufacturing and processing environments.
Applications include robotics systems, FMCG manufacturing, processing and packaging machinery, conveyor systems, and other material handling equipment requiring reliable limit position detection and motion control.
Plunger actuator with SPDT contact configuration supports diverse switching needs. Durable die-cast alloy construction ensuring high mechanical integrity and long lifespan. IP65 enclosure keeps the switch protected from dust and water ingress.
Meets international standards including CCC, cULus, and CE for safety and quality. Screw terminal connection for secure electrical contacts and easy installation.
This limit switch ensures precise and dependable operation in automation setups, supporting safety and process control requirements in industrial and manufacturing applications. Browse more Limit Switches and industrial electrical components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 15A and can handle AC voltage up to 480V and DC voltage up to 250V.
The mechanical life of this limit switch is rated for over 10 million operations, ensuring long-term performance.
It has compact dimensions of 71.3mm in length, 86mm in width, and 25.4mm in depth, making it suitable for tight industrial setups.
The switch has an IP65 rating, which means it is dust-tight and resistant to water jets from all directions.
It operates reliably in temperatures ranging from -10°C to 80°C, accommodating various industrial environments.
This limit switch features a plunger actuator type, which allows for precise position detection.
It features a Single Pole Double Throw (SPDT) contact configuration, providing both normally open and normally closed contacts.
It uses screw terminal connections for secure and straightforward wiring, facilitating easy installation.
This limit switch meets international standards including CCC, cULus, and CE for safety and quality assurance.
The operating force for this model is 7.85N, which is necessary for its actuation.
It is designed for side mounting orientation, which is suitable for various installation scenarios in control panels.
It is suitable for applications such as robotics systems, FMCG manufacturing, processing and packaging machinery, and conveyor systems.
