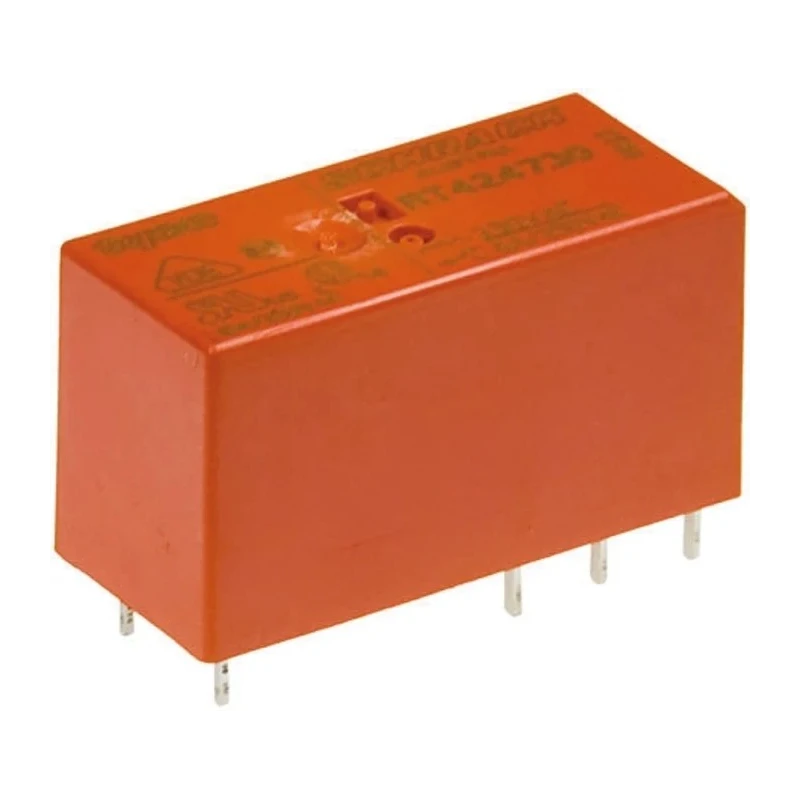

TE Connectivity Non-Latching PCB Power Relay 230V AC Coil 8A Switching Current DPDT RT424730 7-1393243-9
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424730 7-1393243-9 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
Key Features
- This relay features silver nickel alloy contacts ensuring reliable conductivity and durability.
- It operates under temperatures ranging from -40°C to 70°C, suitable for a wide range of industrial and automation environments.
- The coil resistance is 32.5 kΩ, providing efficient energy consumption during operation.
- Pin configuration is designed for solder mounting on PCBs with a 5 mm pin pitch for secure installation.
- The relay switches up to 400V AC voltage and supports a switching power of 2 kVA.
- Its compact dimensions measure 29 mm length, 15.7 mm height, and 12.7 mm width, making it suitable for compact PCB layouts.
- This product meets certification standards including cULus and VDE, ensuring safety and compliance.
Product Description
TE Connectivity RT424730 7-1393243-9 is a high-quality PCB mount non-latching power relay from the RT2 series, designed for reliable switching applications in automation and electronic control systems. It features a dual pole double throw (DPDT) contact configuration which enables versatile switching capabilities suitable for complex circuit requirements.
Powered by a 230V AC coil, this relay offers a switching current capacity of 8A and can handle a maximum switching voltage of 400V AC with power rating up to 2 kVA. The coil resistance stands at 32.5 kΩ which ensures low power loss during operation. Its contact material is a silver nickel alloy, recognized for excellent electrical conductivity and resistance to corrosion, contributing to the relay’s long operational life.
With operational temperature range from -40°C to 70°C, the relay can perform effectively across demanding industrial environments and domestic automation setups. It uses through-hole solder terminal mounting with 5 mm pin spacing which facilitates ease of installation and strong mechanical connection with printed circuit boards.
This relay meets rigorous international standards and approvals including cULus and VDE, underscoring its compliance with safety and quality requirements. Common industrial applications include automation systems, heating control units, security lighting, and other control circuits that demand dependable switching performance.
DPDT contact configuration enables dual independent switching paths. 230V AC coil voltage optimized for standard industrial control voltages. 8A switching current suitable for low to medium power applications. Silver nickel alloy contacts provide excellent durability and conductivity.
Compact size of 29 x 12.7 x 15.7 mm fits constrained PCB spaces. Operating temperature wide range from -40°C to 70°C for versatile use. Certified by cULus and VDE for international safety compliance.
The TE Connectivity RT424730 7-1393243-9 relay is manufactured in Austria, assuring stringent quality control in production. It is ideal for use in industrial, laboratory, HVAC, manufacturing, and domestic automation applications requiring reliable, efficient, and safe power switching. Explore more Power Relay options within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay can handle a maximum switching voltage of 400V AC.
It has a switching current capacity of 8A.
The coil voltage for this relay is 230V AC.
This relay operates effectively within a temperature range of -40°C to 70°C.
The dimensions are 29 mm in length, 12.7 mm in width, and 15.7 mm in height.
It features a dual pole double throw (DPDT) contact configuration.
The contacts are made of silver nickel alloy, ensuring reliable conductivity.
It uses through-hole solder terminal mounting with a 5 mm pin spacing for secure installation.
This product meets certification standards including cULus and VDE.
The coil resistance is 32.5 kΩ, which contributes to efficient energy consumption during operation.
It is commonly used in automation systems, heating control units, and security lighting among other control circuits.
This relay is manufactured in Austria, ensuring stringent quality control in production.
