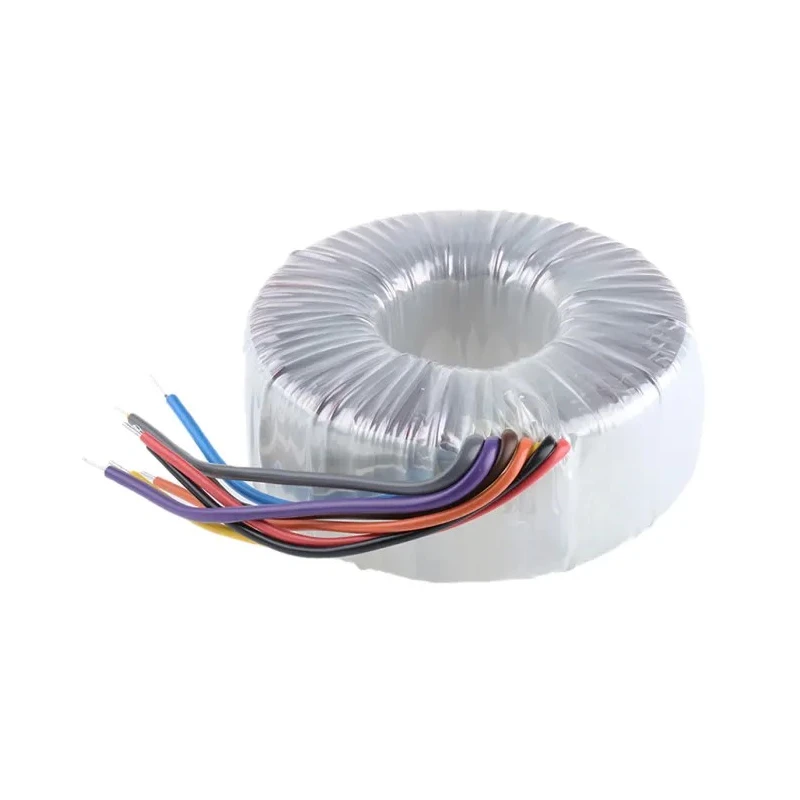

Nuvotem Talema 230 V ac 2 x 40 V ac Toroidal Transformer 2 Output 500 VA 6.25A Open Toroid Centre Lead 92435-P2S2

Nuvotem Talema 92435-P2S2 is a premium quality toroidal transformer designed for industrial and electronic applications requiring a primary voltage of 230 V ac and dual secondary outputs of 2 x 40 V ac with a power rating of 500 VA. Featuring an open toroid centre design, it ensures efficient magnetic flux distribution and lower eddy current losses.

The transformer utilizes a single primary winding with lead termination, making it compatible with various power supply systems and providing easy wiring options. It operates efficiently within standard industrial frequency ranges of 50 Hz to 60 Hz and can withstand operating temperatures up to 40°C without degradation, ensuring durability in demanding environments.

Compactly built with a diameter of 136 mm and a height of 60 mm, this transformer is well suited for installations where space constraints exist. It weighs 3.5 kg and includes a full mounting kit for practical and secure assembly.

This model complies with important environmental and safety standards including RoHS, EN61558, EN60950, EN60065, and VDE specifications while holding approvals like UL506 and EN61558, making it suitable for use in electronic components, power supplies, and construction equipment requiring stringent quality certifications.

The toroidal construction results in extremely low levels of radiated magnetic fields and minimal induced noise (hum), making the transformer ideal for laboratory, industrial, manufacturing, and HVAC applications where noise and electromagnetic interference must be minimized.

The mounting kit and double insulated primary leads provide added safety and reliability. Users are cautioned to avoid both ends of the fixing bolt contacting metal simultaneously to prevent dangerous shorted turns.

Constructed with an open toroid centre for efficient magnetic flux distribution. Features single primary winding and lead termination type. Operates within a frequency range of 50 Hz to 60 Hz. Designed for a maximum operating temperature of 40°C ensuring reliable performance.

Compact dimensions include 136 mm diameter and 60 mm height for versatile installation. Complies with RoHS standards for environmental safety and electrical compliance. Includes a full mounting kit for secure and easy installation.

Boasts low radiated magnetic field and minimal noise with double insulated primary leads.
