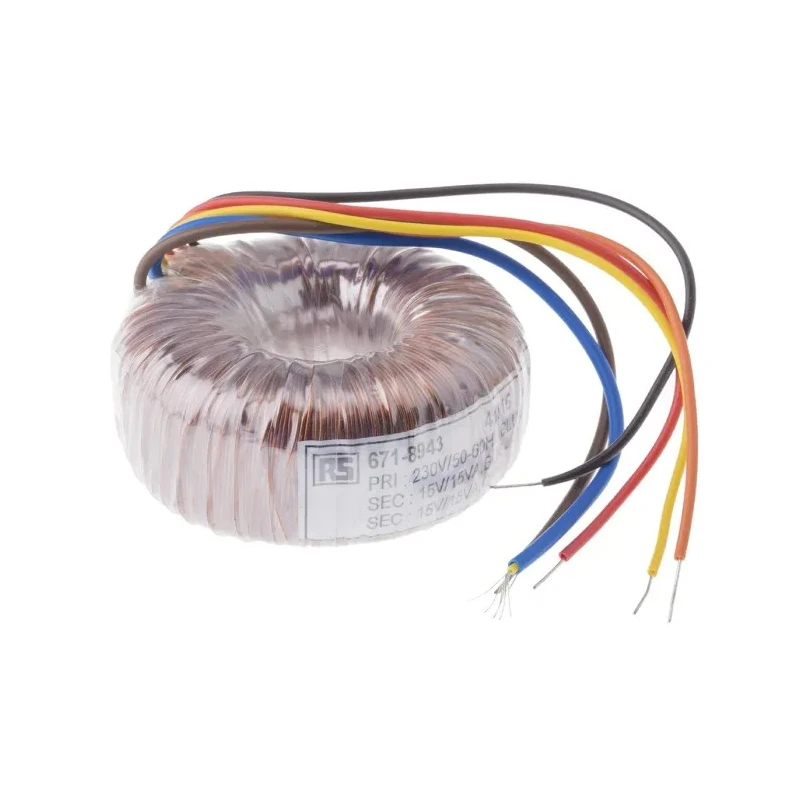

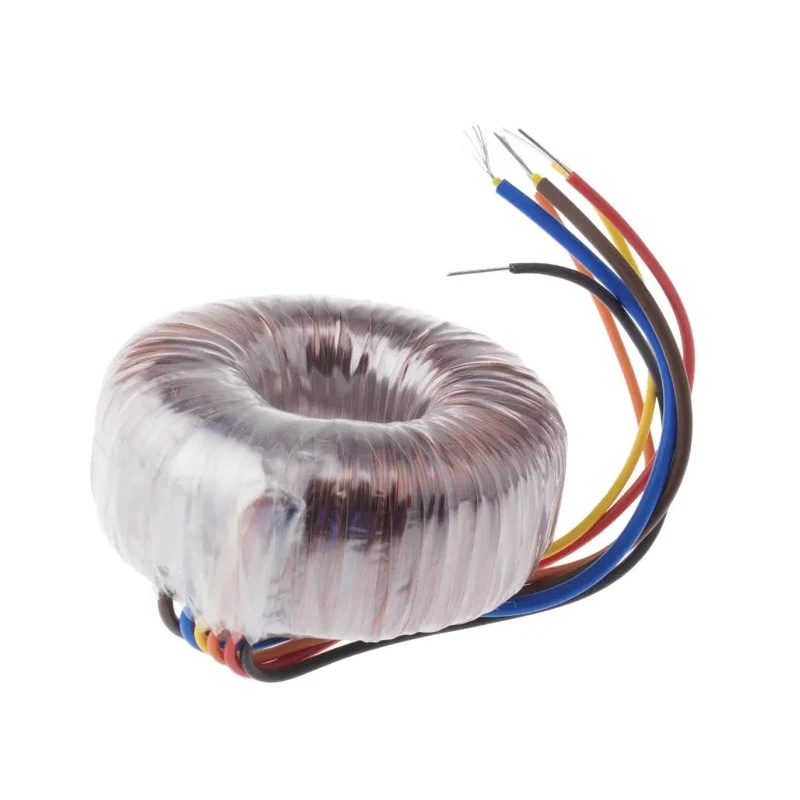

RS PRO 230 V AC Toroidal Transformer 2 x 15 V AC 1A 30 VA Low Noise 60 Hz 671-8943

RS PRO 671-8943 Toroidal Transformer is designed for efficient and compact power conversion applications with a primary voltage rating of 230 V AC and dual secondary outputs of 2 x 15 V AC rated at 1 A and 30 VA power capacity. Its toroidal core construction ensures optimized magnetic flux distribution with low electromagnetic interference and minimal audible noise, making it ideal for use in sensitive electronic environments.

The transformer features copper conductor termination wires and double insulated primary leads to ensure high electrical isolation and protection against electrical faults. The compact form factor with a 70 mm diameter and 32 mm height supports easy integration in limited spaces in industrial and commercial equipment.

Operating within a frequency range of 50 to 60 Hz, this transformer suits a variety of AC power supply conditions. Weighing just 503 grams, it offers lightweight durability without sacrificing performance.

Typical applications include audio equipment, telecommunications, medical devices, power supplies, and industrial control systems. These domains benefit from its stable power output and reduced electromagnetic emissions, contributing to enhanced electronic system reliability and longevity.

Note that mounting hardware is not included and should be sourced separately according to installation requirements. Users should avoid shorted-turn conditions by ensuring that both ends of the fixing bolt do not simultaneously contact the metal chassis or framework during assembly.

Compact size with 70 mm diameter and 32 mm height. Low noise operation ideal for sensitive electronics. High electrical isolation with double insulated leads. Dual outputs delivering 2 x 15 V AC at 1 A each. Operating frequency from 50 Hz to 60 Hz.

Lightweight at 503 grams for ease of handling and installation. Construction with copper conductor termination wires. Suitable for industrial, medical, telecommunications, and audio applications. Explore more transformers and related electronic components to enhance your industrial, laboratory, or commercial electronic projects at EnvMart.
