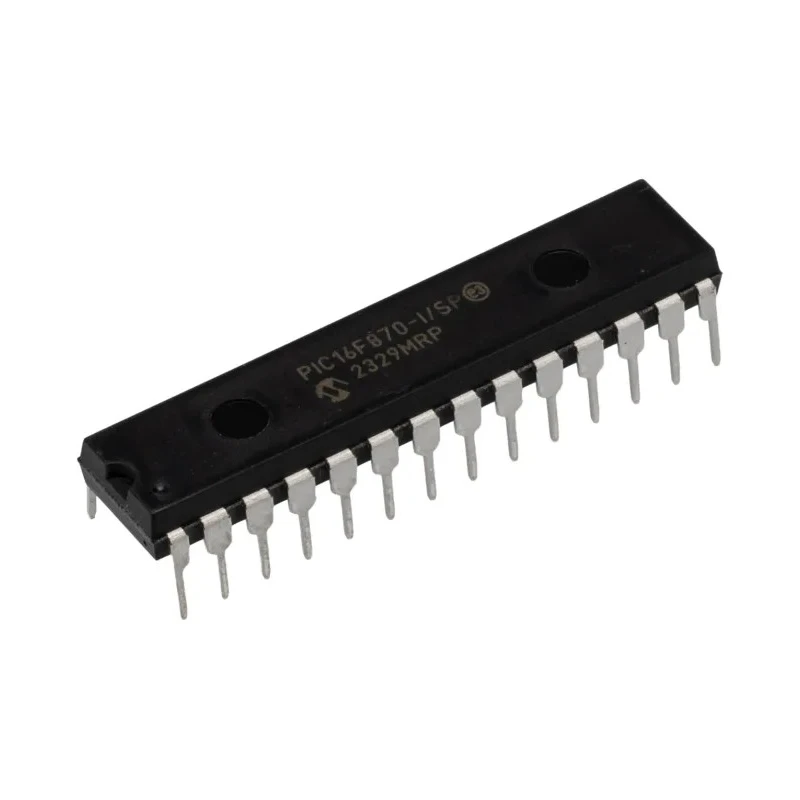

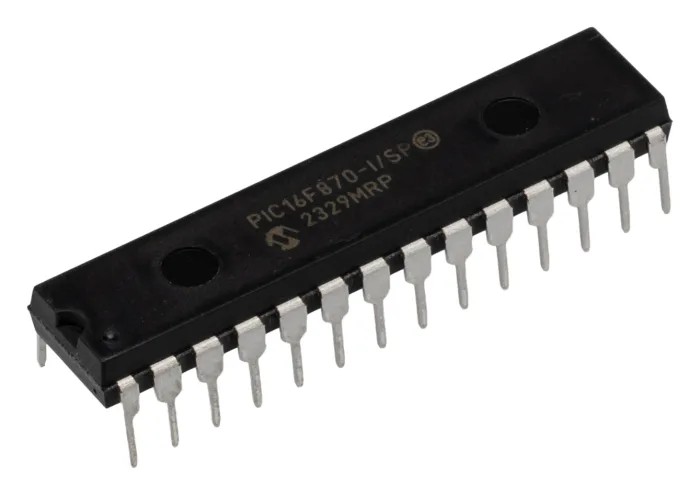

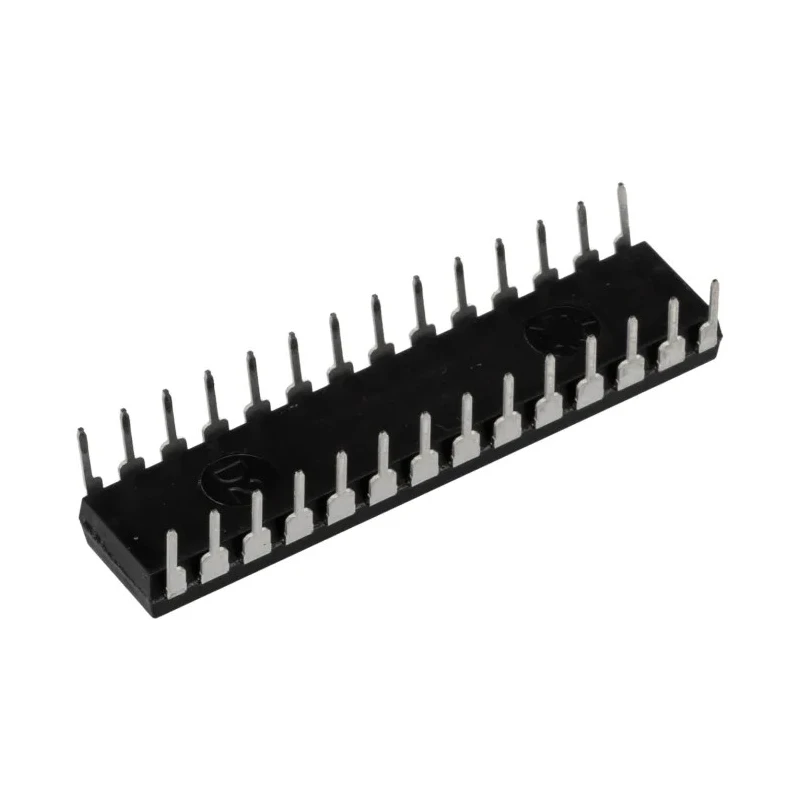

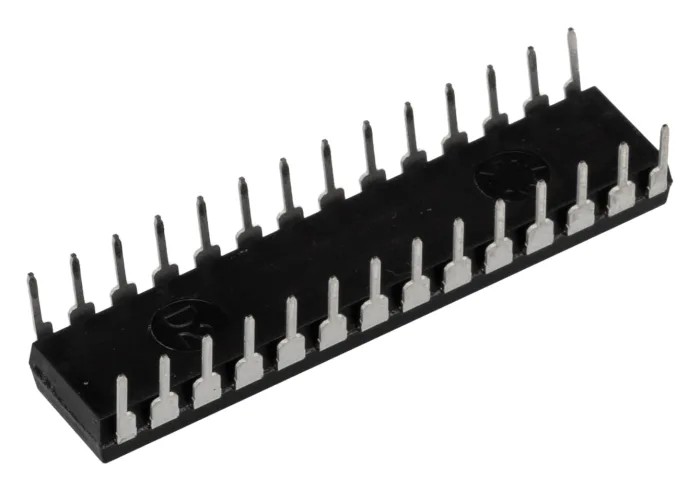

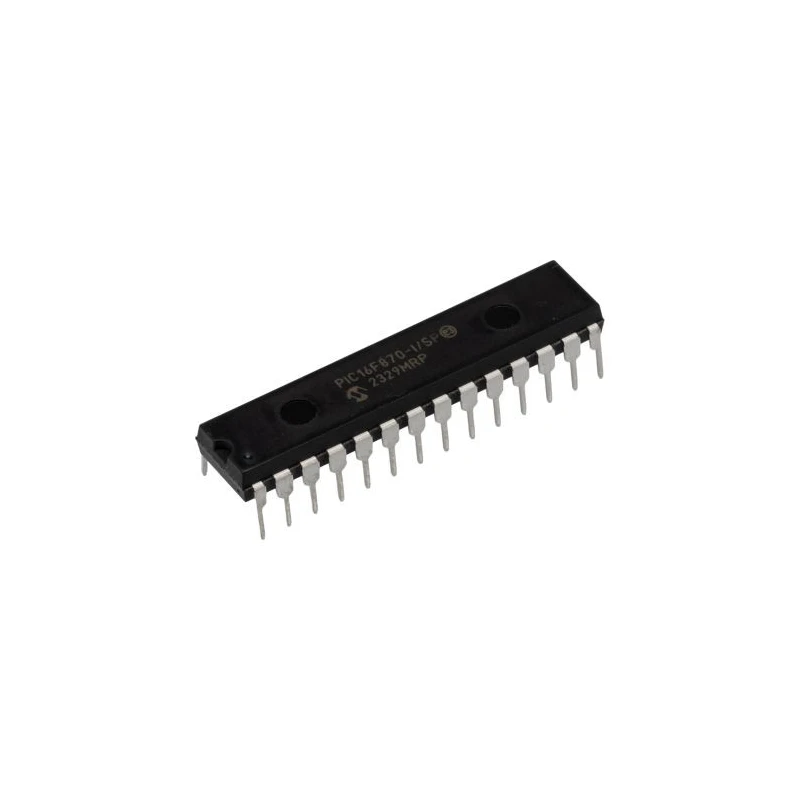

Microchip 8-bit PIC Microcontroller 20 MHz 3.5 KB FLASH 28-Pin SPDIP PIC16F870-I/SP

Microchip PIC16F870-I/SP is an 8-bit microcontroller featuring Microchip's proven PIC technology, designed for versatile embedded applications. Operating at a maximum clock frequency of 20 MHz, it delivers efficient performance suitable for various industrial, automotive, and consumer electronics projects.

This MCU includes 3.5 KB of FLASH program memory and 128 bytes of RAM, paired with 64 bytes of EEPROM, enabling robust data management and program storage. The 22 general-purpose I/O pins offer flexible interfacing options, including SCI for serial communication and peripheral control.

The device integrates five 10-bit analogue-to-digital converter channels, facilitating precise analogue signal measurement in instrumentation and sensor monitoring systems. Additionally, it incorporates multiple timer resources, comprising two 8-bit timers and one 16-bit timer, supporting complex timing and PWM generation tasks.

Designed in a through-hole 28-pin SPDIP package, PIC16F870-I/SP is suitable for prototyping and applications requiring durable, easy-to-solder components. It supports in-circuit serial programming (ICSP) and in-circuit debugging (ICD), streamlining development cycles for engineers.

Operating over a voltage range of 2 V to 5.5 V with a maximum power dissipation of 1 W, and functioning reliably from -40°C to 85°C, this microcontroller is well-suited for harsh industrial environments and embedded control systems in manufacturing and automation.

Built on Microchip's Mid-Range PIC architecture providing 5 MIPS performance. Features 22 programmable I/O pins supporting various peripheral interfaces. Includes 128 bytes RAM and 64 bytes EEPROM for data storage. Offers 5 channels of 10-bit analogue-to-digital conversion for accurate sensing.

Integrated timers: two 8-bit and one 16-bit to support timing functions. Supports In-Circuit Serial Programming (ICSP) and debugging for development. Available in a through-hole 28-pin SPDIP package for easy integration.

Operating voltage range from 2 V to 5.5 V with maximum power dissipation of 1 W. Operating temperature range from -40°C to 85°C for industrial applications.

This Microchip PIC microcontroller is widely used across industries including automotive control, consumer electronics, industrial automation, instrumentation, and embedded system development due to its reliability and rich feature set. Browse EnvMart's extensive collection of Microcontrollers for matched components and design resources.
