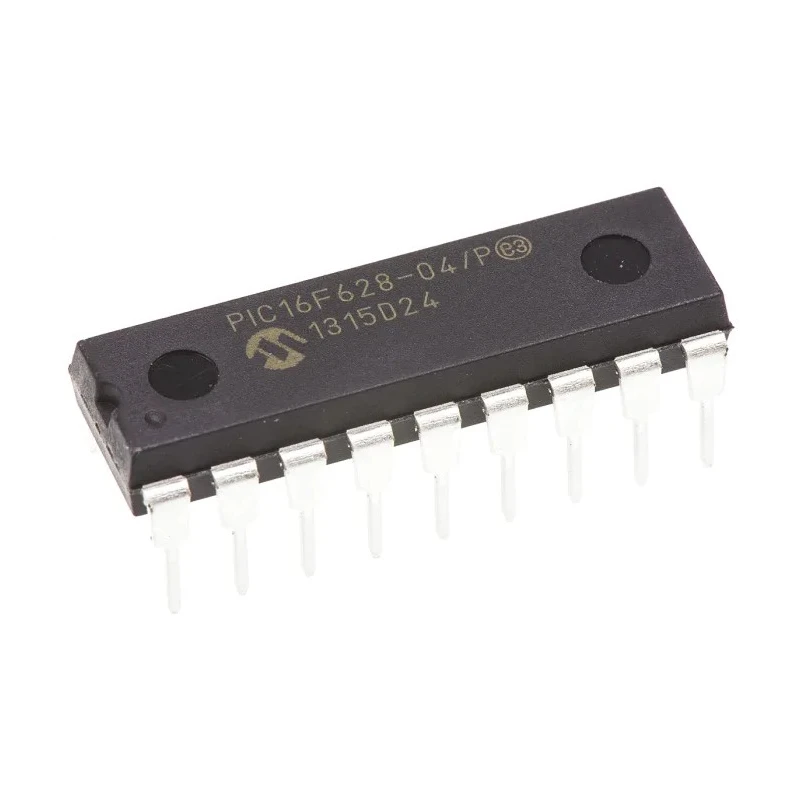

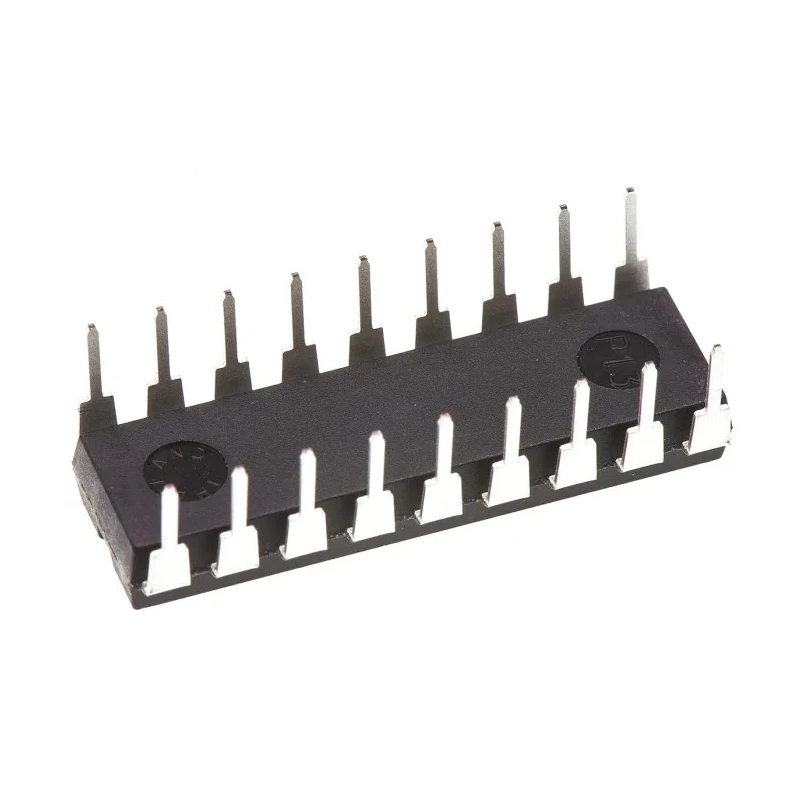

Microchip 8 bit PIC Microcontroller with 3.5kB FLASH Memory, 4 MHz Clock, 18-Pin PDIP PIC16F628-04/P

Microchip PIC16F628-04/P is an 8-bit PIC microcontroller designed with a 4 MHz maximum clock frequency and 3.5kB of FLASH program memory housed in a compact 18-pin PDIP package ideal for through-hole PCB mounting. Suitable for diverse industrial, laboratory, and embedded applications, this device integrates Microchip's mid-range PIC core architecture featuring a 35-instruction set and 8-level deep hardware stack.

This microcontroller provides 224 bits of RAM, 16 input/output programmable pins, and supports USART interface for serial communications. It includes multiple embedded peripherals such as two analog comparators, three timers (two 8-bit and one 16-bit), and a capture/compare/PWM module enabling complex signal and timing control.

Designed to operate over a voltage range from 3 V to 5.5 V with a maximum power dissipation of 800 mW, it assures efficient performance across a temperature range of 0°C to 70°C. The device includes vital reliability features like power-on reset, power-up timer, oscillator start-up timer, brown-out reset, and watchdog timer to ensure stable operation in industrial environments.

Its in-circuit serial programming capability facilitates ease of development and firmware updates. Compliance with RoHS directives confirms its suitability for environmentally conscious designs.

Microchip 8-bit mid-range PIC architecture with RISC instruction set. 3.5kB FLASH program memory and 224 bit RAM for application data. 18-pin PDIP package size 22.99 x 6.6 x 3.68 mm with through-hole mount. Peripheral support includes USART, analog comparators, timers, and PWM.

Operating voltage 3V to 5.5V with 800 mW power dissipation. Operating temperature range of 0°C to 70°C with robust reset and timer features. Suitable for embedded, industrial, and electronics design applications. Explore additional Microchip Microcontrollers and embedded solutions on EnvMart for your electronics projects and production needs.
