JAE Male Crimp Circular Connector Contact Contact Size 16 AWG Wire Size 26AWG 13A JL05 Series ST-JL05-16P-C2-100

Free Delivery in India | Lowest Global Shipping Charges

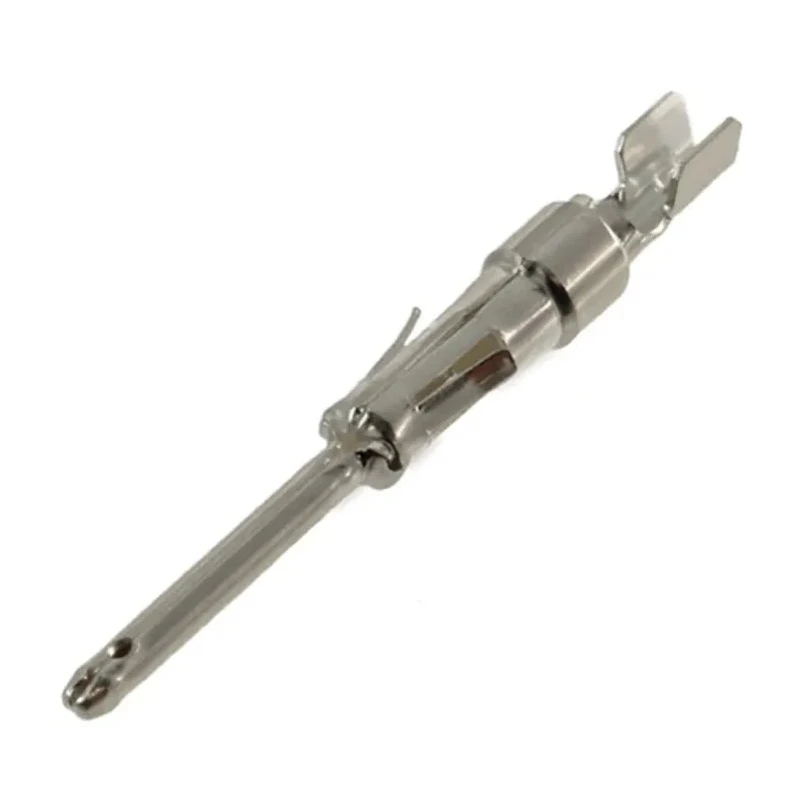

JAE Male Crimp Circular Connector Contact Contact Size 16 AWG Wire Size 26AWG 13A JL05 Series ST-JL05-16P-C2-100



Category Electronic Components, Power & Connectors Brand JAE Condition New

Specifications

Country of Origin	Japan
Brand	JAE
Current	13A
Length	32.4mm
Model	ST-JL05-16P-C2-100
Gender	Male
Contact Material	Copper Alloy
Series	JL05
Termination Type	Crimp
Maximum Operating Temperature	125°C
Contact Type	Pin
Minimum Operating Temperature	-55°C
Wire size	26AWG
For Use With	JL05 Series
Contact Plating	Silver
Contact Size	16 AWG

Key Features

Constructed from copper alloy for excellent electrical conductivity.
Features silver plating on the pin contact for enhanced corrosion resistance.
Contact length measures 32.4 mm, ensuring reliable connectivity.
Crimp termination type allows secure wire attachment.
Operates reliably within a temperature range from -55°C to 125°C.
Designed specifically for use with JL05 Series circular connectors.
Male (pin) contact gender suitable for connector assemblies.
Manufactured in Japan to maintain high quality standards.

Product Description

JAE ST-JL05-16P-C2-100 Male Crimp Circular Connector Contact is engineered for industrial electronics applications within the JL05 Series circular connector range. It features a robust copper alloy contact with silver plating that ensures durability and excellent electrical performance for signal and power transmission.

This connector contact supports a current capacity of 13 amperes and is designed to accommodate wire sizes of 26AWG, with a contact size of 16 AWG, making it suitable for precise, reliable crimp connections. The contact length of 32.4 mm facilitates secure insertion and optimal connection stability.

With a temperature operating range from -55°C to 125°C, this connector contact withstands demanding environmental conditions, making it ideal for industrial, manufacturing, and automation sectors. The crimp termination method provides ease of installation and consistent electrical contact quality.

As a male pin contact, it is compatible with JL05 series female connectors, enabling versatile connector assembly configurations. This product is manufactured in Japan, reflecting superior craftsmanship and quality assurance.

Constructed from copper alloy for maximum conductivity. Silver-plated contacts resist corrosion for longevity. 32.4 mm contact length for dependable connection. Crimp termination type for secure wire attachment. Temperature range from -55°C to 125°C ensures operational reliability.

Designed for JL05 Series circular connectors. Male pin contact gender suits connector assembly designs. Manufactured in Japan supporting quality and performance standards.

This connector contact is ideal for use in industrial electronics, signal processing, automation equipment, and other professional electrical installations requiring reliable circular connector contacts. Browse the Electronics & Electricals category on EnvMart for compatible accessories and connector solutions.
