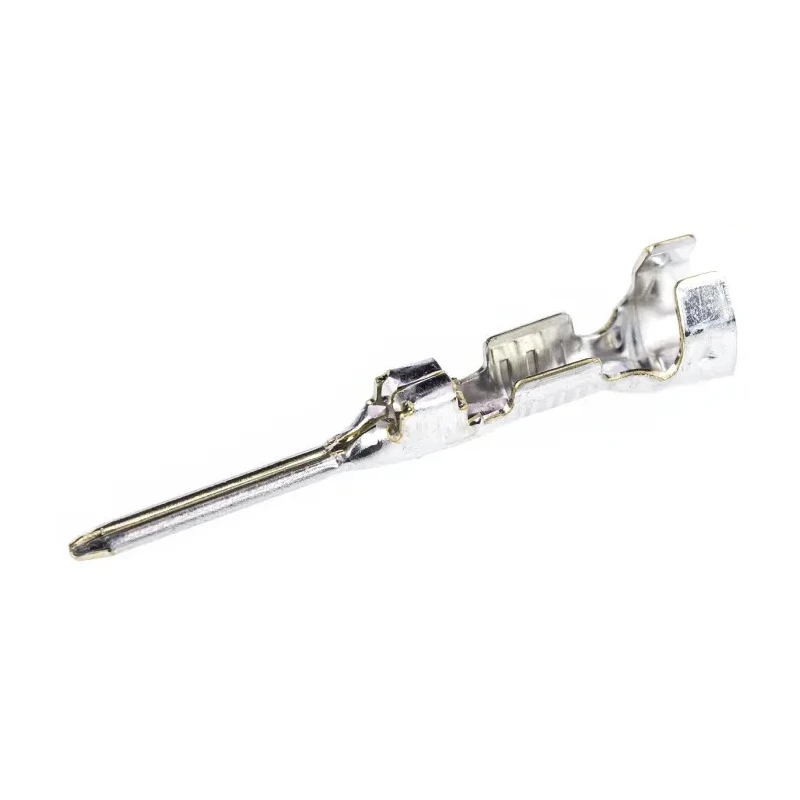

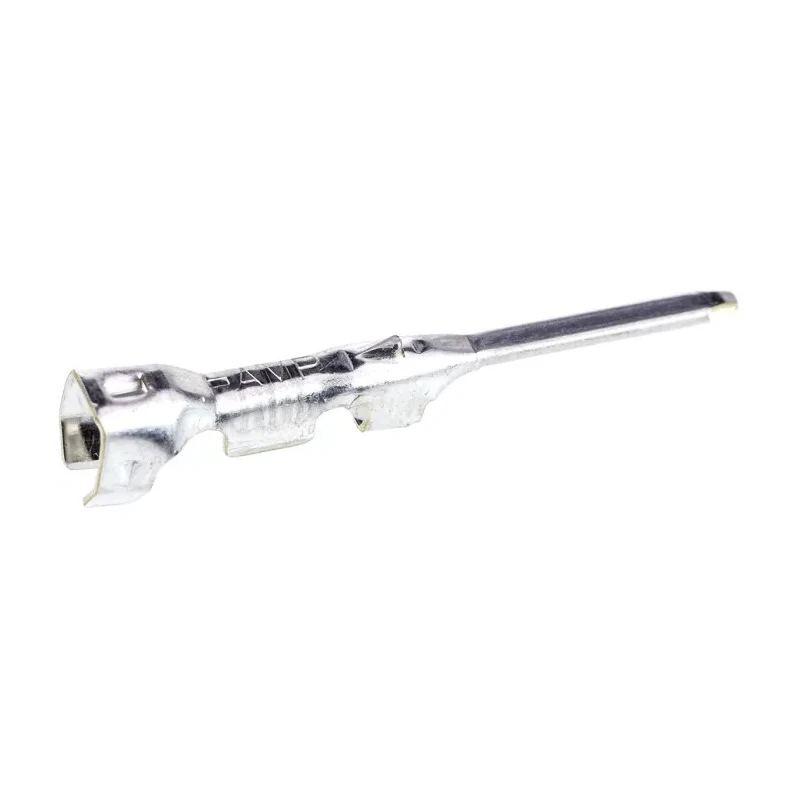

TE Connectivity MULTILOCK 040 Series Male Crimp Terminal 5A Current Tin Plated Brass Contact 19mm Length 175063-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 5A |
| Length | 19mm |
| Model | 175063-1 |
| Gender | Male |
| Contact Material | Brass |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 040 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 23AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed from brass with tin-plated contacts for corrosion resistance.
- Designed for use with MULTILOCK 040 Connector Housing.
- Supports minimum wire size of 23 AWG (0.3 mm²) and maximum wire size of 20 AWG (0.5 mm²).
- Termination is solder type ensuring strong mechanical and electrical connection.
- Operates safely between -30°C to 105°C temperatures.
- 19 mm length fits compact connector assemblies.
- Snap-in fixing for secure connector mating.
- Ideal for automation and automotive wire-to-wire and wire-to-board applications.
Product Description
TE Connectivity 175063-1 MULTILOCK 040 Series Male Crimp Terminal is a high-quality, reliable connector component designed for electrical and electronic applications requiring robust wire termination. Manufactured with brass contact material plated with tin, this crimp terminal ensures solid mechanical and electrical performance within a current rating of 5A.
The 175063-1 model is engineered for use with MULTILOCK 040 Connector Housing, providing excellent compatibility and secure snap-in fixing for wire termination. It accommodates wire sizes ranging from 23 AWG (0.3 mm²) minimum to 20 AWG (0.5 mm²) maximum, making it suitable for small to medium gauge wiring.
This male Crimp Terminal’s solder termination type assures a strong and durable joint, resistant to vibration and environmental effects. It operates reliably across a wide temperature range from -30°C up to 105°C, suitable for demanding industrial and automotive environments.
With a compact length of 19 mm, it is ideal for high-density wiring networks found in automation, manufacturing, laboratory, and automotive sectors. The tin plating on the brass contact reduces corrosion and ensures stable electrical connectivity over time.
Constructed from brass contact material with tin plating for corrosion resistance. Current rating of 5A supports low to medium power applications. Fits MULTILOCK 040 Connector Housings with snap-in fixing connector cavities.
Compatible with wire sizes from 23 AWG to 20 AWG (0.3 mm² to 0.5 mm²). Operating temperature range of -30°C to 105°C, suitable for harsh environments. Termination type: Solder, ensuring solid mechanical and electrical connection.
Length of 19 mm allows compact assembly for dense connector systems. Widely used in Industrial Automation, Laboratory Equipment, Automotive, and Manufacturing applications.
This TE Connectivity MULTILOCK connector terminal is engineered for precision and durability, enabling easy and efficient wire termination in complex wiring harnesses. It meets industry demands for reliable electrical connections in varied environmental conditions, supporting continuous operation in industrial settings.
Explore the EnvMart catalog for more TE Connectivity connectors and reliable components engineered for high-performance electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this male crimp terminal is 5A, suitable for low to medium power applications.
It accommodates wire sizes ranging from 23 AWG (0.3 mm²) minimum to 20 AWG (0.5 mm²) maximum.
This terminal operates reliably within a temperature range of -30°C to 105°C, making it suitable for harsh environments.
It is constructed from brass with tin plating, which provides corrosion resistance and stable electrical connectivity.
The termination type for this model is solder, ensuring a strong mechanical and electrical connection.
This male crimp terminal is designed for use with MULTILOCK 040 Connector Housing, providing excellent compatibility.
The length of this crimp terminal is 19 mm, making it suitable for compact connector assemblies.
The overall resistance of this terminal is a maximum of 20 mΩ at final conditions, ensuring efficient electrical performance.
The low level resistance is a maximum of 10 mΩ initially, which contributes to its effective performance in electrical applications.
It is widely used in industrial automation, laboratory equipment, automotive, and manufacturing applications.
The country of origin for this male crimp terminal is Japan.
This terminal is a male type, designed for making connections with female counterparts in various applications.
