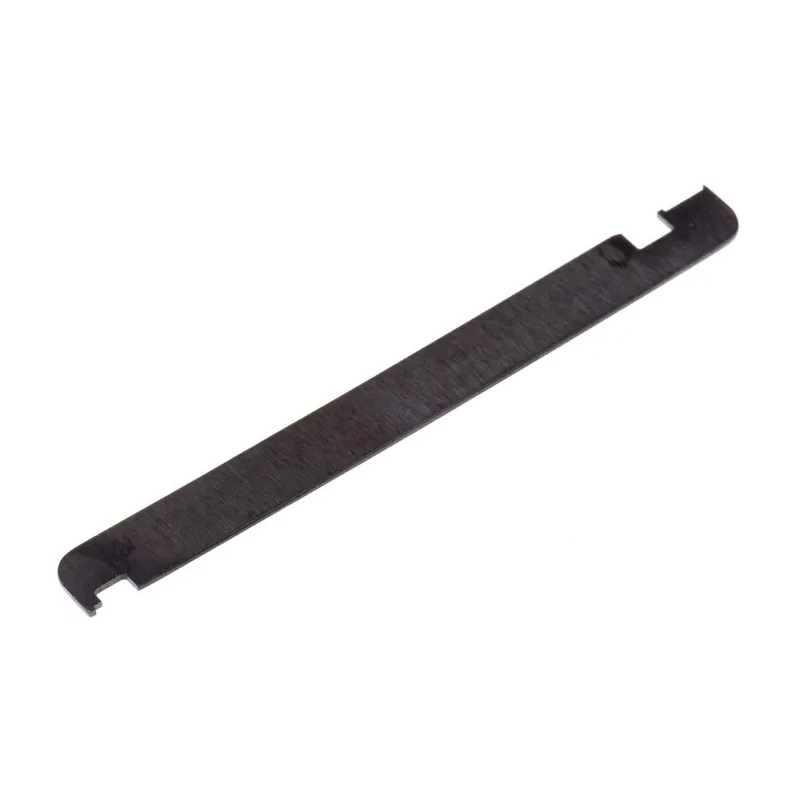

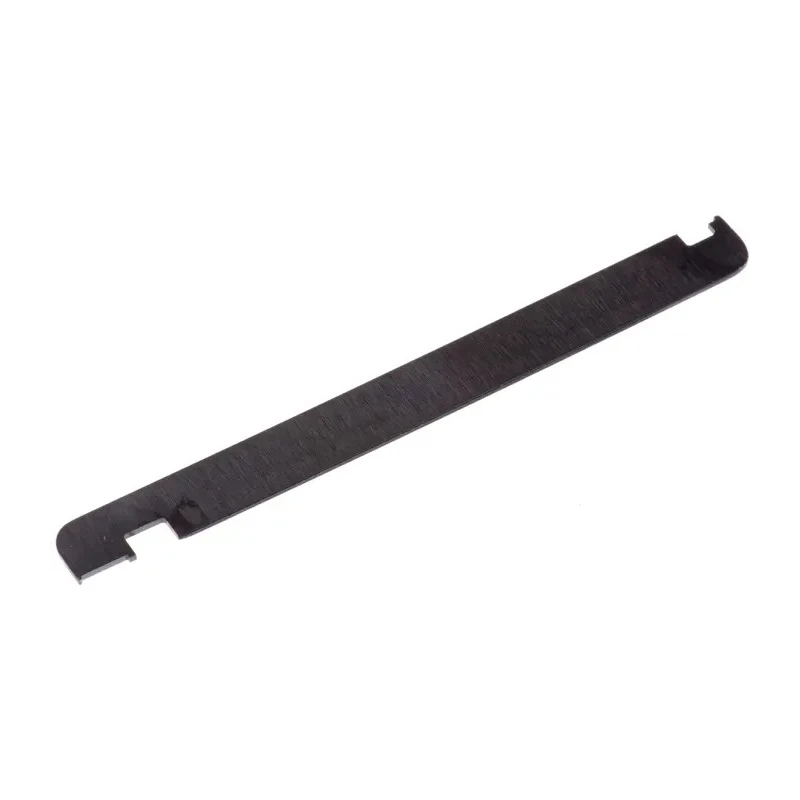

Molex Crimp Extraction Tool HANDTOOL Series for C-Grid III Terminals 69008-0003

Molex 69008-0003 crimp extraction tool from the HANDTOOL series is specifically designed for safe and efficient removal of crimp contacts used in C-Grid III terminals. Rated for a current of up to 3 A and a voltage of 350 Vac/dc, this tool is essential for maintenance and servicing of electrical connectors in various industrial applications.

The Extraction Tool works with C-Grid III 90119 series female crimp terminals which feature a robust box design and a uniform locking system allowing secure installation inside different housing styles. These terminals are manufactured from phosphor bronze and plated selectively with gold over nickel or tin over nickel to ensure reliable electrical contact and durability.

Compatible with wire sizes ranging 24-22 AWG or 28-26 AWG, this tool facilitates precise extraction without damaging the contacts or insulation materials. It is suitable for industrial sectors including consumer electronics and commercial vehicles, where connector reliability is critical.

The insulation headers of the terminals are made from 15% glass-filled polyester (PBT), and housings use polyphenylene oxide, providing thermal and mechanical stability. Recommended PCB hole diameter for these contacts is 1 mm with header pin sizes of 0.64 square mm.

This tool enables controlled contact extraction while maintaining connector integrity. Designed to work in conjunction with matching insertion and crimping tools for complete connector servicing. Constructed for durability and precise handling in demanding industrial environments.

With this Molex HANDTOOL 69008-0003, users can ensure effective maintenance and repair of crimp contact connectors. It is a vital component for tasks in mechanical, electrical, and electronics manufacturing sectors. Explore related crimping and insertion tools at EnvMart for complete connector assembly sets.
