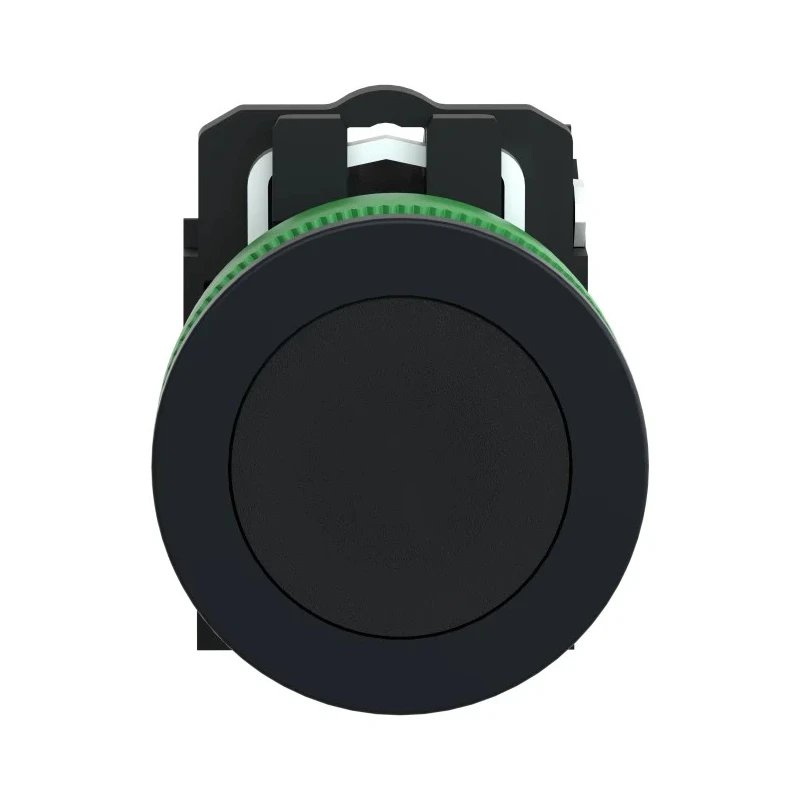

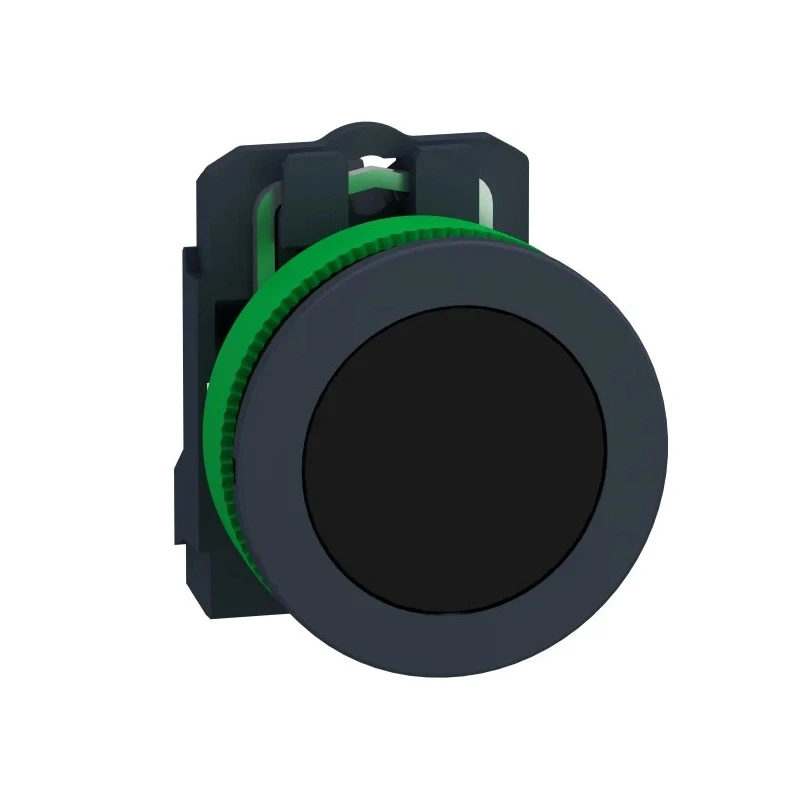

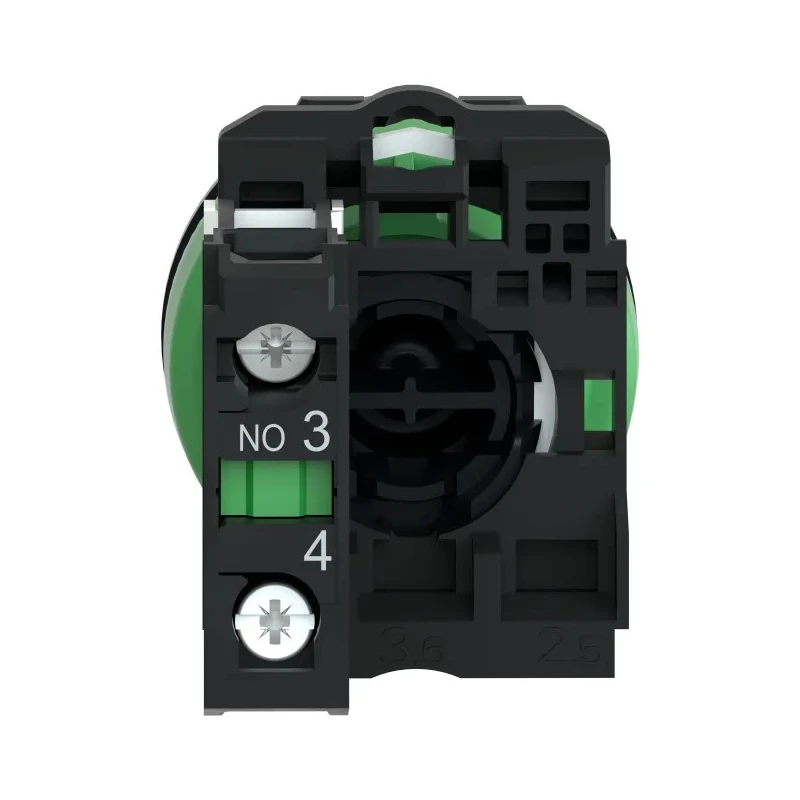

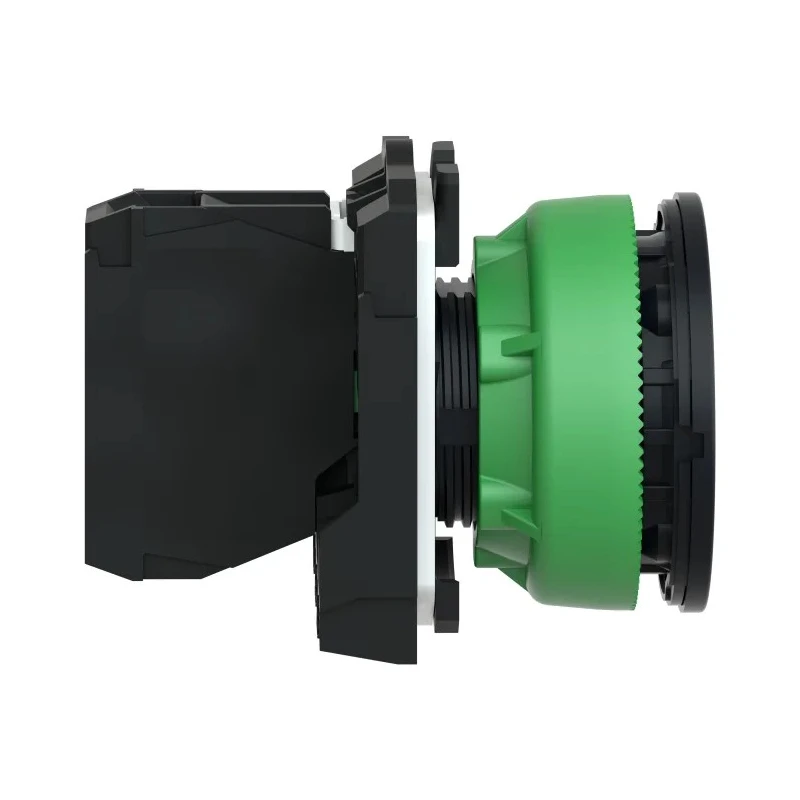

Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPST, Black LED XB5FA21

Schneider Electric XB5FA21 push button switch is part of the Harmony series, tailored for industrial control and automation applications requiring robust and reliable switching performance. This model features a round black actuator and spring return mechanism ensuring quick reset after actuation.

Designed for panel mounting with a 30 mm cutout, the switch integrates a Single Pole Single Throw (SPST) contact configuration with one normally open (1 NO) slow break contact, providing an effective switching solution for control circuits.

Rated for 600 V AC/DC and supporting a contact current of 6 A, the switch meets demanding electrical requirements. The screw terminal connection type ensures a secure and vibration-resistant wiring interface suitable for harsh environments.

Protection class IP69 rating certifies the product against dust ingress and powerful water jets, making it ideal for extreme industrial environments including food and beverage, marine, and building infrastructure sectors. The operating temperature range from -40°C to 70°C allows for versatile application in diverse climatic conditions.

The flush mount design improves ergonomics and aesthetics, while the antimicrobial characteristics of the plastic bezel aid in hygiene-sensitive environments. Compact size (55 mm height, 42 mm length, 36.6 mm width) facilitates integration into space-constrained panels.

This push button switch complies with various global standards such as EN/IEC 60947, UL 508, CSA, JIS, and ISO certifications, reflecting its quality and safety credentials. Accessories are available separately to extend mounting and connection possibilities.

Overall, the Schneider Electric Harmony XB5FA21 is suited for industrial automation, manufacturing, and control system implementations requiring a durable, high-quality Push Button Switch with reliable performance and versatile application.

Features a round black actuator with spring return operation. Single Pole Single Throw (SPST) contact configuration with 1 normally open contact. Rated for 600 V AC/DC operation with 6 A contact current. Constructed for high durability with IP69 ingress protection.

Operates reliably between -40°C and 70°C ambient temperatures. Equipped with black LED indicator for visual status feedback. Compact dimensions of 55 mm height, 42 mm length, and 36.6 mm width. Screw clamp terminal connection for secure wiring.

Flush mount design with antimicrobial plastic bezel and fixing collar. Certified to multiple international standards including EN/IEC, UL, CSA, JIS, and ISO. Explore the full range of Schneider Electric automation products on EnvMart for comprehensive industrial electrical solutions.
