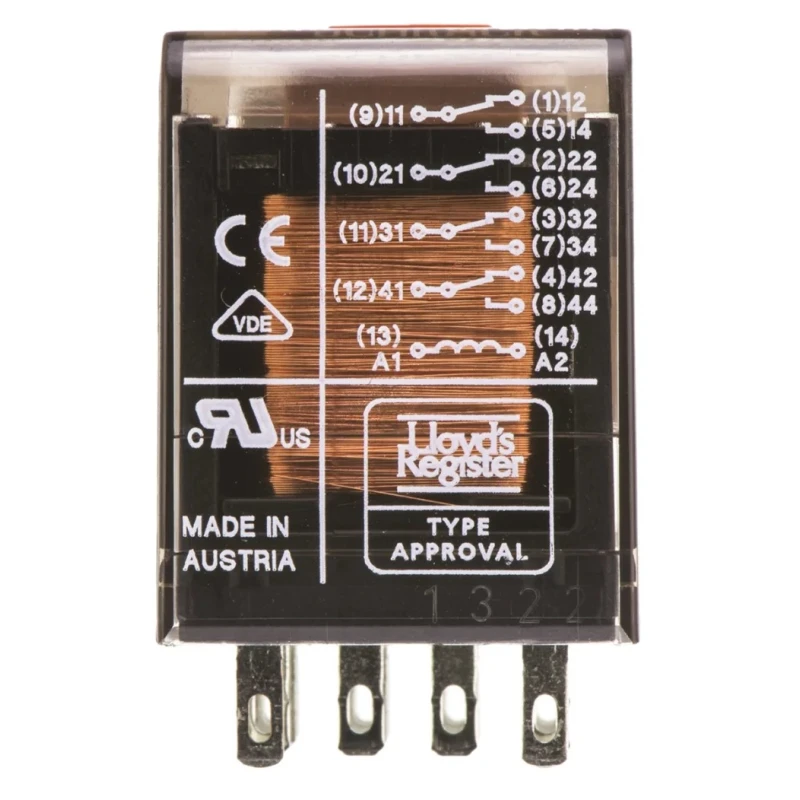

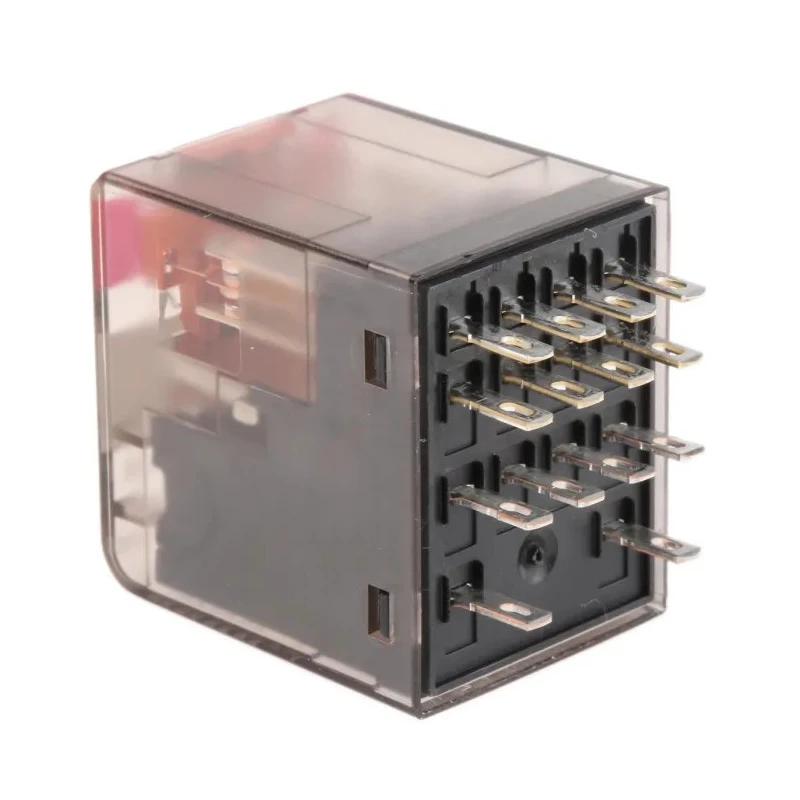

TE Connectivity PCB Power Relay 24V AC Coil, 6A Switching Current, 4PDT PT570524 8-1419111-7
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT570524 8-1419111-7 |
| Width | 22.5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Quick Connect |
| Standards/Approvals | UL, VDE, IEC, RoHS |
| Coil Resistance | 192Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 240V ac |
Key Features
- The relay supports a coil resistance of 192 ohms ensuring stable operation.
- Contact configuration is 4PDT for multiple switching channels.
- Designed for PCB mounting with quick connect terminals for easy installation.
- Operates reliably between -40°C to 70°C ensuring durability in diverse environments.
- Silver Nickel Alloy contacts provide high conductivity and longevity.
- Capable of switching up to 1.5 kVA power at 240V AC.
- Coil to contact isolation voltage is rated at 2.5 kVAC providing safety and noise immunity.
- Compact size dimensions are 35mm height, 28mm length, and 22.5mm width.
Product Description
TE Connectivity PT570524 8-1419111-7 is a high-quality PCB power relay designed for industrial, automation, and control applications. It features a coil voltage of 24V AC and supports a switching current of 6A, making it suitable for medium power switching tasks on printed circuit boards.
This non-latching relay has a contact configuration of 4PDT, allowing multiple circuits to be controlled simultaneously. It mounts directly onto PCBs with quick connect terminal types enabling fast and secure installation. The relay includes a mechanical indicator and manual lockable test facility enhancing maintenance and operational safety.
The coil resistance is measured at 192 ohms, ensuring energy-efficient coil operation. With a coil to contact isolation voltage of 2.5 kVAC, it offers excellent electrical safety and isolation. Its contact material, silver nickel alloy, provides durable and reliable electrical connections with minimal contact resistance.
The device is certified by international standards including UL, VDE, IEC, and meets RoHS compliance, ensuring both performance and environmental safety. Operating temperature ranges from -40°C to +70°C, suitable for a wide variety of industrial environments. Its compact dimensions (35mm height, 28mm length, 22.5mm width) make it ideal for space-constrained PCB layouts.
The relay supports a coil resistance of 192 ohms ensuring stable operation. 4PDT contact configuration for versatile switching. PCB mount type with quick connect terminals. Operating temperature range from -40°C to 70°C.
Silver Nickel Alloy contact material for long life and reliability. Switching power capability of 1.5 kVA at 240V AC. Coil to contact isolation voltage of 2.5 kVAC. Compliance with UL, VDE, IEC, and RoHS standards. Compact size with dimensions 35mm x 28mm x 22.5mm.
Manufactured in Austria ensuring superior quality standards.
This relay is extensively used in automation systems, electrical controls, HVAC control, manufacturing equipment, and other industrial applications requiring reliable switching of AC loads. Its robust build and approved certifications ensure it meets rigorous industry demands.
Explore similar high-performance Power Relays and electrical components within the Electronics & Electricals category on EnvMart to support your projects with trusted and quality products.
