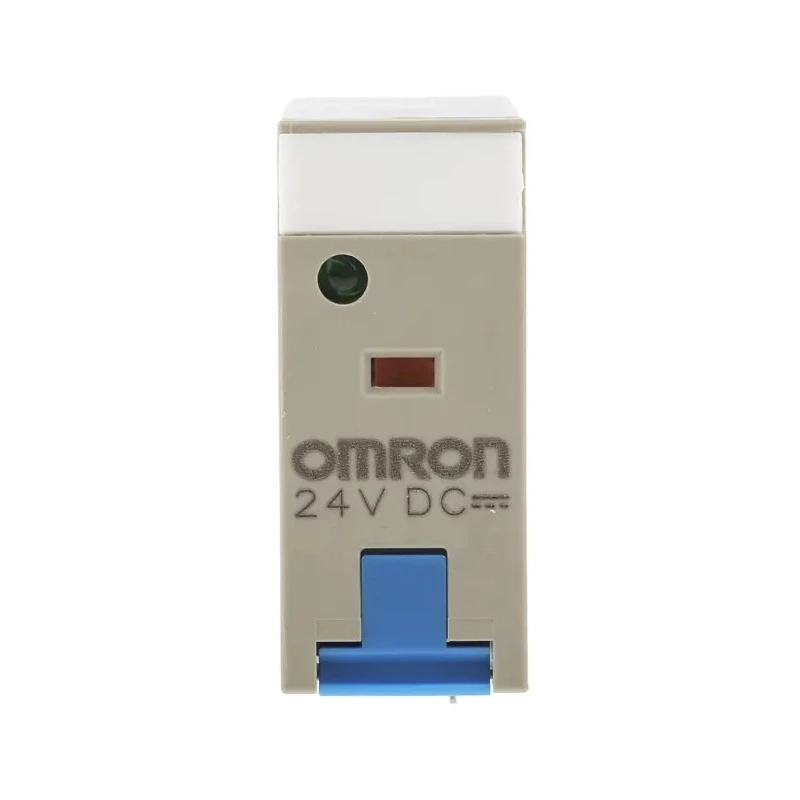

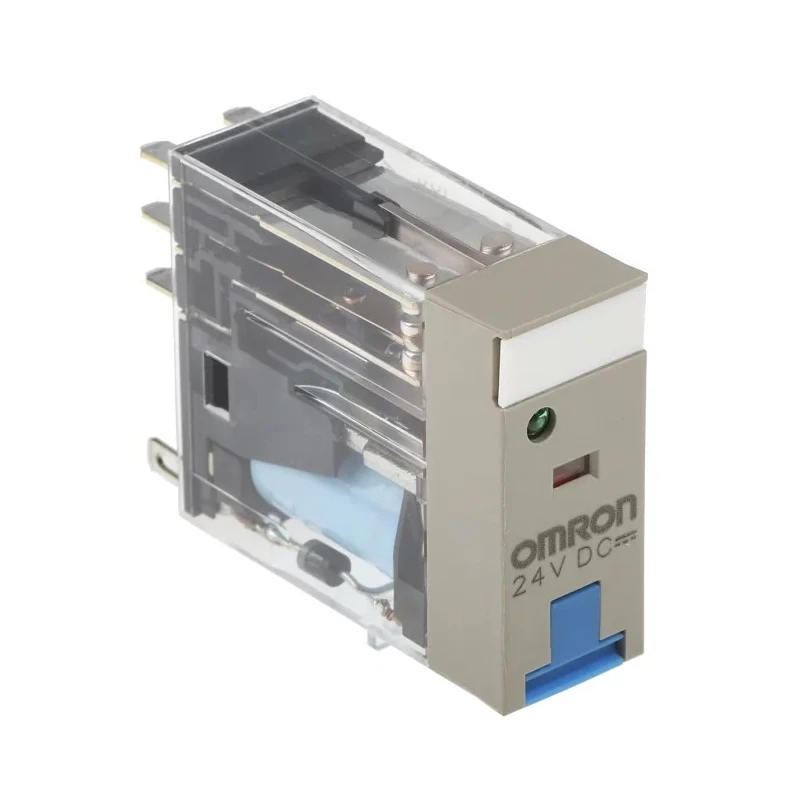

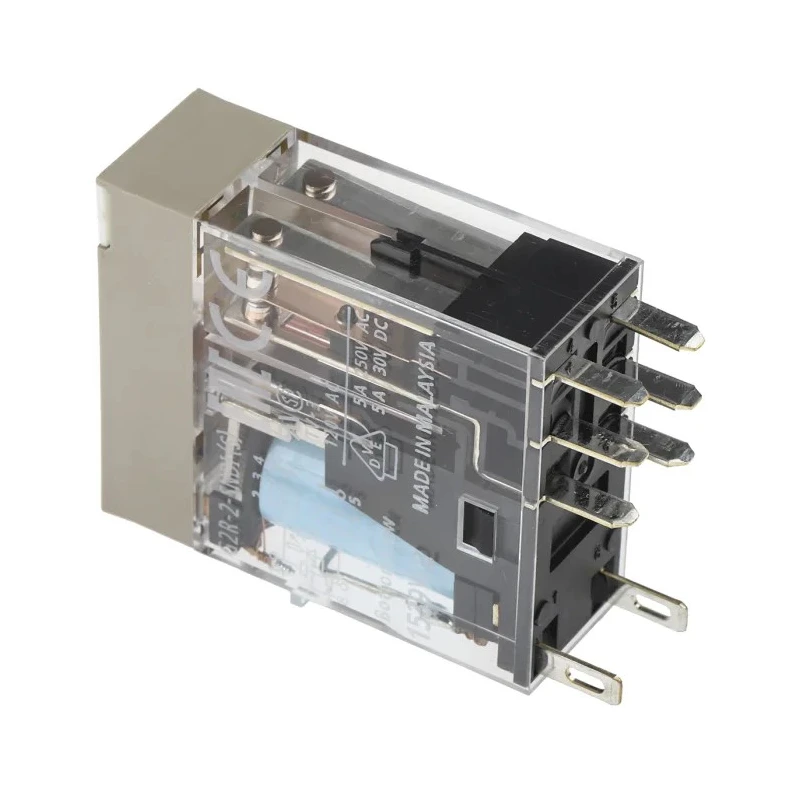

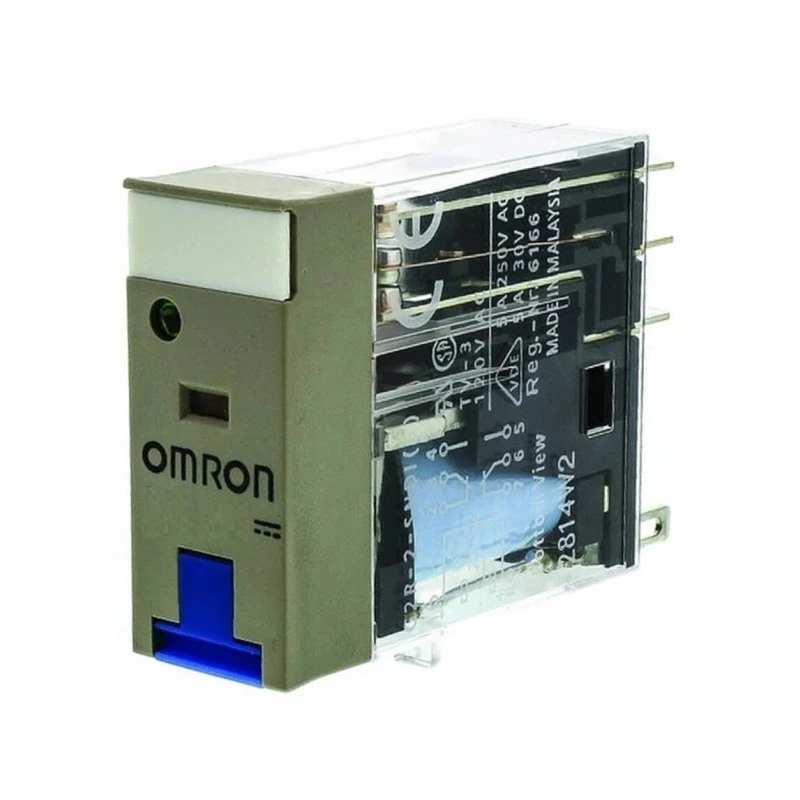

Omron Power Relay, 24V dc Coil, 5A Switching Current, DPDT, PCB Pin Terminal G2R-2-SNDI 24VDC (S)

The Omron G2R-2-SNDI 24VDC (S) Power Relay is a reliable and efficient component designed for controlling electrical circuits with a coil voltage of 24V dc and a switching current of 5A. Its DPDT (Double Pole Double Throw) contact configuration allows simultaneous control of two circuits, making it highly versatile for industrial and automation applications.

With operating temperature capabilities spanning from -40°C to 70°C, the relay performs reliably even in harsh environmental conditions. The compact size of 29mm length, 41.7mm width, and 13mm height with a lightweight 20g body allows easy integration onto printed circuit boards using PCB pin terminals.

It supports switching voltages up to 30V dc for DC circuits and 250V ac for AC circuits, with a switching power rating of 1.25kVA. The low coil power consumption of 530mW contributes to energy-efficient operation, while the silver alloy contacts ensure durable, wear-resistant connectivity for long-term use.

The relay complies with international standards including IEC, CE, EN, RoHS, and UL, ensuring safety and conformity for industrial use. Its high operational speed of up to 18,000 cycles per hour and long mechanical and electrical lifespan of at least 20 million operations support demanding manufacturing and process control environments.

Typical applications include industrial process control, aerospace engineering, power utilities, manufacturing, HVAC systems, and lighting control. The relay can be easily mounted by plug-in installation methods and is compatible with various relay sockets and terminal blocks to simplify wiring and expand functionality.

Operates reliably in temperatures from -40°C to 70°C. Compact PCB pin terminal type for easy mounting. Switching voltages up to 30V dc and 250V ac supported. Low coil power consumption of 530mW enhances energy efficiency.

Silver alloy contact material ensures durability and reliable connectivity. High switching power rating of 1.25kVA suitable for industrial applications. Lightweight design with a weight around 20 grams. Complies with IEC, CE, EN, RoHS, and UL standards for quality and safety.

Extensive lifespan with up to 20 million operations at 18,000 cycles per hour. Ideal for use in lighting, HVAC, motor controls, and general automation systems.
