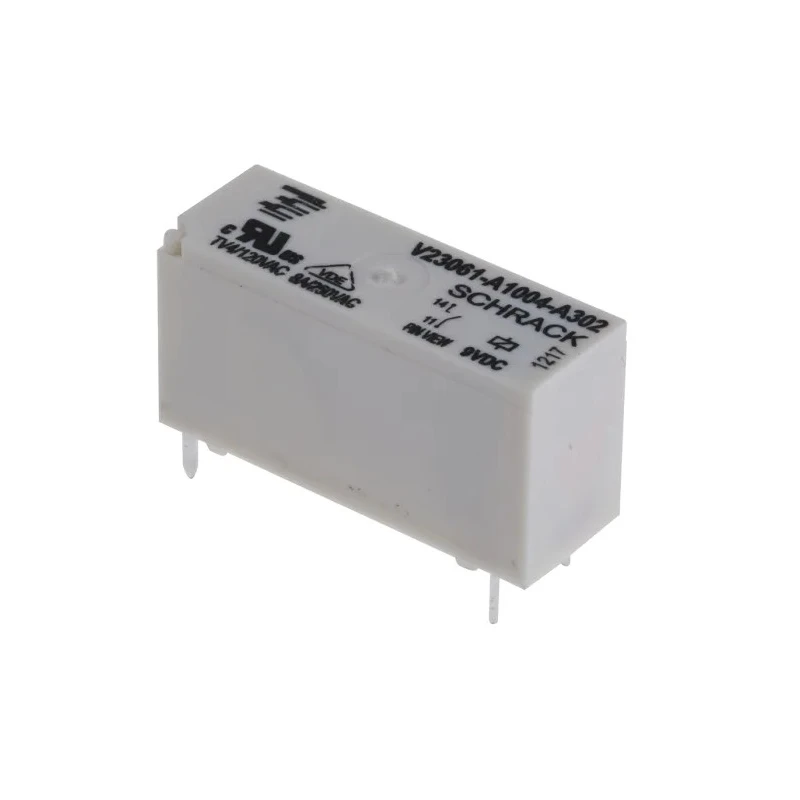

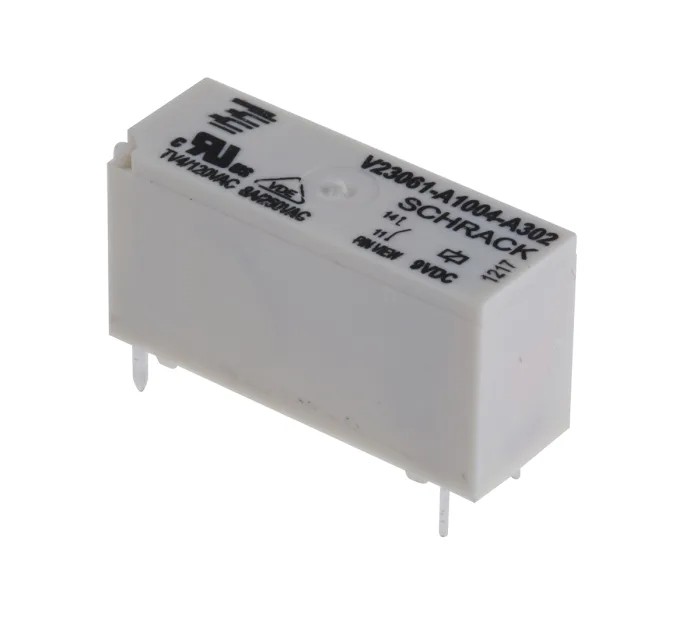

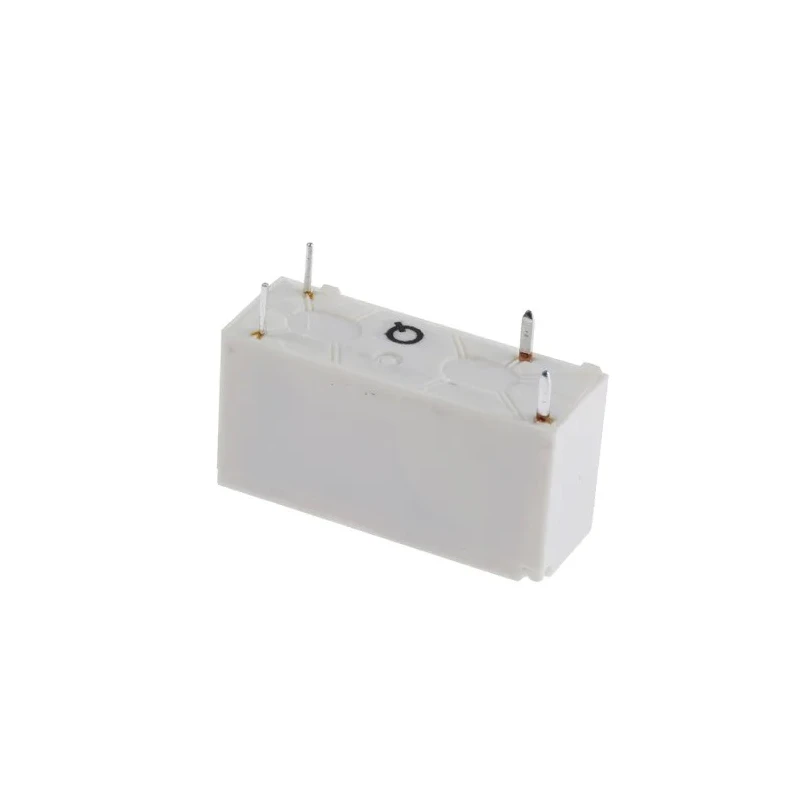

TE Connectivity MSR Series Miniature PCB Power Relay 9V DC Coil, 8A Switching Current, SPST, Through Hole Mount 1-1393222-5

TE Connectivity 1-1393222-5 MSR Series Miniature PCB Power Relay features a 9V DC coil voltage and supports a switching current of up to 8A. Designed for precise and durable performance, this SPST relay is ideal for PCB mounting with through hole terminals and a compact form factor measuring 28.6mm length, 10mm width, and 15mm height. The relay uses silver alloy contacts providing excellent conductivity and resistance to wear.

The device operates reliably over a broad temperature range from -40°C to 85°C, making it suitable for industrial environments requiring robust performance. Its coil resistance of 364Ω and a coil power of just 220mW make it energy efficient without compromising switching capability. Rated for switching AC voltage up to 400V and switching power of 2 kVA, it caters well to power relay applications in automation, industrial machinery, and control systems.

The relay’s white plastic enclosure is wash tight, offering added protection. Certifications and approvals including IEC, REACH, RoHS, UL, and VDE standards assure high-quality manufacturing and safe use. Manufactured in the Czech Republic, this relay is part of TE Connectivity’s trusted MSR series known for handling high inrush currents and providing reinforced insulation.

Compact MSR series miniature relay suitable for PCB mounting. SPST contact configuration with silver alloy contacts ensures durability. Operates within wide temperature range from -40°C to 85°C. Through hole terminal type allows for secure and stable mounting.

High switching AC voltage rating up to 400V AC. Low coil power consumption of 220mW facilitates energy efficiency. Meeting IEC, REACH, RoHS, UL, and VDE standards for quality and compliance. Reinforced insulation and wash-tight white plastic enclosure enhance performance.

This PCB power relay is suitable for use in industrial automation, electrical control panels, manufacturing equipment, and other applications requiring dependable switching. Explore EnvMart’s Electrical Relays category to find compatible Power Relays and other components tailored to your technical needs.
