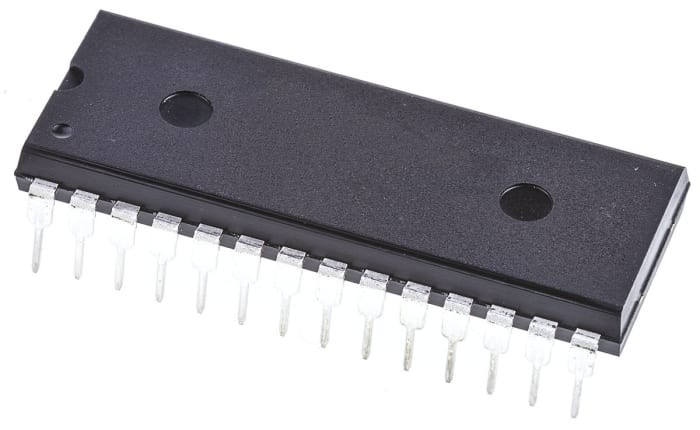

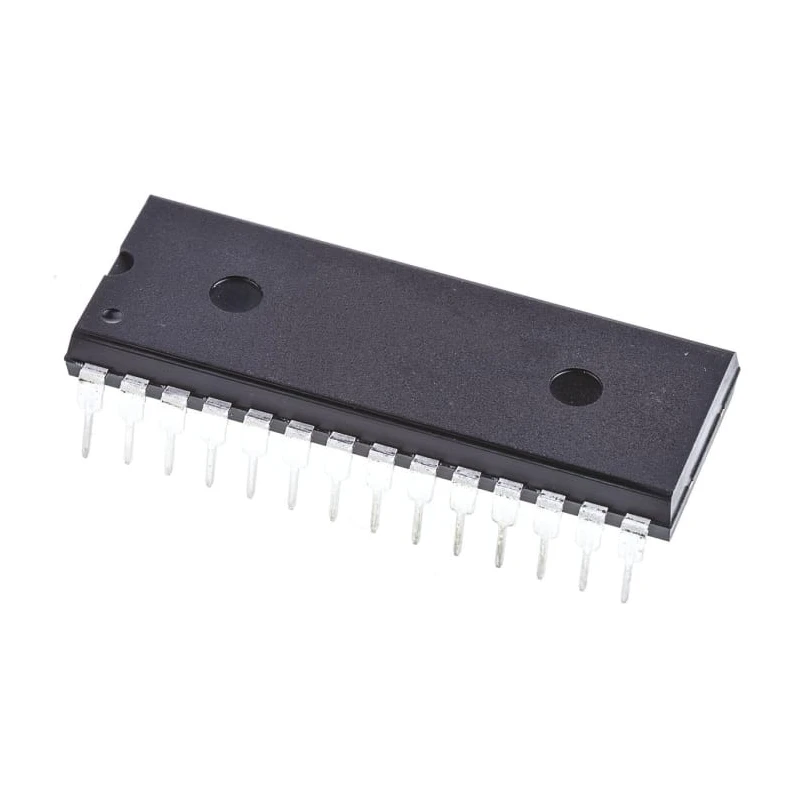

Microchip 8 bit PIC Microcontroller 3kB EPROM 4 MHz 28-Pin PDIP PIC16C57C-04/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 37.21mm |
| Model | PIC16C57C-04/P |
| Width | 14.22mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 72bit |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 4.5V |
| Device Core | PIC |
| Program Memory Size | 3kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 20 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | EPROM |
Key Features
- Operates with an 8-bit data bus and PIC device core architecture.
- Features 20 programmable input/output pins allowing flexible peripheral integration.
- Equipped with 3 kilobytes of EPROM program memory for non-volatile code storage.
- Maximum clock frequency of 4 MHz supports moderate processing speed requirements.
- Operates with supply voltages between 4.5 and 5.5 volts for stable power usage.
- Includes a single 8-bit timer to support basic timing functions.
- Power dissipation up to 800 mW ensures efficient energy consumption.
- Operating temperature range from 0°C to 70°C suitable for common industrial environments.
Product Description
Microchip PIC16C57C-04/P 8 bit PIC Microcontroller offers an effective embedded processing solution with a 3kB EPROM program memory and a 4 MHz maximum clock frequency. It comes in a 28-pin PDIP through-hole package, making it suitable for legacy design systems and prototyping within industrial and automotive sectors.
This microcontroller is built upon the PIC architecture featuring an 8-bit data bus and a PIC device core. It includes up to 20 programmable input/output pins for customized interfacing in embedded projects. The device supports operation within supply voltages ranging from 4.5 V to 5.5 V, with a maximum power dissipation of 800 mW, favoring low power consumption.
Key internal features include a single 8-bit timer for timing-related applications and a watchdog timer for system reliability. It operates reliably across a temperature span of 0°C to 70°C, making it apt for various industrial and commercial environments.
The microcontroller meets RoHS compliance and adheres to the ISO/TS 16949 automotive standard, ensuring quality for automotive usage. Package dimensions are compact, facilitating integration into both legacy and current embedded systems.
8-bit data bus width and PIC device core architecture. 3 kilobytes EPROM program memory for firmware storage. Maximum clock frequency of 4 MHz for processing control. 20 programmable I/O pins for comprehensive interfacing options.
Single 8-bit timer supporting basic time functions. Operating voltage range: 4.5 V to 5.5 V with 800 mW max power dissipation. Operating temperature 0°C to 70°C for typical industrial scenarios. RoHS certified and ISO/TS 16949 automotive standard compliance.
28-pin PDIP package dimensions: length 37.21 mm, width 14.22 mm, height 4.06 mm.
This microcontroller is widely used in industrial automation, electronic control systems, automotive electronics, and educational environments, where reliable embedded control is paramount. It offers flexibility and legacy compatibility for diverse project needs.
Explore more Microchip Microcontrollers and components in the Electronics & Electricals category on EnvMart for comprehensive solutions.
