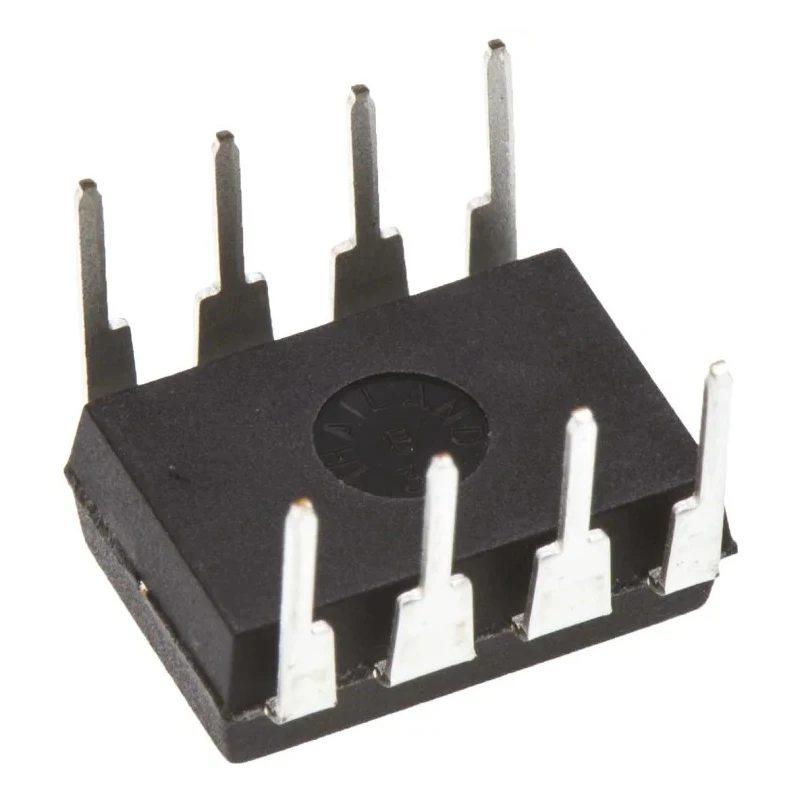

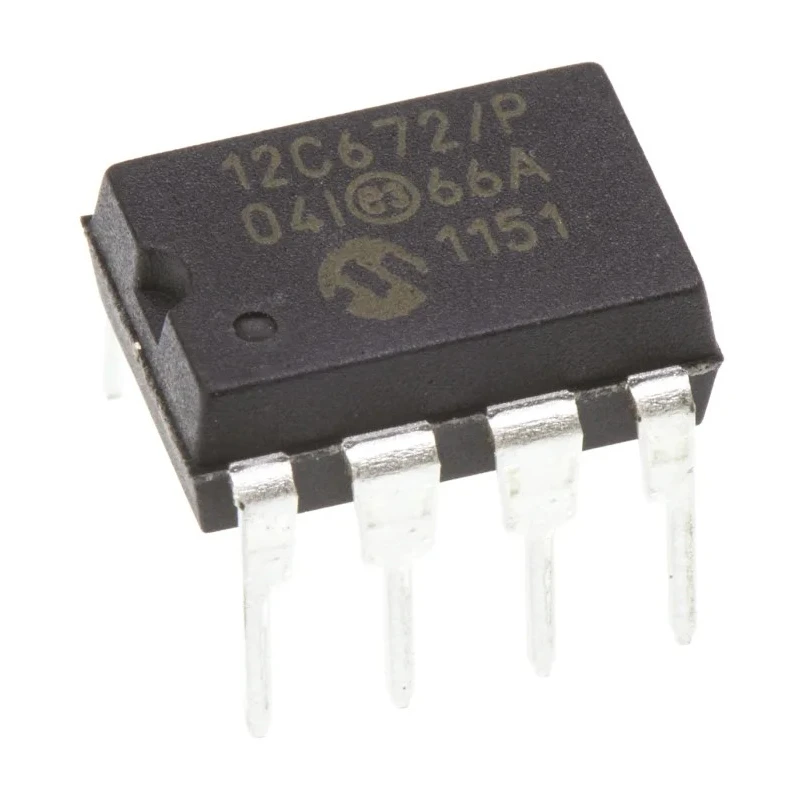

Microchip 8-bit PIC Microcontroller PIC12C672-04I/P, 4 MHz EPROM, 8-Pin PDIP

Microchip PIC12C672-04I/P is an 8-bit PIC microcontroller designed with Microchip's PIC architecture integrated into a compact 8-pin PDIP package. It runs up to 4 MHz clock frequency and includes a 3.5kB EPROM for program memory storage and 128 bits of RAM, supporting embedded system applications.

This microcontroller features an internal precision 4 MHz RC oscillator providing ±1% accuracy, making it suitable for reliable timing operations without external components. The device supports SPI interface and includes 25 programmable I/O pins, 2 analogue comparators, and 4-channel 8-bit ADCs for analog signal processing needs.

The PIC12C672 also offers an 8-bit real-time timer/counter with an 8-bit programmable prescaler, enhancing timing and control capabilities. Its architecture is based on a RISC instruction set with interrupt capabilities and a hardware stack of eight levels, enabling efficient and responsive embedded control.

The microcontroller supports in-circuit programming, enabling reprogramming after assembly. It is designed for through-hole PCB mount with a small form factor of 9.78 mm length, 6.6 mm width, and 3.68 mm height, suitable for compact embedded devices.

Operating voltage ranges from 1.8V minimum up to 5.5V maximum, with a maximum power dissipation rating of 700 mW. It is qualified for automotive applications and compliant with ISO/TS 16949 standards, operating reliably between -40°C and 85°C ambient temperatures.

Operates at 4 MHz CPU frequency with a precision RC oscillator. 3.5kB EPROM program memory and 128-bit RAM for application flexibility. 25 programmable I/O pins for diverse input/output control. Integrated 2 analogue comparators and 4-channel 8-bit ADC for analog interfacing.

8-bit real-time timer with programmable prescaler for timing tasks. RISC architecture with interrupt capability and deep hardware stack. Through-hole mounting 8-pin PDIP package with compact dimensions. Wide operating voltage from 1.8V to 5.5V and low power dissipation.

Automotive standard compliance ISO/TS 16949 ensures reliability. Wide temperature range from -40°C to +85°C for industrial use.

This Microchip PIC12C672-04I/P microcontroller is ideally suited for industrial, automotive, laboratory, and embedded design applications requiring low pin count microcontrollers with onboard analog and timing capabilities. It supports legacy designs while offering precision and flexibility in small footprint packages. Explore our comprehensive range of Microcontrollers to find devices tailored for your specific engineering requirements.
