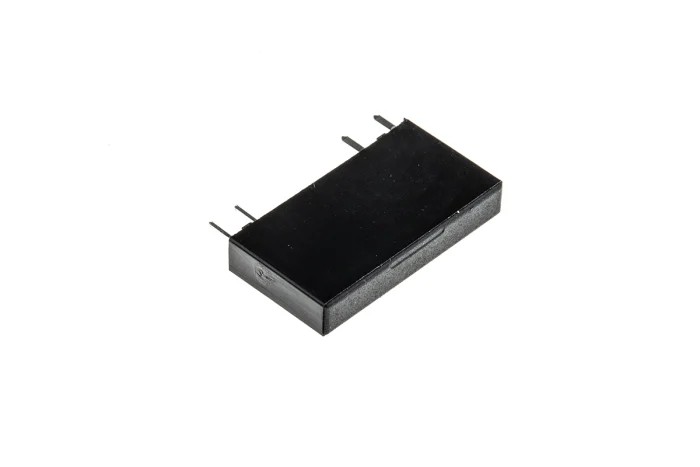

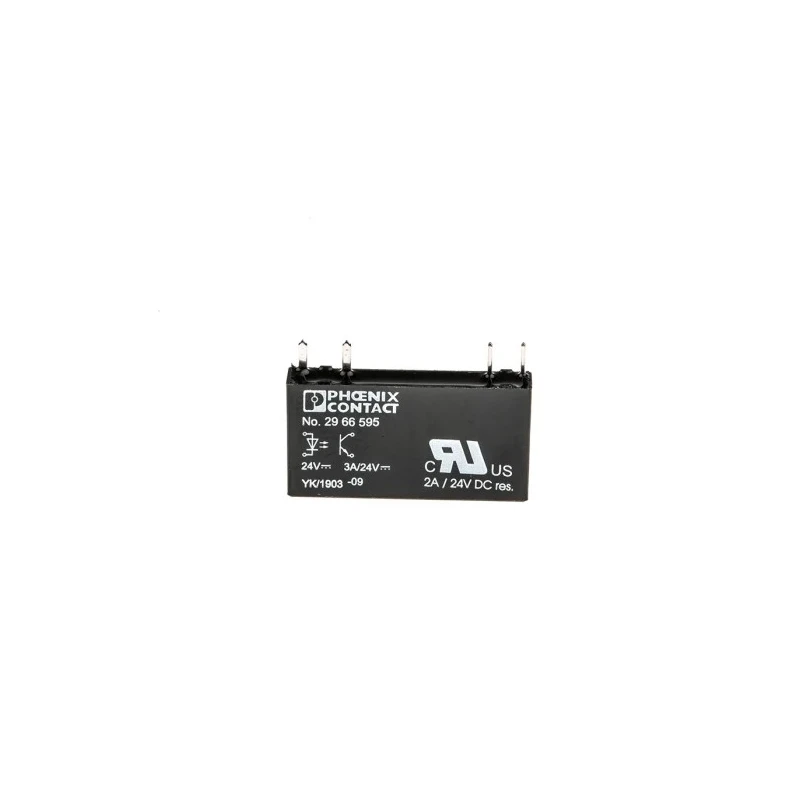

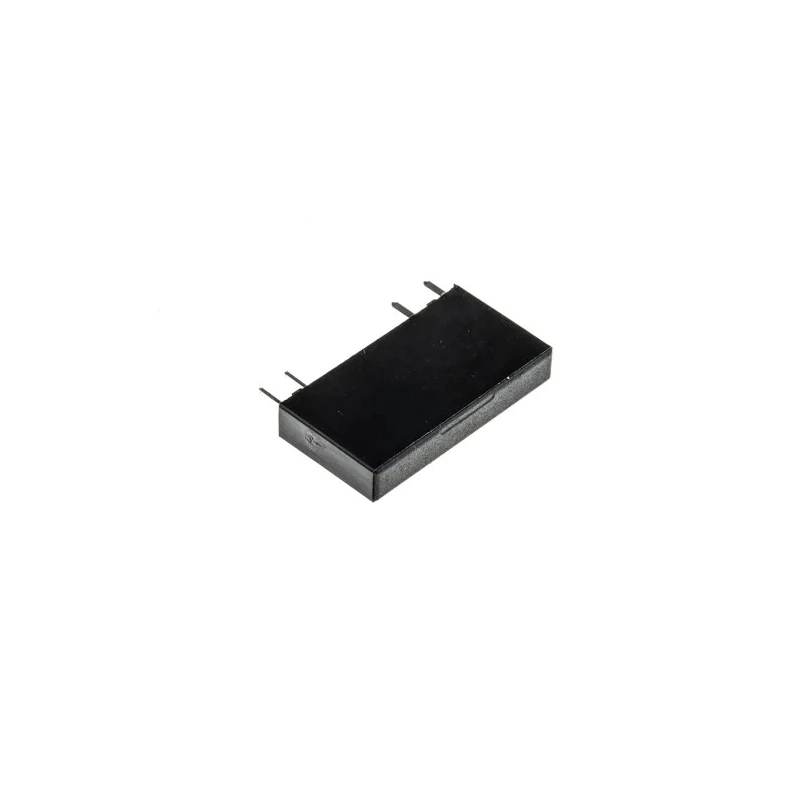

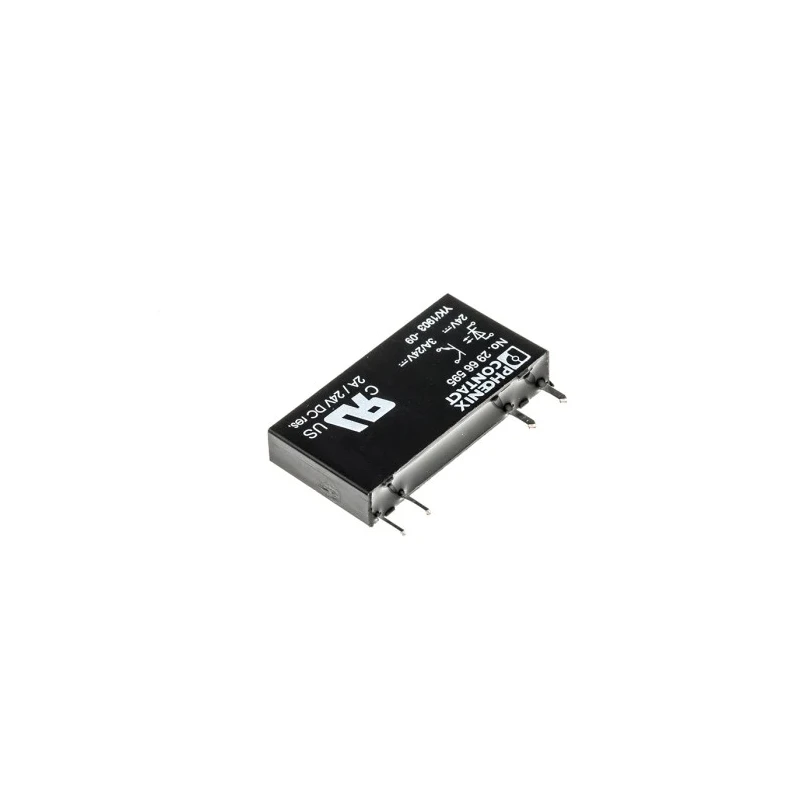

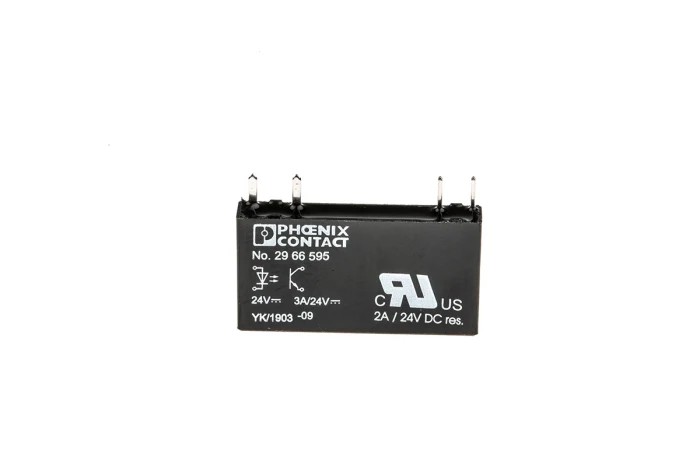

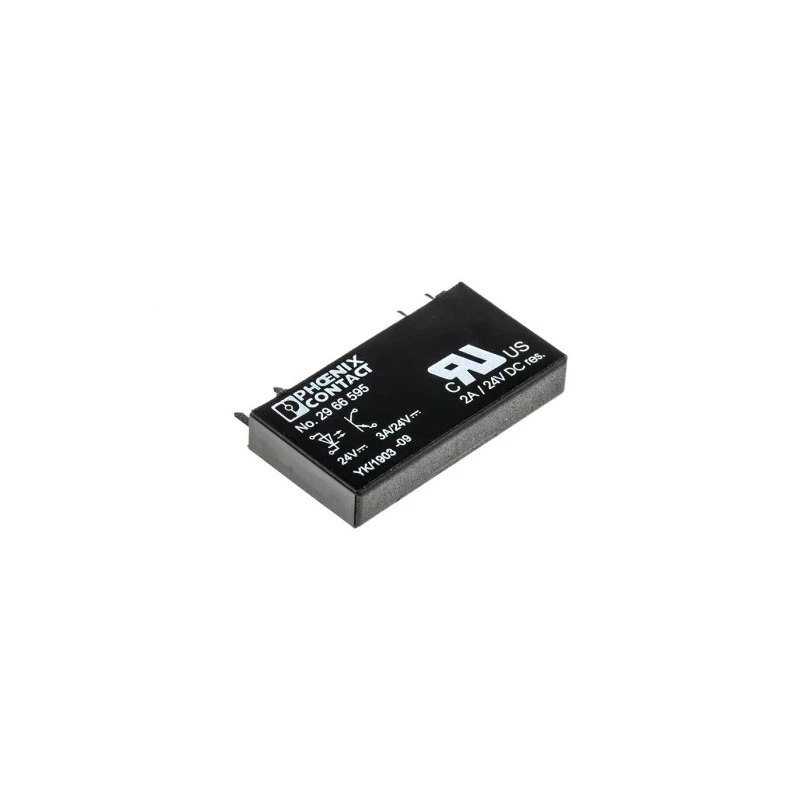

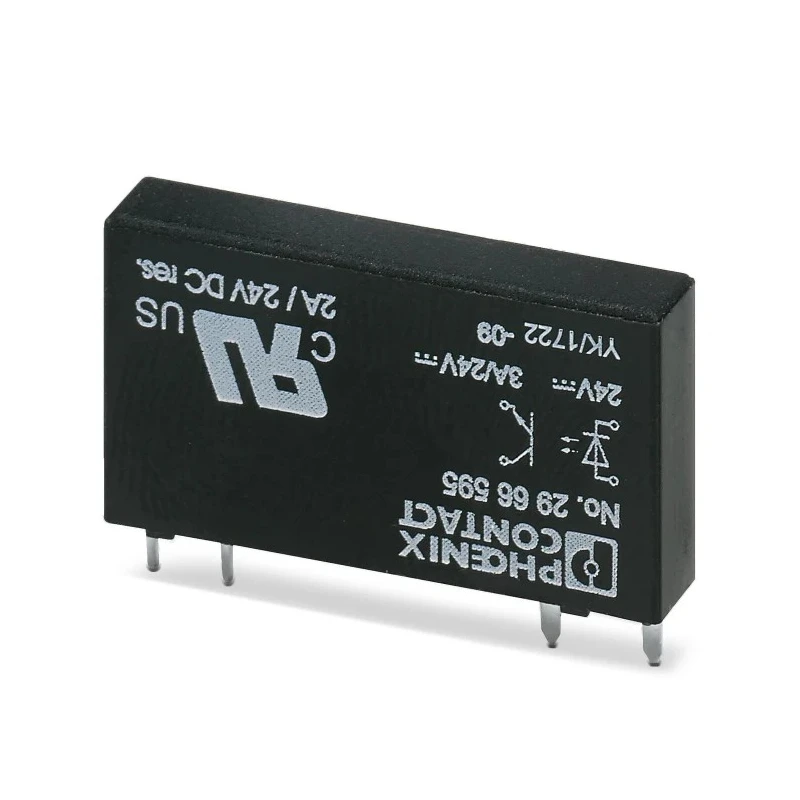

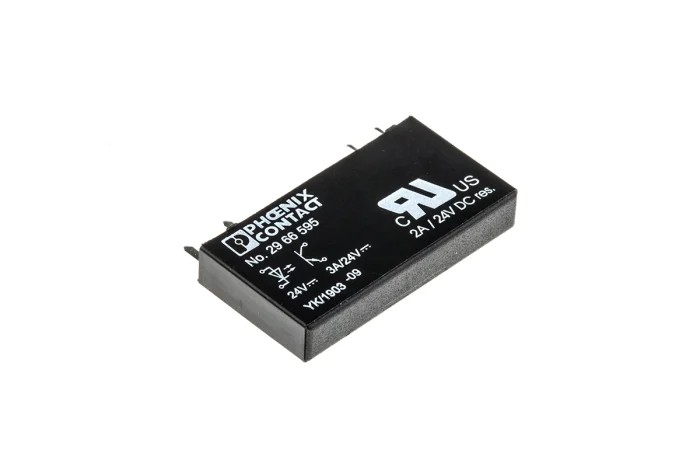

Phoenix Contact 2-Series Solid State Relay, PCB Mount, 24 V Load, SPST, Through Hole Terminal, OPT-24DC/24DC/2 2966595
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Phoenix Contact |
| Height | 28mm |
| Length | 15mm |
| Model | 2966595 |
| Width | 5mm |
| Mount Type | PCB |
| Output type | Current/Voltage |
| Series | OPT-24DC/24DC/2 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Standards/Approvals | UL, cUL |
| Maximum Load Voltage | 24V |
Key Features
- The relay supports a maximum load voltage of 24V DC.
- It is mountable in any position to suit various PCB designs.
- Operates reliably between -25°C and 60°C ambient temperature.
- Typical input current of 7mA ensures low power consumption.
- Complies with UL and cUL standards ensuring safety and quality.
- Its small dimensions (5 mm width, 28 mm height, 15 mm length) save PCB space.
- Suitable for use in multiplexers, medical equipment, and I/O subsystems.
Product Description
The relay operates with a contact configuration of SPST and through hole terminals, making it ideal for integration into compact industrial control systems.
This solid state relay excels in harsh industrial conditions with an operating temperature range from -25°C to +60°C, ensuring stable performance. Its compact form factor with dimensions 5 mm wide, 28 mm high, and 15 mm long makes it a space-saving solution for dense electronics assemblies.
Designed to switch loads without mechanical parts, it minimizes wear and maintenance. The device requires a typical input current of just 7mA, enhancing energy efficiency in automation systems. Conformance to UL and cUL safety standards and voltage testing up to 2.5kV offer reliable protection against electrical surges and electrical noise.
These characteristics make the OPT-24DC/24DC/2 relay highly suited for industrial automation, medical instrumentation, multiplexers, and input/output subsystem applications. Its robust build quality combined with signal conditioning features ensures precise and dependable control of DC loads in rigorous environments.
The relay supports a maximum load voltage of 24V DC. Mount type: PCB mountable for easy installation on circuit boards. Terminal type features through hole for secure connections. Operating temperature ranges from -25°C to 60°C ensuring durability.
Complies with UL and cUL standards for safety certification. Contact configuration of SPST (Single Pole Single Throw) for simple switching. Voltage tested up to 2.5 kV offering protection against surges. Compact size allows integration in space-constrained setups.
For engineers and industrial users looking for dependable solid state relay solutions, the Phoenix Contact OPT-24DC/24DC/2 offers a durable and efficient choice. Its robust design and high-quality standards align with the demanding needs of industrial, laboratory, and automation applications.
Explore further Solid State Relay options and components within the Electronics & Electricals category at EnvMart for optimized industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load voltage for this relay is 24V DC.
This model features a contact configuration of SPST (Single Pole Single Throw).
The relay has dimensions of 5 mm in width, 28 mm in height, and 15 mm in length.
It operates reliably between -25°C and 60°C.
This relay uses through hole terminals for secure connections.
It complies with UL and cUL safety standards.
The typical input current is 7mA, which ensures low power consumption.
It is suitable for use in multiplexers, medical equipment, and I/O subsystems.
The relay is manufactured in Hungary.
This solid state relay is voltage tested up to 2.5 kV, offering protection against electrical surges.
It is designed for PCB mounting, allowing for easy installation on circuit boards.
The output type of this relay is current/voltage.
