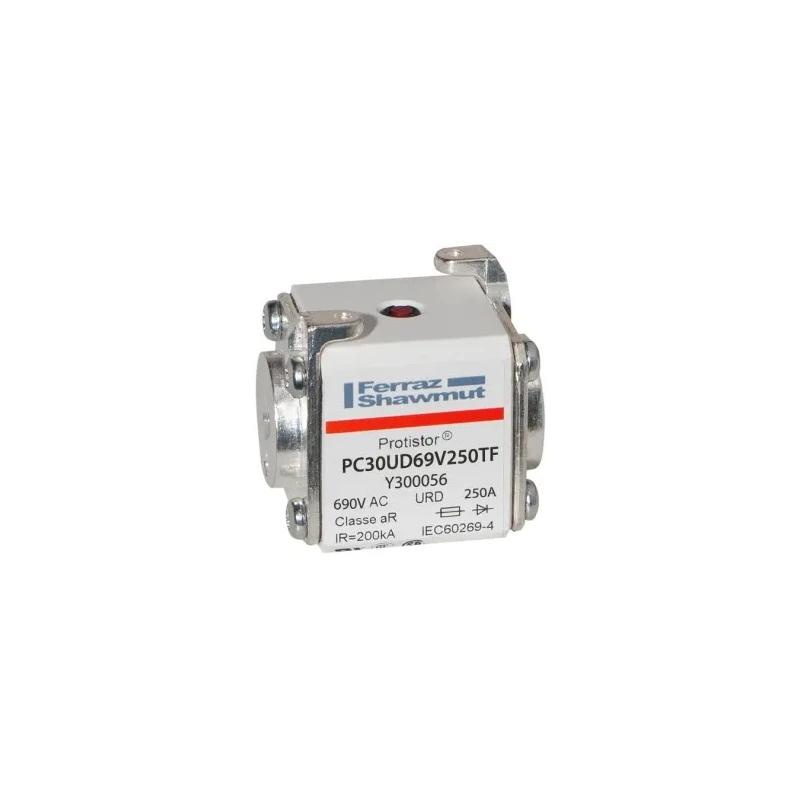

Mersen 250A Size 30 FF Square Body Fuse 700V Y300056 / PC30UD69V250TF
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 700V |
| Brand | Mersen |
| Height | 46.5mm |
| Length | 40mm |
| Model | Y300056 / PC30UD69V250TF |
| Width | 50.6mm |
| Overall Length | 82mm |
| Current Rating | 250A |
| Fuse Size | 30 |
Key Features
- Protistor® fuse with ultra-rapid operation suitable for semiconductor protection.
- Features striker for micro-contact actuation ensuring precise triggering.
- Threaded fixing studs for secure installation.
- Breaking capacity of 200kA at 660Vac enhances safety and reliability.
- Complies with industry standards VDE636-23 and IEC269-4 for quality assurance.
- Compact design with overall length 82 mm, length 40 mm, width 50.6 mm and height 46.5 mm.
- Manufactured in Mexico with new product condition.
Product Description
The Mersen Y300056 / PC30UD69V250TF is a high performance 250A size 30 FF Square Body Fuse engineered to provide ultra-rapid interruption capabilities primarily for semiconductor protection applications. Operating at 700V AC, this Protistor® fuse features a striker for micro-contact actuation, delivering precise and reliable triggering to avoid damage in sensitive circuits.
Its threaded fixing studs ensure firm and stable installation, making it suitable for industrial, electrical automation, and semiconductor manufacturing environments. The fuse possesses a high rupture capacity rated at 200kA at 660Vac, making it effective in high fault current conditions.
The fuse complies with international standards VDE636-23 and IEC269-4, confirming its quality and safety credentials for critical electrical systems.
Dimensionally, it has an overall length of 82 mm, width of 50.6 mm, height of 46.5 mm, and a body length of 40 mm, offering compact form factor for integration into various fuse holders and panels.
Manufactured in Mexico and supplied in new condition, this fuse is ideal for electrical engineers and technicians who require rapid response fuses for industrial automation, power distribution systems, and semiconductor protection use cases.
Protistor® fuses with ultra-rapid operation for semiconductor protection. Striker for micro-contact actuation for accurate operation. Threaded fixing studs provide secure mounting. Breaking capacity of 200kA at 660Vac ensures system safety.
Compliance with VDE636-23 and IEC269-4 standards. Compact dimensions enable easy installation. Suitable for industrial and electrical automation applications. Explore the Electronics & Electricals category on EnvMart to find more reliable Fuses and circuit protection devices tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 250A, making it suitable for high-capacity applications.
The fuse operates at a voltage rating of 700V AC, suitable for various electrical systems.
The overall dimensions are 82 mm in length, 50.6 mm in width, and 46.5 mm in height, with a body length of 40 mm.
It has a breaking capacity of 200kA at 660Vac, enhancing safety in high fault current conditions.
The fuse complies with VDE636-23 and IEC269-4 standards, ensuring quality and safety in critical applications.
This model is designed primarily for semiconductor protection, as well as industrial and electrical automation environments.
It features threaded fixing studs that provide secure mounting, ensuring stable installation in various systems.
The striker is for micro-contact actuation, ensuring precise triggering to protect sensitive circuits from damage.
This fuse is manufactured in Mexico, ensuring compliance with international quality standards.
This model is classified as a size 30 fuse, which is compatible with specific fuse holders and panels.
Its ultra-rapid operation and high rupture capacity contribute to its reliability in protecting electrical systems.
It uses a micro-contact actuation mechanism for accurate and reliable operation in sensitive applications.
