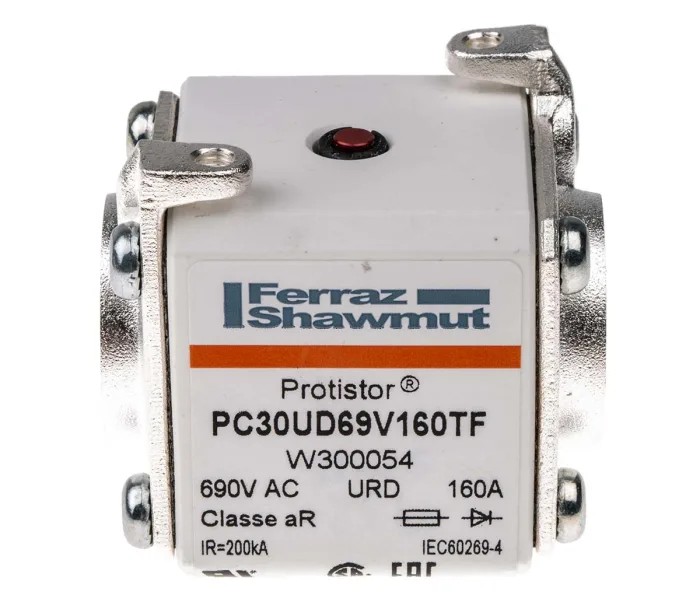

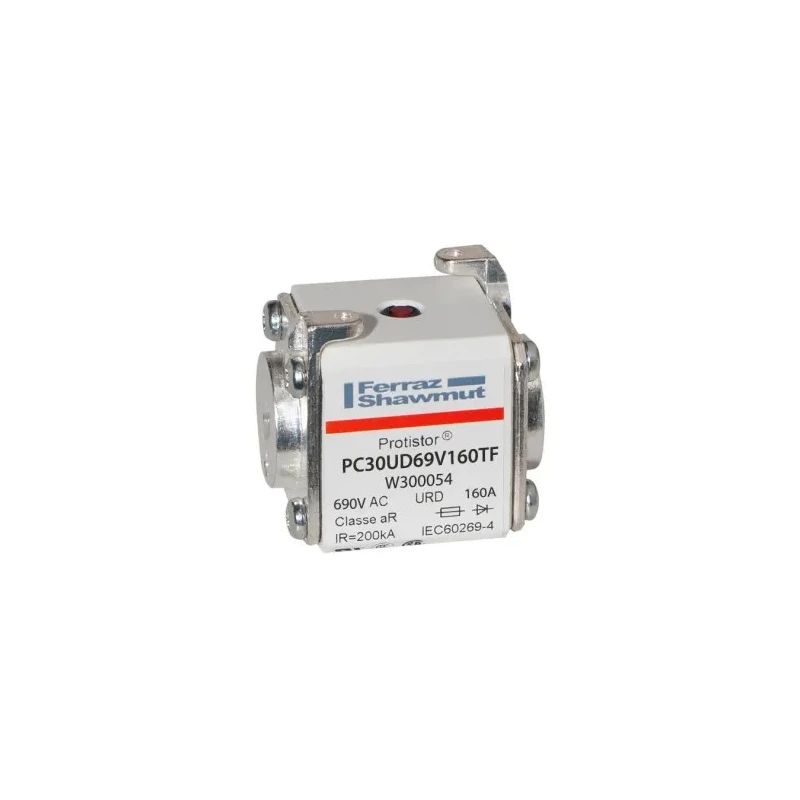

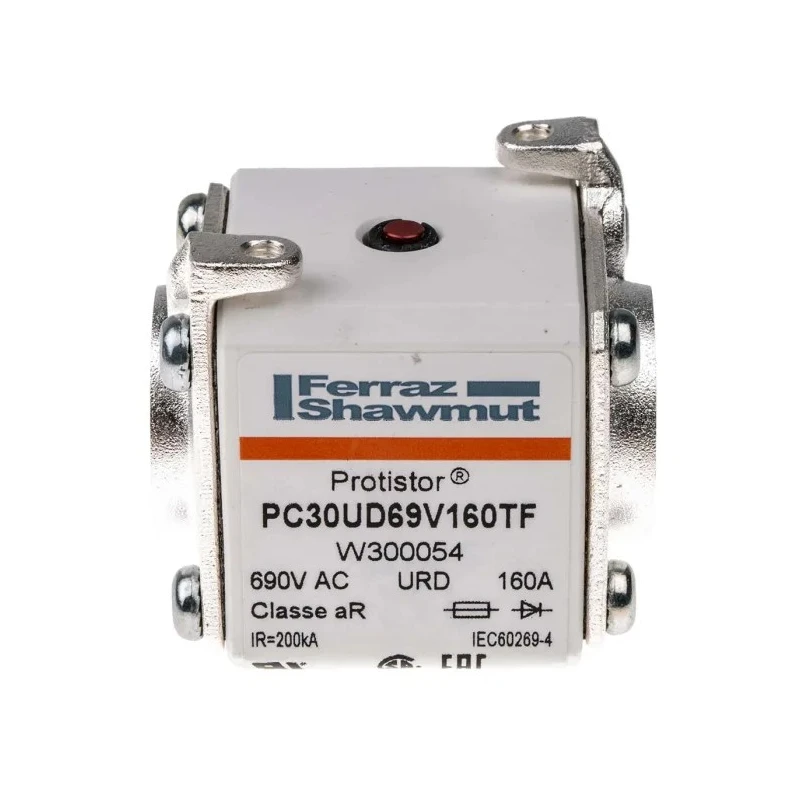

Mersen 160A Size 30 FF Square Body Fuse 700V W300054 / PC30UD69V160TF

The Mersen W300054 / PC30UD69V160TF is a high-performance 160A size 30 FF (fast fuse) square body fuse designed specifically for semiconductor protection in demanding electrical and industrial environments. Operating at 700V, it provides rapid disruption of fault currents to protect sensitive components, enhancing system reliability.

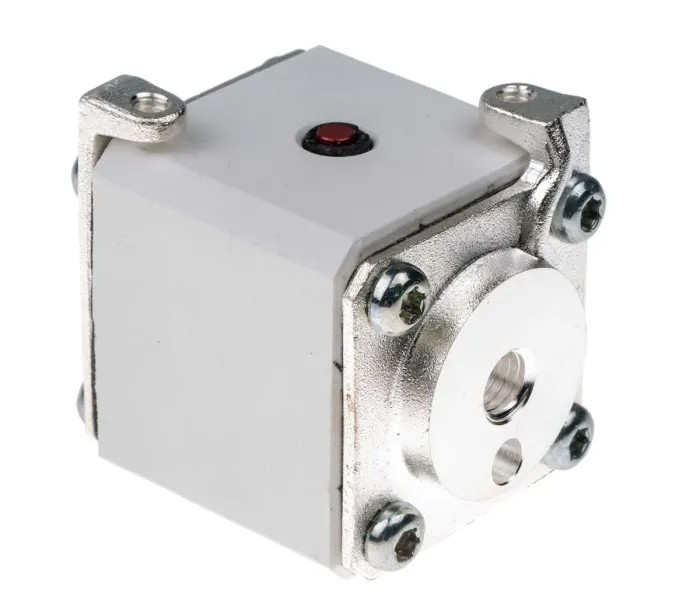

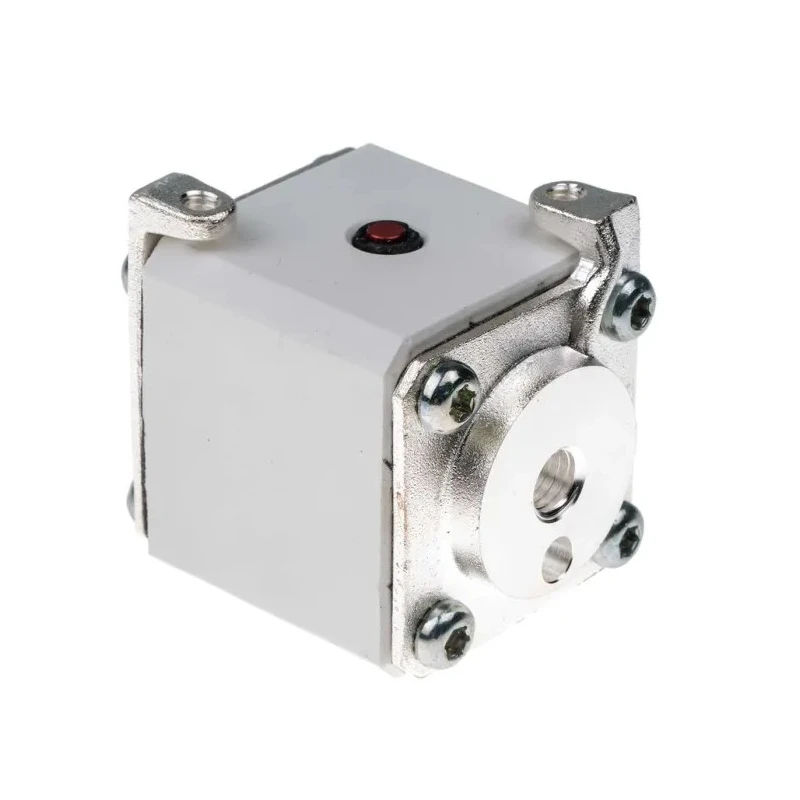

Constructed with Protistor® technology, this fuse body offers robust mechanical durability and efficient thermal characteristics. It incorporates threaded fixing studs which ensure secure mounting and precise micro-contact actuation with striker mechanism.

With an overall length of 82 mm and compact width and height, it suits installations where space optimization is critical. This fuse has a high rupture capacity of 200 kA at 660 VAC, making it capable of handling severe fault conditions without damage, ensuring safety and system integrity.

Manufactured in Mexico, it complies fully with international standards VDE636-23 and IEC269-4, confirming its suitability for global industrial usage including industrial automation, electrical panels, semiconductor equipment, and power distribution applications.

This fuse features a Protistor® square body design for enhanced durability and performance. Fast fuse (FF) speed rating allows ultra-rapid operation for semiconductor protection. Rated current capacity of 160A and operating voltage of 700V.

Threaded fixing studs provide secure mounting and reliable electrical connection. High fault clearing capability with 200 kA breaking capacity at 660 VAC. Compact dimensions: 82 mm length, 40 mm length body, 50.6 mm width, and 46.5 mm height.

Compliant with VDE636-23 and IEC269-4 international standards. Manufactured in Mexico ensuring quality and reliability.

This fuse is ideal for use in industrial manufacturing, semiconductor machinery, electrical distribution systems, and power electronics protection. Its fast response and robust design help prevent equipment damage and production downtime.
