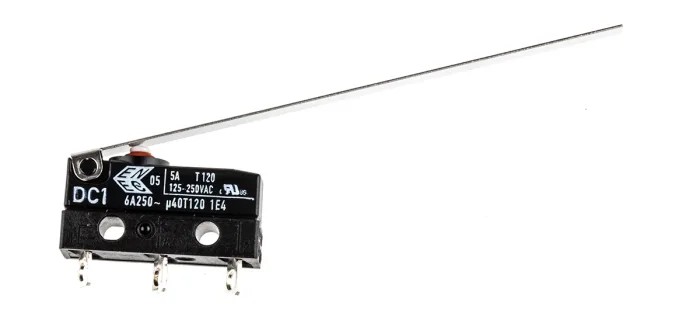

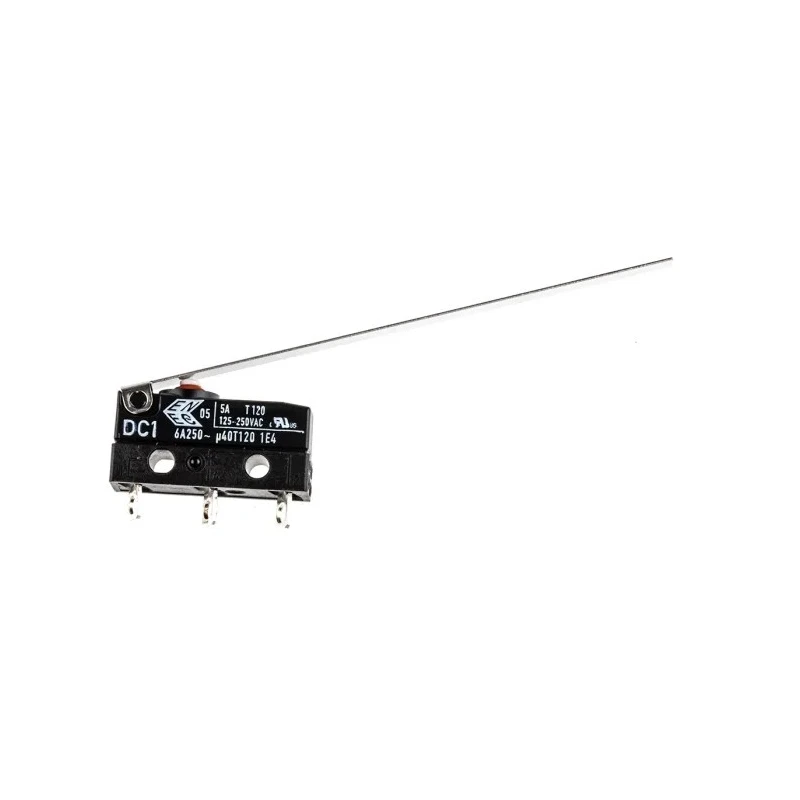

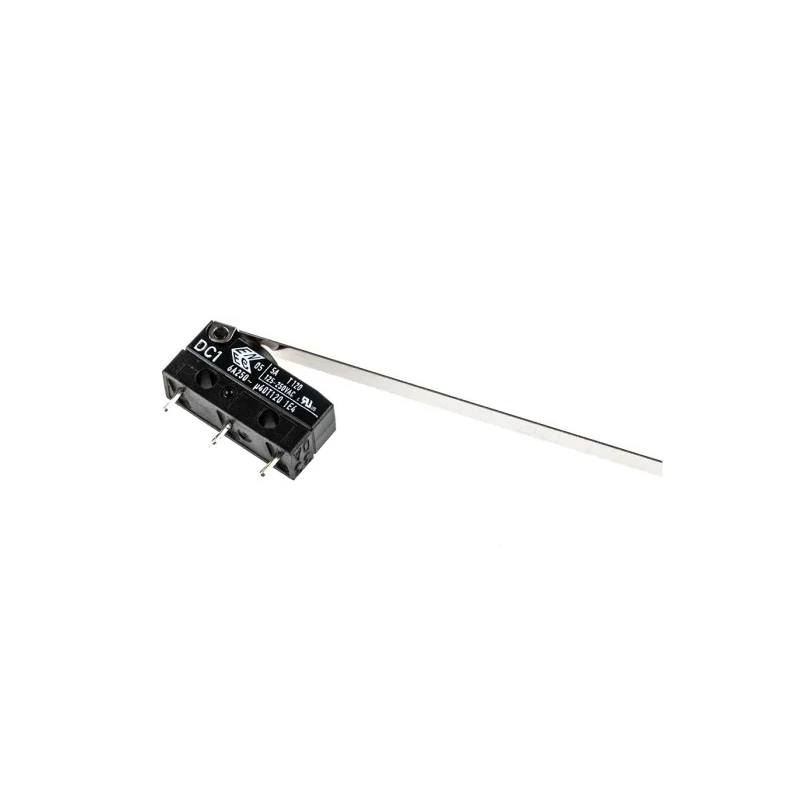

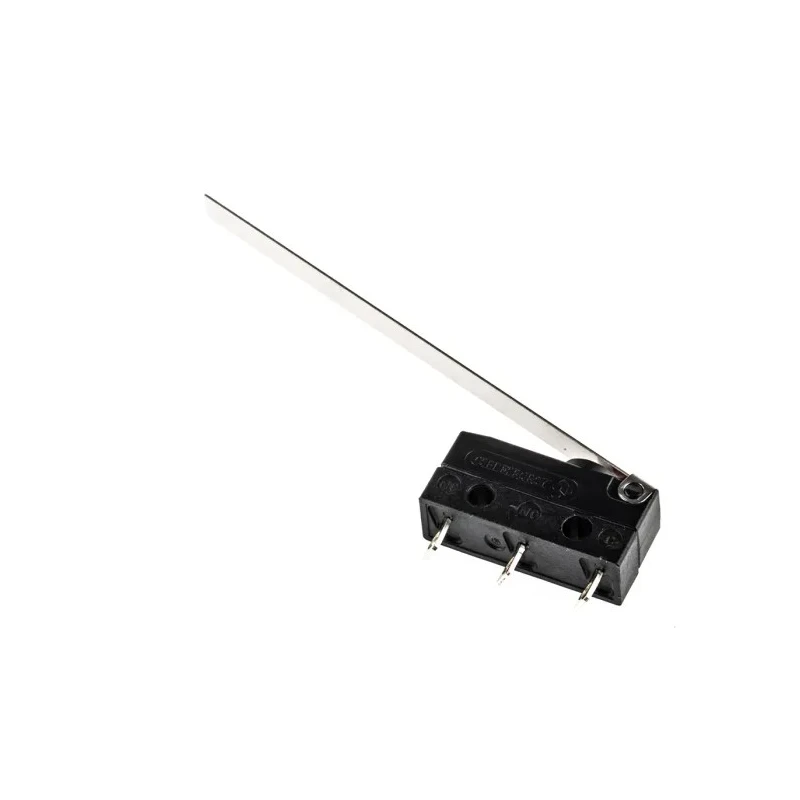

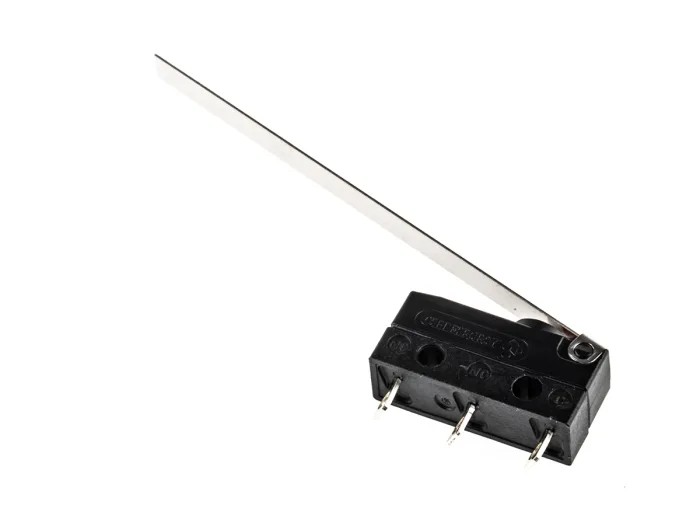

ZF Long Hinge Lever Micro Switch, Solder Terminal, 6A, 250 V AC, SPDT, IP6K7 DC1C-A1LD

ZF DC1C-A1LD is a miniature micro switch with a long hinge lever actuator, designed for reliable electrical switching at 6A, 250 V AC, featuring a Single Pole Double Throw (SPDT) contact configuration. Its robust housing consists of Polyethylene Terephthalate and Polybutylene Terephthalate (PET/PBT), providing durability in demanding industrial environments.

Operating within a wide temperature range from -40°C to 120°C, this micro switch excels in extreme conditions. Its mechanical endurance exceeds 1,000,000 operations, ensuring longevity in applications requiring frequent actuations.

Rated IP6K7, the switch offers exceptional protection against dust and high-pressure water jets, making it suitable for industrial, automation, and machinery control applications where environmental resilience is critical.

The solder terminal design facilitates secure and efficient wiring integration. With an operating force of 200N, it ensures precise and consistent actuation feedback. ZFs Miniature Micro Switch series DC delivers high repeat accuracy and reliability for industrial automation, manufacturing systems, HVAC controls, and safety devices.

The actuator is a long hinge lever enabling smooth and sensitive mechanical operation. The switch contact current is rated at 6A for robust electrical performance. Housing material is comprised of PET and PBT plastics for enhanced durability.

Supports voltage rating of 250 V AC suited for most industrial controls. Operating force requirement is 200N, balancing sensitivity and robustness. IP6K7 certification certifies resistance to dust ingress and water jets.

Mechanical life expectancy exceeds 1 million cycles for reliable longevity. Complies with RoHS standards for environmental protection. Manufactured in Germany assuring quality and manufacturing standards. Explore ZF Micro Switches for advanced switching solutions in electrical and control systems on EnvMart.
