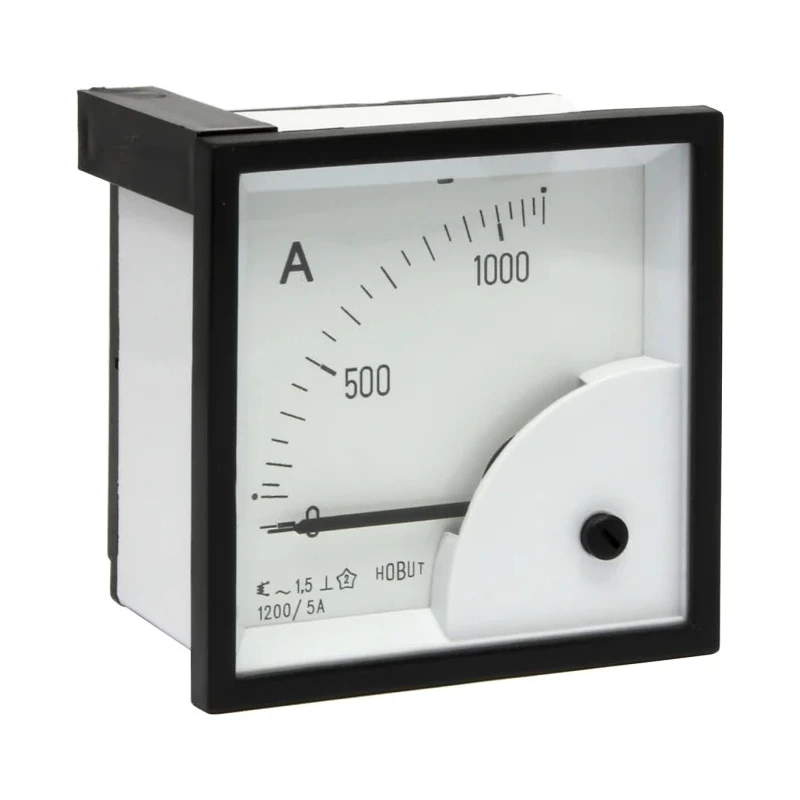

HOBUT Analogue Panel Ammeter 100 A AC/DC DIN Moving Iron Accuracy Class 1.5 D72SD5A/0-1200A

HOBUT D72SD5A/0-1200A Analogue Panel Ammeter 100 A AC/DC is a precision instrument designed for industrial automation, process control, and electrical measurement. It employs a CT operated DIN Moving Iron movement providing reliable readings with an accuracy class of 1.5. Suitable for both AC and DC current measurements up to a maximum of 100 A, the ammeter supports frequencies ranging from 15 Hz to 400 Hz.

Manufactured in the United Kingdom, this ammeter complies with stringent standards including DIN 43700, UL94V0, DIN 43802, BS 89, IEC 51, and UL94V1, ensuring excellent quality and safety.

The device features a flame retardant case rated to UL94V0 and operates effectively within a temperature range of -25°C to 40°C, making it suitable for various industrial environments.

Mounting is facilitated through panel cut outs sized 68 x 68 mm or 92 x 92 mm, accommodating most standard installation needs. Terminal covers are supplied separately to enhance safety during electrical connections.

This analogue ammeter is compatible with current transformers having 5A secondaries, such as the stock number 313-839. It is designed for robustness with an overload rating of 10 times full scale deflection lasting up to 5 seconds, providing resilience against transient overloads.

CT operated DIN Moving Iron ammeter with a 90° scale arc reaching 100 A maximum. Conforms to international and national standards for process control accuracy and safety. Flame retardant casing and wide operating temperature suitable for industrial environments.

Dual panel cut out sizes for flexible mounting options. Compatible with 5A secondary current transformers for integration into existing setups. Supplied with mounting brackets for secure installation.

Ideal for electrical, automation, industrial manufacturing, and process control applications requiring reliable AC/DC current measurements. Explore more Analogue Panel Ammeters and measurement instruments on EnvMart to enhance your industrial panel setups.
