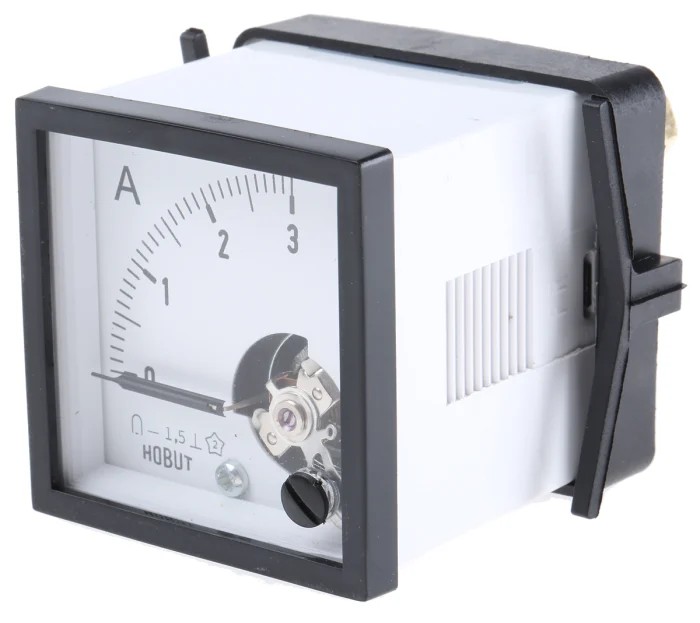

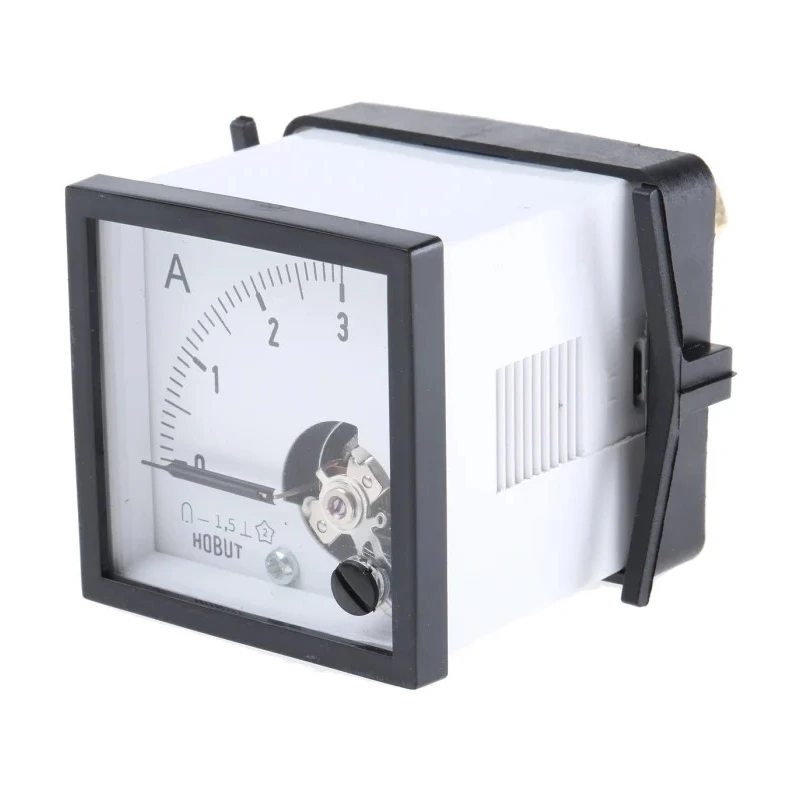

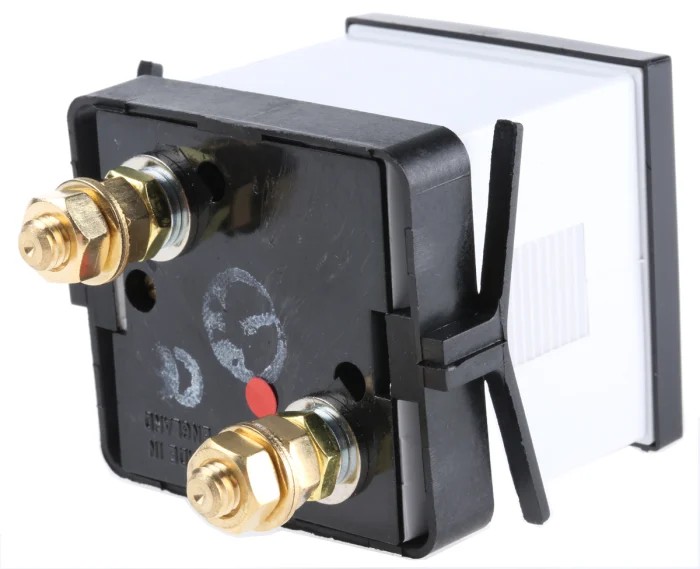

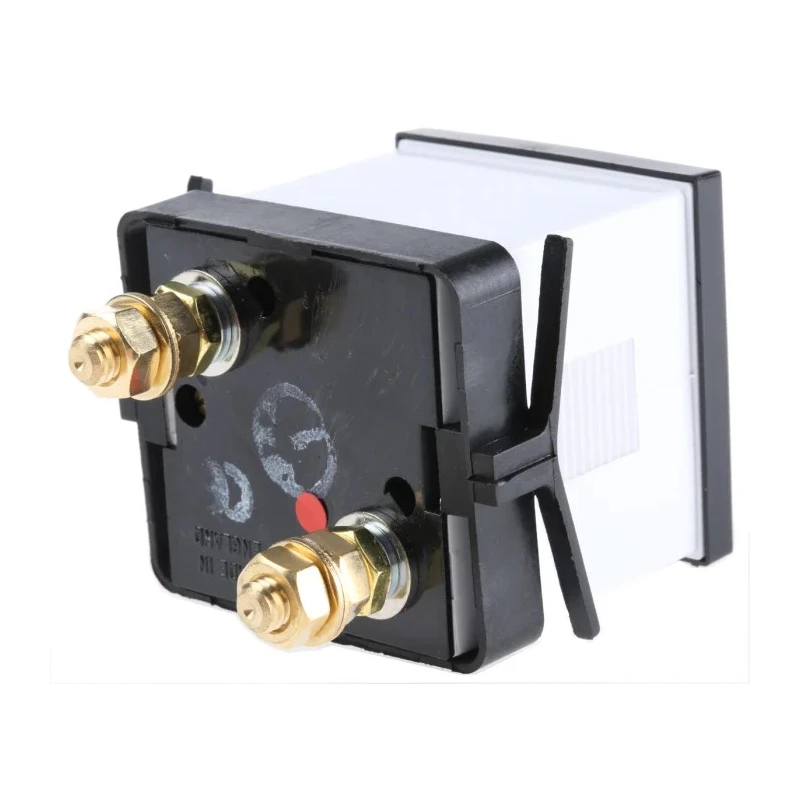

HOBUT Analogue Panel Ammeter DC, 48 mm x 48 mm Cutout, Class 1.5 Accuracy, Moving Coil, Model D48MC

HOBUT D48MC Analogue Panel Ammeter DC is engineered for industrial and laboratory applications requiring precise DC current monitoring with a compact footprint of 48 mm by 48 mm cutout. The moving coil technology ensures sensitive and stable readings with a Class 1.5 accuracy rating compliant with internationally recognized BS89 and IEC51 standards.

The meter features a flame-retardant plastic case certified to UL94V0, enhancing safety in demanding electrical environments. It operates efficiently over a wide temperature range from -25°C to +40°C, making it suitable for varied ambient conditions.

Integrated mounting brackets facilitate robust installation on control panels, switchboards, and automation equipment. This model requires an external 75mV shunt (typically RS part number 257-307) to operate correctly, which must be ordered separately.

This analogue meter is ideal for applications in industrial process control, manufacturing equipment monitoring, electrical distribution systems, and laboratory instrumentation requiring reliable DC current measurement.

Accurate DC current measurement with moving coil element. Compact 48x48 mm cutout for panel installations. Flame-retardant casing to UL94V0 for enhanced safety. Operating temperature range from -25°C to +40°C. Compliance with BS89, IEC51, DIN, and ES50-2 standards.

Mounting brackets included for secure fitting. Requires separate 75mV shunt for operation.

This HOBUT Analogue Panel Ammeter offers dependable performance for automation and control gear applications. Browse EnvMart's extensive selection of analogue meters and industrial instruments for comprehensive solutions.
