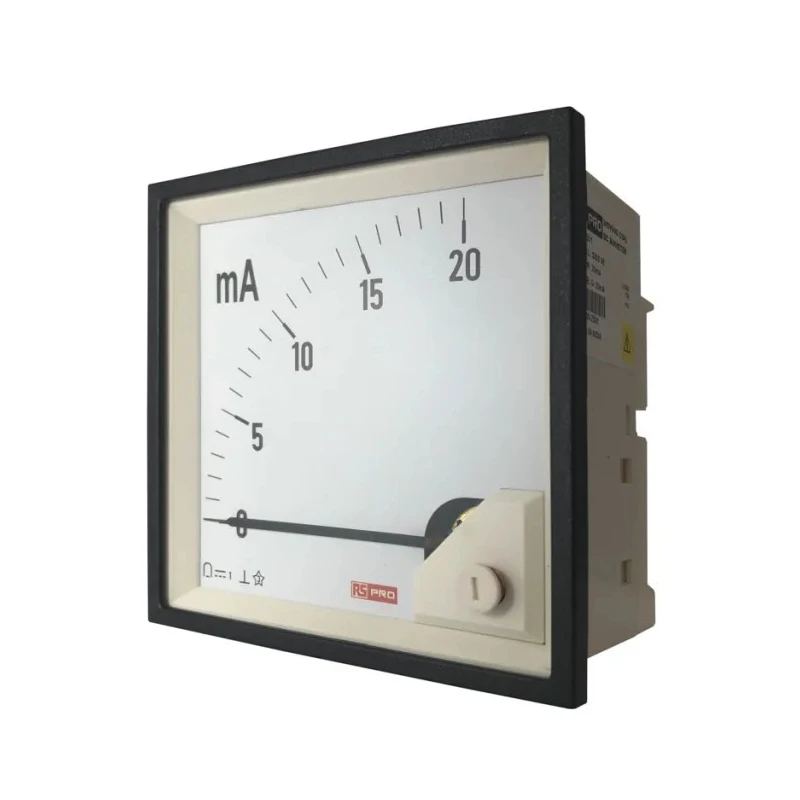

RS PRO Analogue Panel Ammeter 20 mA DC, 92 mm x 92 mm, 1 % Moving Coil 186-2501

The RS PRO 186-2501 Analogue Panel Ammeter is a high-quality DC current meter with a 20 mA measurement range and 1% accuracy, designed for industrial and laboratory process control. It features a precise moving coil mechanism with a permanent magnet, aluminium coil suspended on pivots, a hairspring, and a jewel mechanism, ensuring accurate linear and calibrated scale readings down to zero.

The instrument has a DIN standard panel cutout size of 92 mm by 92 mm and a depth of 54 mm, making it suitable for mounting in machinery control consoles and switchgear panels. The robust moulded polycarbonate square case ensures resistance to harsh environments and provides easy installation.

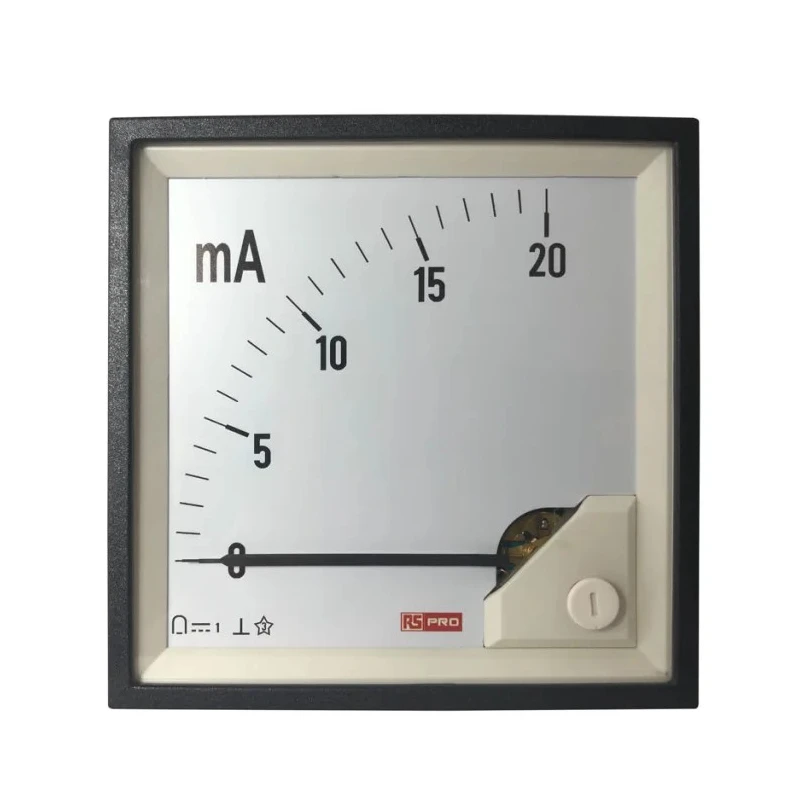

Its operating temperature range allows performance between -10°C and 65°C, making it suitable for a variety of industrial environments. The knife-edge type pointer offers clear and precise readings with a deflection of 0° to 90°, while the meter is protected by an overload capacity of 1.2 times nominal current during continuous operation and shock resistance of 15g for pulse durations up to 11 milliseconds.

The meter is compliant with multiple industry standards and certifications including UL 94 V-0, 2014/30/EC EMC directive, 2014/35/EC low voltage directive, CE certification, IP52 rating, EN 61010, VDE 0100-410:2018-10, IEC 529, and ISO 20653:2006-08, ensuring safety and quality compliance.

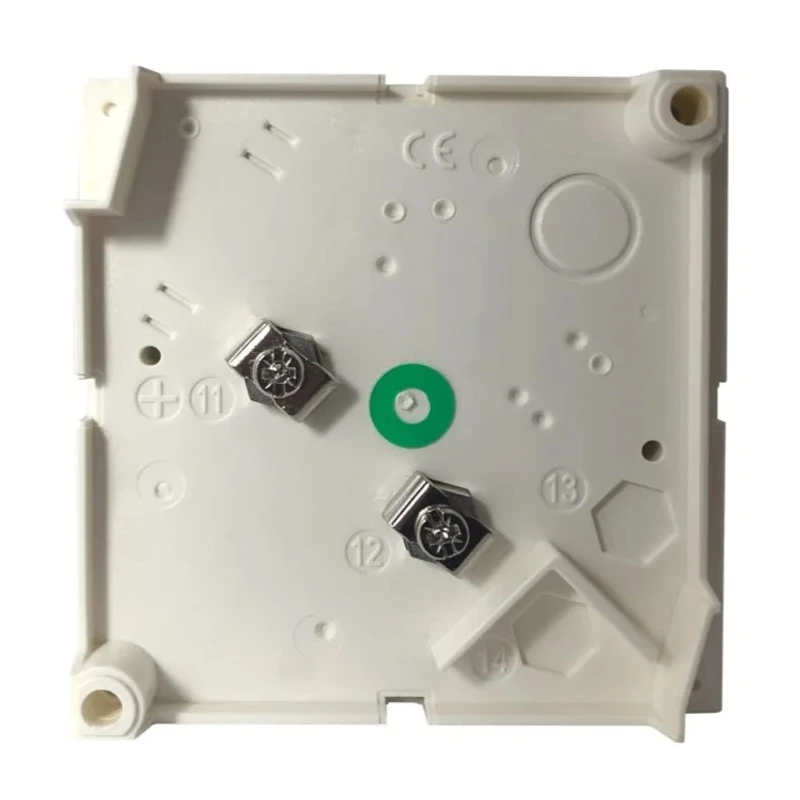

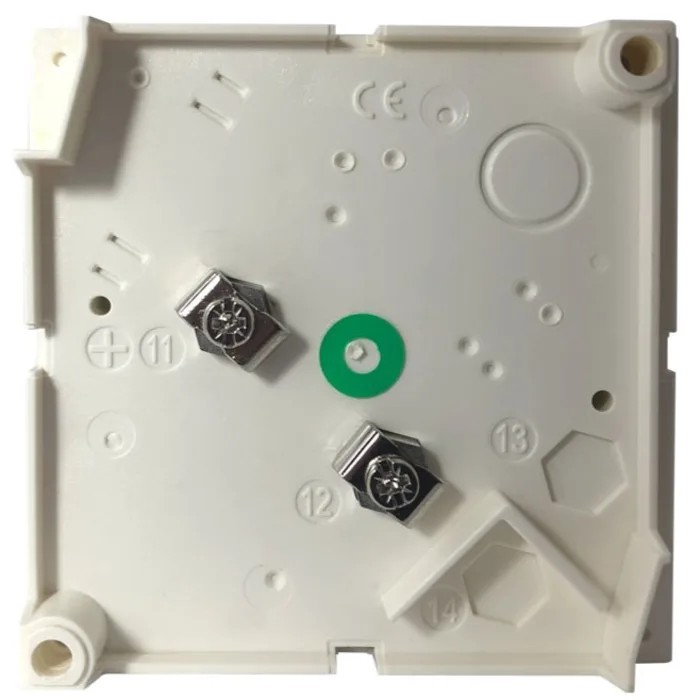

This ammeter’s nominal range of use spans from 15μA to 100A, making it versatile for different DC current measurement applications. It is designed to measure high currents accurately via separate shunts attached to the rear side of the meter, providing flexibility for varied industrial process control needs.

Features a 92 mm x 92 mm panel cutout for easy integration into control panels. Utilizes a moving coil for high-accuracy DC current measurement at 1% error. Robust polycarbonate casing suitable for industrial and laboratory applications.

Supports overload conditions and offers good shock resistance for durability. Certified under multiple international standards for safety and quality assurance. Suitable for environments with relative humidity less than 75%, non-condensing.

Ideal for machinery consoles, switchgear panels, and process monitoring systems. Comes from India, ensuring quality manufacturing standards. Part of the RS PRO series known for reliable industrial instrumentation.
