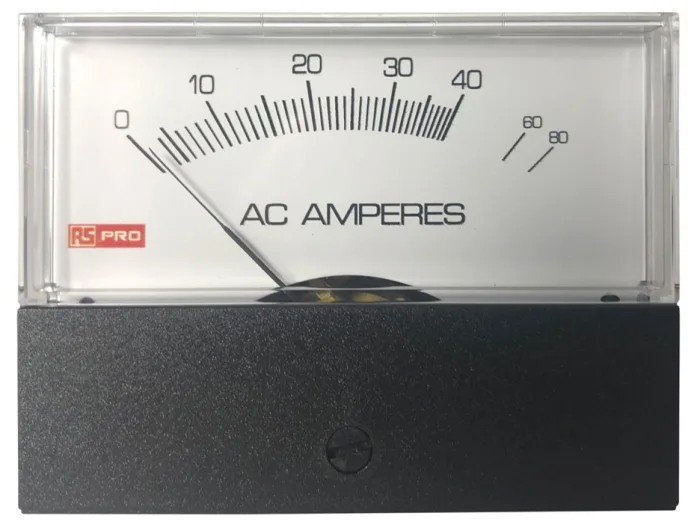

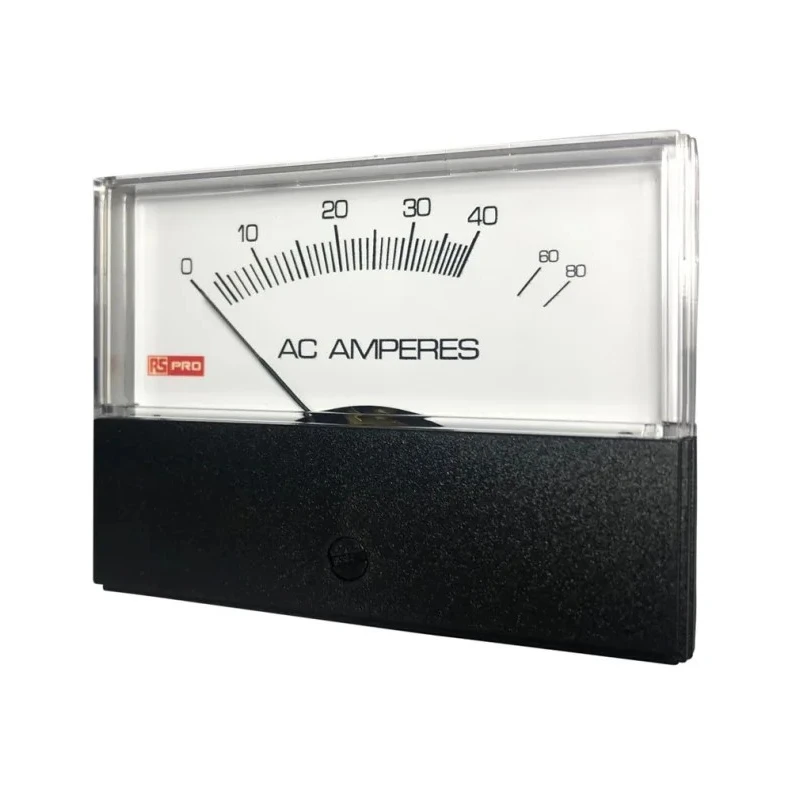

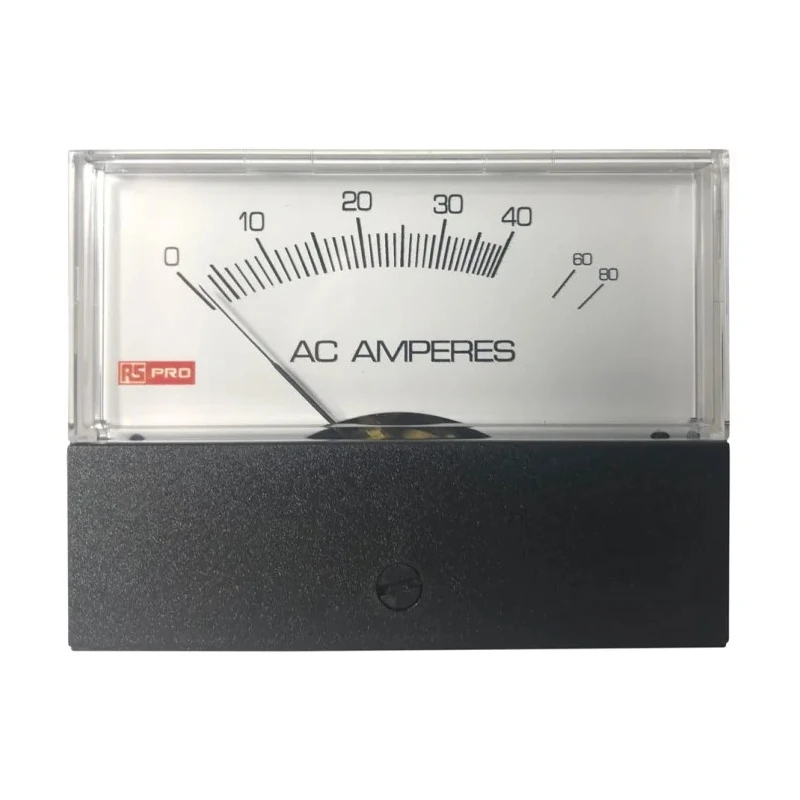

HOBUT RS PRO AC Analogue Panel Ammeter High Torque Pivot and Jewel Moving Coil and Moving Iron 76 mm x 74 mm 186-2517

HOBUT 186-2517 AC Analogue Panel Ammeter features a precise high torque pivot and jewel moving coil with moving iron construction. Its compact panel cutout dimensions are 76 mm height by 74 mm width with a depth of 45.7 mm. The device offers ±1.5% meter accuracy across an operating temperature range of 0°C to 60°C, optimized for reliable performance in electrical and industrial control environments.

This ammeter is designed with a moving iron clapper type repulsion mechanism incorporating a pivot, hairspring, and jewel movement, where the jewel is oil-filled for damping and the spring provides resilience. The meter is protected by a sturdy polycarbonate cover and includes a detachable lower fascia plate allowing convenient installation and maintenance.

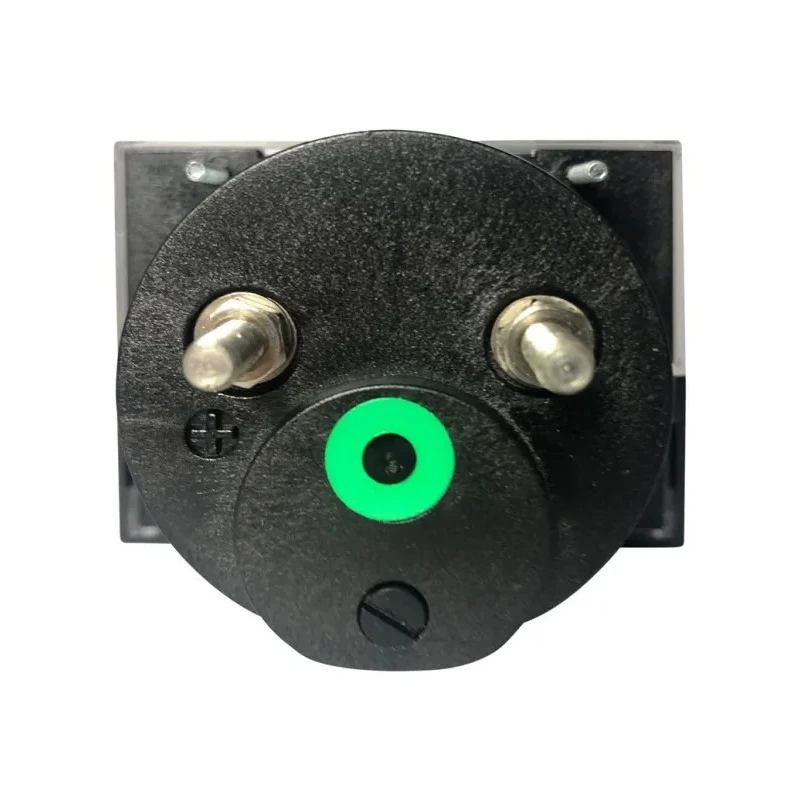

Its knife-edge pointer enhances measurement precision, supported by a rear zero adjuster for calibration. The meter operates reliably within 25% to 80% relative humidity. It can measure AC currents up to 80A within a maximum measurement capacity of 600 V and 1000 A. This versatile instrument is well-suited for applications in marine environments, electrical switchgear, distribution systems, embedded generation, energy management, building management, utility power monitoring, and motor monitoring.

The RS PRO ammeter meets a variety of certifications including UL 94 V-0, CE, IEC 61010-1, IEC 529 (IP42 rated), and complies with European EMC and low voltage directives ensuring safety and electromagnetic compatibility compliance.

This analogue ammeter is an excellent choice for industrial, electrical automation, laboratory, and HVAC applications requiring reliable AC current measurement with robust construction and high accuracy.

Measuring range from 0 to 80A input for AC current. Features a moving iron clapper type repulsion design with oil-filled jewel damping. Equipped with a polycarbonate protective cover for durability. Includes a detachable lower fascia plate for flexible installation.

Knife-edge type pointer ensures precise readings. Supports operating relative humidity from 25% to 80%. High torque pivot design enhances meter reliability. Rear zero adjuster for calibration accuracy. Suitable for marine, switchgear, distribution systems, and control panels.

Complies with multiple international standards including UL 94 V-O and IEC 61010-1. Explore a wide range of Analogue Panel Ammeters and electrical instruments at EnvMart for your industrial and technical measurement needs.
