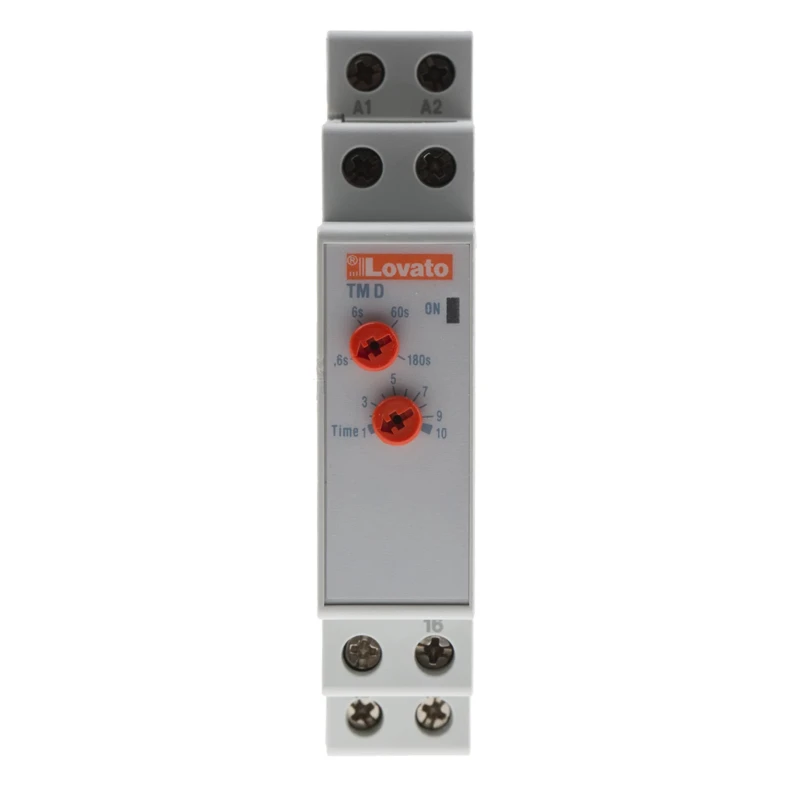

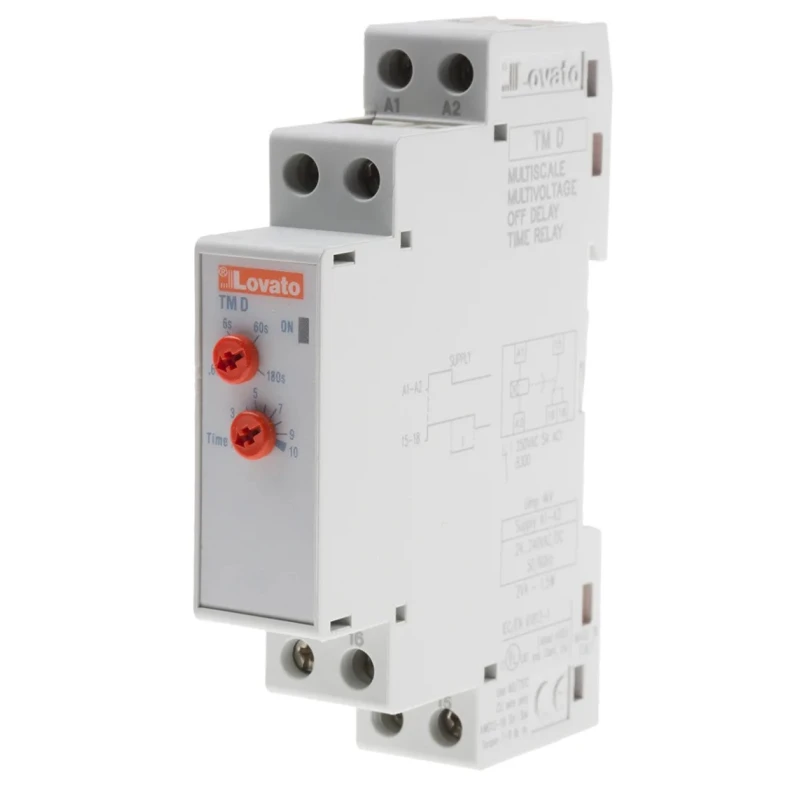

Lovato Electric DIN Rail Timer Relay, 2-Contact, 12 to 240 V dc 24V ac, 240 V ac, 0.06 to 180 s Multifunction TMD

Lovato Electric TMD DIN Rail Timer Relay is a versatile and reliable device designed for industrial automation and control applications requiring accurate timing functions. It supports supply voltages ranging from 12 to 240 V dc as well as 24 to 240 V ac, making it adaptable to a wide range of electrical systems.

The multifunction timer offers a timing range from 0.06 seconds up to 180 seconds, allowing precise control over sequential operations. With its two 16A SPDT contacts, this timer relay can switch circuits flexibly, making it suitable for many configurations.

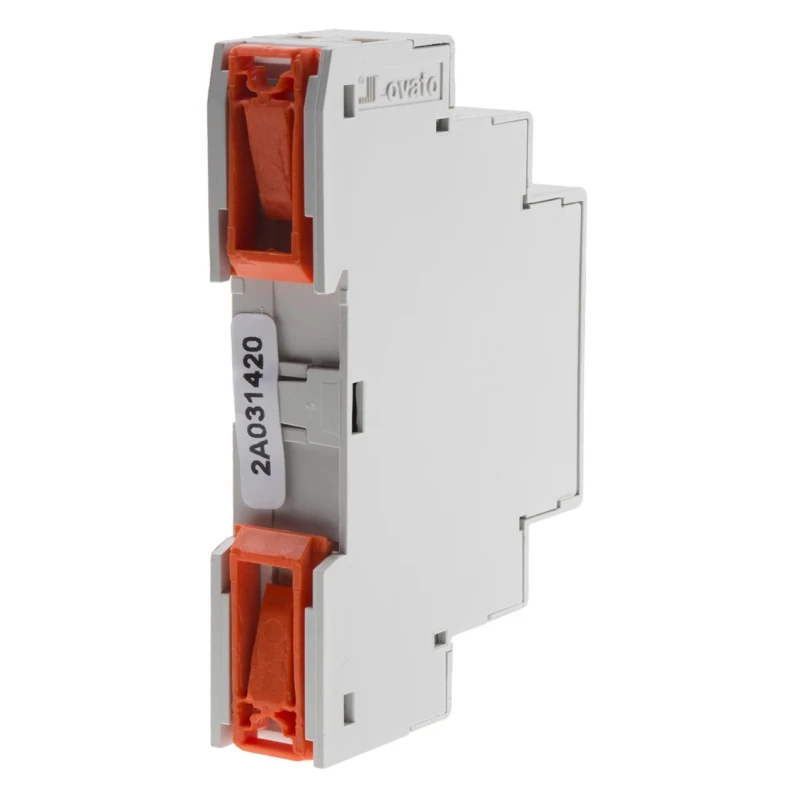

Equipped with screw terminal connections, the relay facilitates secure wiring and maintenance on DIN rail mounting systems, common in panel installations for electrical and automation equipment.

Compact in size with dimensions 104.7 mm (width) x 64.9 mm (height) x 17.5 mm (length), the TMD relay fits efficiently into modular setups without consuming excessive panel space. Its IP20 and IP40 ratings provide protection against solid foreign objects, ensuring operational reliability in industrial environments.

The device operates reliably over a temperature range from -20°C to +60°C, suitable for various industrial and commercial applications. The multifunction timer supports various time delay functions such as delay ON, delay OFF, and other versatile timing modes to meet different automation needs.

Typical applications include sequential machine operation in manufacturing, automated lighting control in commercial buildings, HVAC systems requiring time regulation, safety circuitry to prevent short cycling, and diverse timer needs in industrial machinery.

The multifunction capability supports diverse timing applications for automation systems. Delay ON and OFF modes provide configurable timing for process control. SPDT contact setup enables flexible switching between circuits.

Wide voltage supply range enhances system compatibility. Durable screw terminal connections improve installation and reliability. Compact DIN rail mounting fits standard electrical panels efficiently. IP20 and IP40 ratings ensure protection against dust and solid objects.

Broad operating temperature guarantees performance in varied environments. Compliant with international safety and performance standards ensuring quality and reliability.

This Lovato Electric TMD Timer Relay is manufactured in Italy, reflecting high standards of European quality and engineering. It is an essential component for industrial, manufacturing, HVAC, and commercial electrical control systems requiring precise timing solutions.
