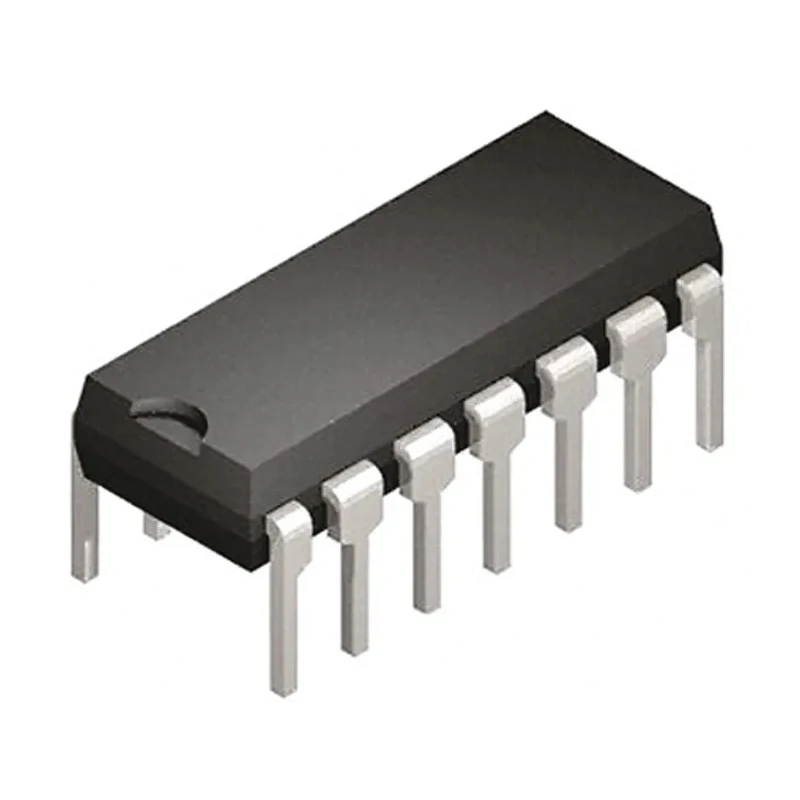

Microchip Transceiver IC 1-Channel 12 Mbps 3-5.5 V USB 2.0 14-Pin PDIP MCP2221-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 19.69mm |
| Model | MCP2221-I/P |
| Mount Type | Through Hole |
| Series | MCP2221 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 10mA |
| Maximum Data Rate | 12Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | USB 2.0 |
Key Features
- Supports USB 2.0 protocol for high-speed communication.
- Operates within temperature range of -40°C to 85°C.
- Through hole mount type with 14-pin PDIP package.
- ESD protection included for device reliability.
- Supply current of 10 mA ensures low power consumption.
- Suitable for various serial I/O peripheral applications.
- Compliance with USB 2.0 standards for broad compatibility.
- Ideal for electronic, laboratory, and industrial interface solutions.
Product Description
Microchip MCP2221-I/P is a high-performance Transceiver IC designed for USB 2.0 interface applications. Operating at a maximum data rate of 12 Mbps, this single-channel transceiver supports protocols compliant with USB 2.0 standards. Powered by a supply voltage range of 3 V to 5.5 V, it ensures reliable operation across a wide voltage tolerance.
Its 14-pin Plastic Dual In-line Package (PDIP) and through-hole mount type make it suited for easy PCB assembly. The device protects against electrostatic discharge (ESD) to enhance durability. The supply current rating of 10 mA offers energy-efficient performance without compromising functionality.
Operating temperature range from -40°C to 85°C allows deployment in harsh environments, suitable for industrial, electronics, laboratory, and manufacturing applications. The compact dimensions with a length of 19.69 mm and height of 4.95 mm enable flexible integration in space-constrained designs.
Supports USB 2.0 protocol for high-speed data transmission. Built-in ESD protection safeguards device integrity. Single transceiver channel ideal for simplified device interfacing. Compatible with serial I/O peripheral designs.
Low supply current consumption of 10 mA. Robust operation from -40°C to 85°C. Through-hole mount and PDIP packaging for easy installation. Compact physical footprint enables versatile application. Suitable for industrial, electronic, and manufacturing environments.
Compliance with USB 2.0 standards ensures broad device compatibility.
Microchip products such as the MCP2221-I/P facilitate industry-grade electronic design, making it an excellent choice for engineers seeking dependable USB interface components. Explore more semiconductor and USB interface IC offerings on EnvMart for comprehensive solution building.
Explore more products in our USB Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this transceiver IC is 12 Mbps, allowing for high-speed communication compliant with USB 2.0 standards.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The supply voltage range is from 3 V to 5.5 V, ensuring reliable operation across various applications.
The supply current rating is 10 mA, which supports low power consumption during operation.
It comes in a 14-pin Plastic Dual In-line Package (PDIP), designed for through-hole mounting.
Yes, it is compliant with USB 2.0 standards, ensuring broad compatibility with various devices.
It includes built-in electrostatic discharge (ESD) protection to enhance device reliability.
This model is suitable for various serial I/O peripheral applications in industrial, electronic, and laboratory environments.
The dimensions are 19.69 mm in length and 4.95 mm in height, allowing for flexible integration in space-constrained designs.
This model features a single transceiver channel, simplifying device interfacing.
The series name is MCP2221, which denotes its classification within Microchip's product line.
The country of origin for this product is India.
