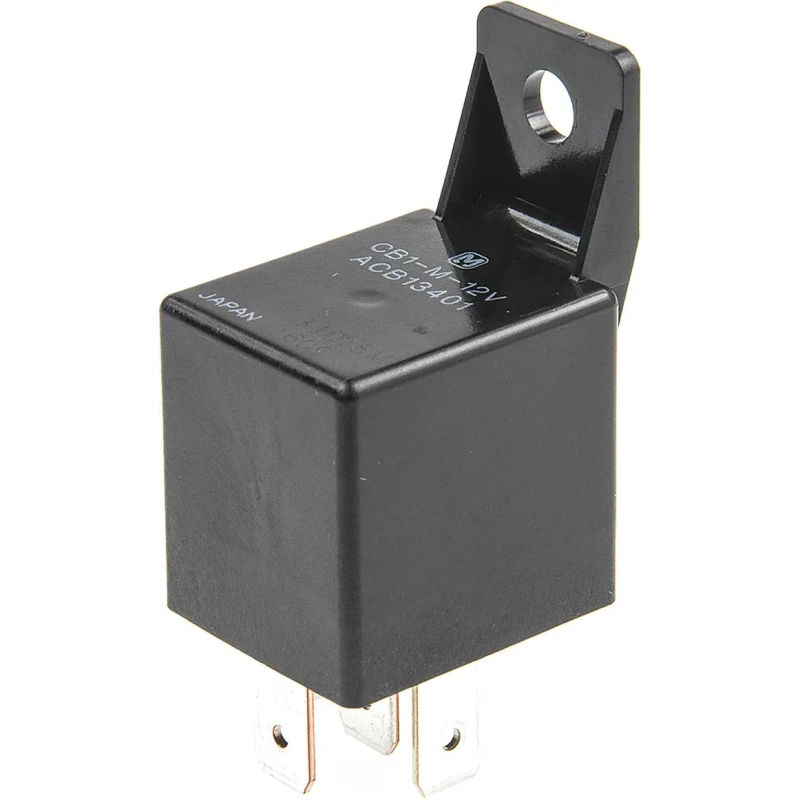

Panasonic Automotive Relay 12V DC Coil Voltage 1.4W Coil Power 40A Switching Current SPDT PCB Mount CB1-R-M-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 25mm |
| Length | 26mm |
| Model | CB1-R-M-12V |
| Depth | 22mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 103Ω |
| Coil Power | 1.4W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Compact PCB mount design measuring 26mm x 25mm x 22mm.
- Coil power consumption is 1.4W with coil resistance of 103Ω.
- Single pole double throw (SPDT) contact configuration for versatile switching.
- Silver alloy contact material ensures reliable conductivity and durability.
- Isolation coil to contact voltage of 500Vrms provides insulation safety.
- Ideal for automotive, construction, and agricultural equipment applications.
- Quick connect terminal type supports easy mounting.
Product Description
Panasonic CB1-R-M-12V automotive relay is a compact, high-reliability relay designed for use in automotive, construction, and agricultural equipment where a compact size and high switching capacity are required. It operates with a 12V DC coil voltage consuming only 1.4W of power, and it features high thermal resistance and low temperature rise during operation.
This relay employs a single pole double throw (SPDT) contact configuration and silver alloy contacts to ensure efficient switching with a maximum switching current of 40A. The coil resistance is 103Ω, providing stable coil operation with a built-in resistor type option available. The device supports operation in harsh environmental conditions with a temperature range from -40°C to 85°C.
The compact size of 26mm length, 25mm height, and 22mm depth makes it ideal for PCB mounting applications. The quick connect terminal type simplifies installation and maintenance. The isolation coil to contact voltage of 500Vrms enhances operational safety by isolating control and power circuits.
This Panasonic CB series automotive relay is specially suited for demanding automotive applications as well as industrial machinery such as construction and agricultural equipment where robust and compact relays are essential for electrical control systems.
Compact PCB mount form factor measuring 26x25x22 mm. Durable silver alloy contacts for stable electrical performance. High switching capacity supports up to 40A current. Wide temperature operating range from -40°C to 85°C.
Quick connect terminals for fast wiring and replacement. 500Vrms coil to contact isolation for safety. Low coil power consumption of 1.4W. Versatile single pole double throw (SPDT) contact configuration. Explore more Panasonic Automotive Relays and industrial electrical components in the Electronics & Electricals category at EnvMart for reliable and efficient automation solutions.
