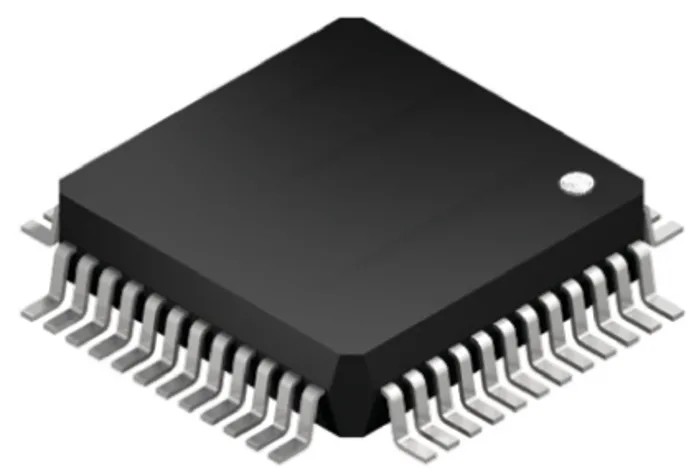

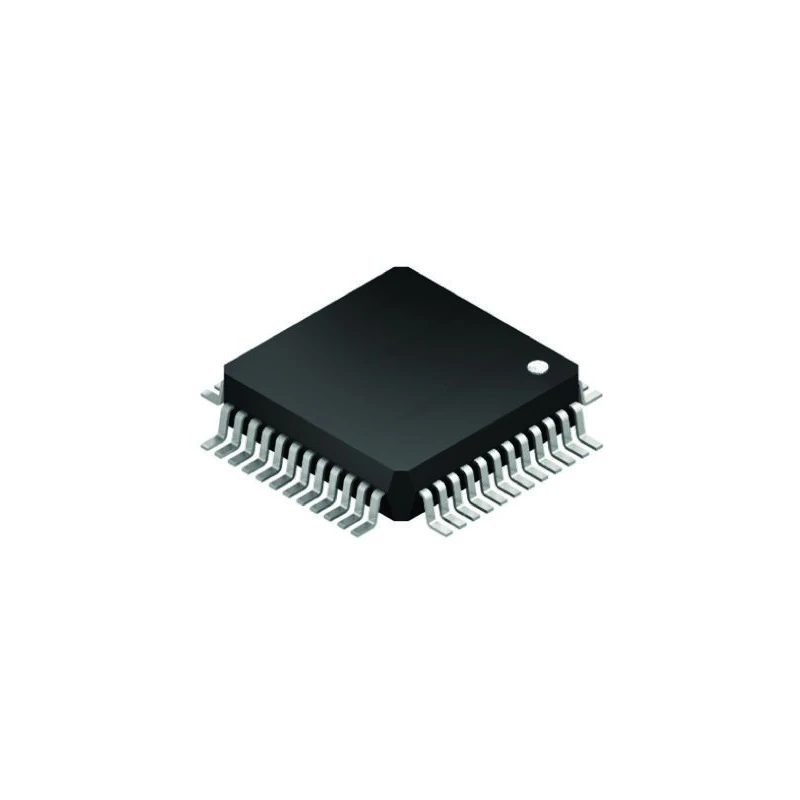

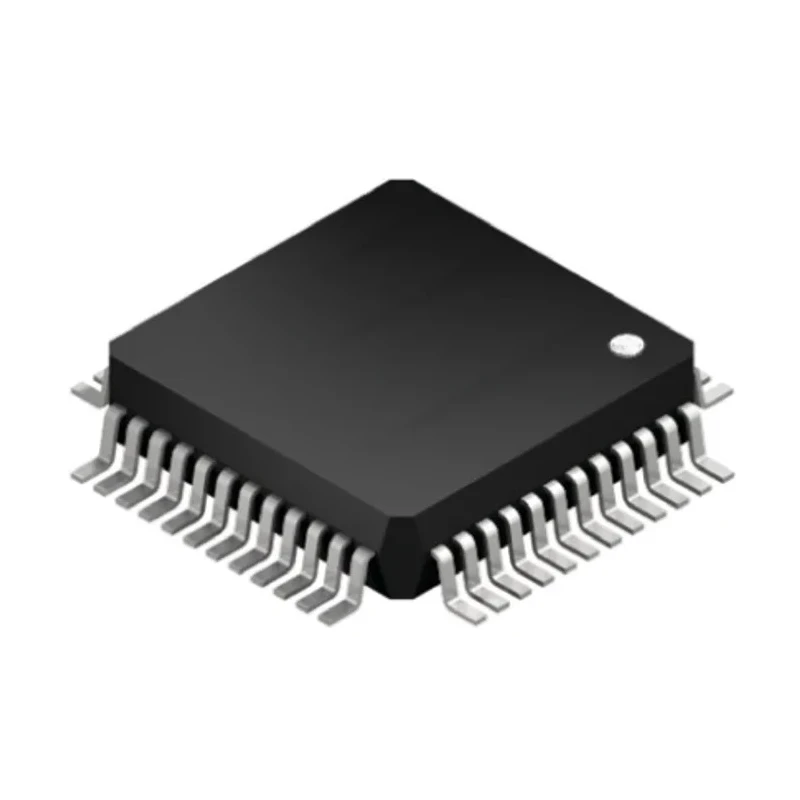

NXP 32 Bit ARM Cortex M3 Microcontroller LPC1317FBD48,551, LPC13 Series, 72 MHz, 64kB FLASH, 48-Pin LQFP

Free Delivery in India | Lowest Global Shipping Charges

NXP 32 Bit ARM Cortex M3 Microcontroller LPC1317FBD48,551, LPC13 Series, 72 MHz, 64kB FLASH, 48-Pin LQFP



Category Microcontroller Brand NXP Condition New

Specifications

Country of Origin	India
Brand	NXP
Height	1.45mm
Length	7.1mm
Model	LPC1317FBD48,551
Width	7.1mm
Mount Type	Surface
Series	LPC13
Maximum Operating Temperature	85°C
Package Type	LQFP
Minimum Operating Temperature	-40°C
Interfaces	Ethernet, USB Host/OTG/Device, CAN, I²S, Fast-mode Plus (Fm+) I²C, 12-bit ADC, Motor Control PWM, Quadrature Encoder Interface, and more
Ram size	10kB
Pin Count	48
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2V
Device Core	ARM Cortex M3
Program Memory Size	64kB
Maximum Clock Frequency	72MHz
Number of Timers	4
Instruction Set Architecture	RISC
ADCs	8 x 10 Bit
Program Memory Type	FLASH

Key Features

Operates at a maximum clock frequency of 72 MHz for efficient processing.
Features 64 kB of FLASH program memory and 10 kB RAM size for reliable data handling.
Includes 48-pin LQFP surface mount package suitable for compact circuit designs.
Supports a wide operating voltage range from 2 V to 3.6 V for flexible power supply configurations.
Designed with 8 channels of 10-bit ADCs for precise analog-to-digital conversion.
Contains 4 timers and supports RISC architecture instruction set for versatile timing control.
Operational temperature range from -40°C to 85°C ensuring durability in harsh environments.
Provides advanced interfaces including Ethernet, USB Host/OTG/Device, CAN, I²S, and motor control PWM.

Product Description

NXP LPC1317FBD48,551 is a 32 bit ARM Cortex M3 Microcontroller in the LPC13 series, operating at up to 72 MHz with 64 kB FLASH memory. It is designed for embedded applications requiring high integration and efficient processing.

This microcontroller comes in a 48-pin LQFP surface mount package measuring 7.1 mm length and width, with a height of 1.45 mm allowing compact PCB layouts. It supports voltage from 2 V minimum up to 3.6 V maximum to fit various power supply scenarios.

The LPC1317FBD48,551 includes 10 kB of RAM, 8 channels of 10-bit ADCs, and 4 built-in timers, making it suitable for real-time control and sensor interfacing tasks. The core implements RISC architecture for efficient instruction execution.

Advanced peripheral interfaces like Ethernet, USB Host/OTG/Device, CAN, I²S, Fast-mode Plus I²C, Motor Control PWM, and Quadrature Encoder Interface enhance connectivity and motor control capabilities for industrial and embedded system applications.

Built to withstand operating temperatures from -40°C to 85°C, this microcontroller suits automotive, industrial, and commercial environments. It incorporates system enhancements such as low power consumption, wake-up interrupt controller, nested vectored interrupt controller, and memory protection unit to enhance performance and reliability.

Operates at 72 MHz with 32-bit ARM Cortex M3 core. Provides 64 kB FLASH and 10 kB RAM for program and data storage. Offers 8 10-bit ADC channels for accurate analog inputs. Equipped with multiple communication interfaces for versatile connectivity.

Robust operating temperature range of -40°C to 85°C. Compact 48-pin LQFP package for efficient board design. Supports advanced interrupt and memory protection features. Low power consumption suitable for embedded control applications.

Ideal for embedded industrial, automotive, and consumer electronics use cases. Explore the NXP Microcontroller range to find solutions optimized for system integration, power efficiency, and enriched peripheral support for your embedded application needs.
