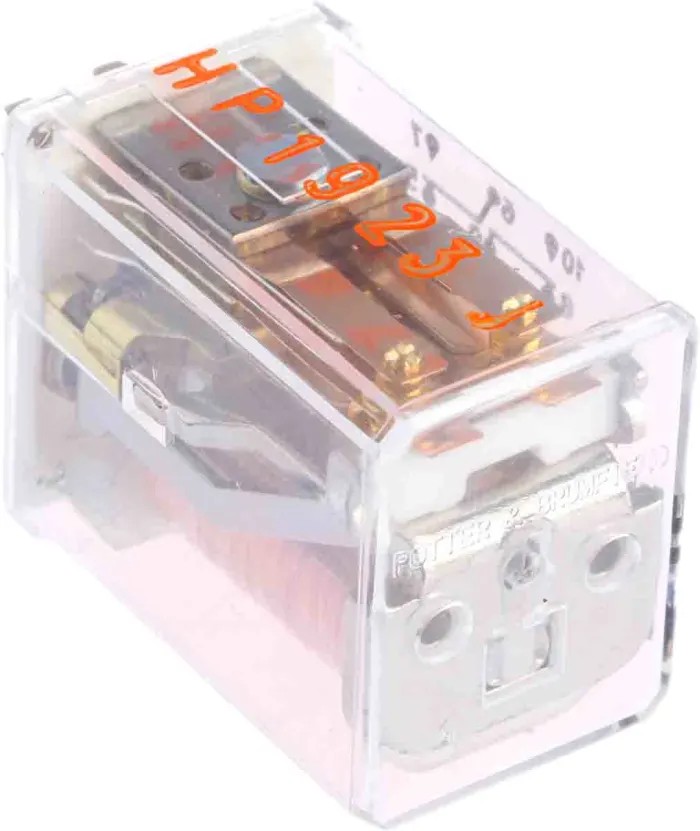

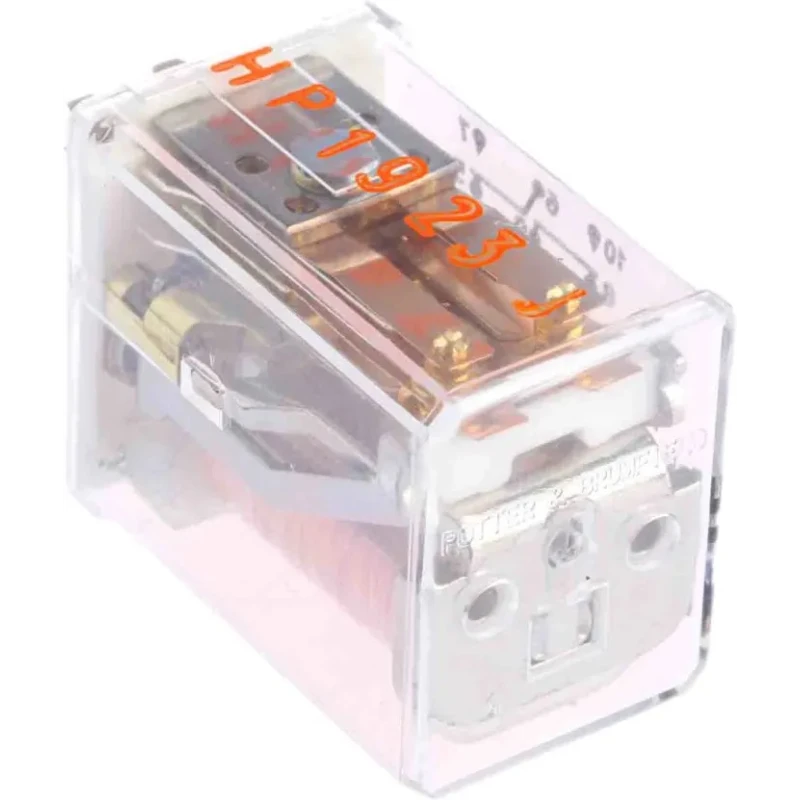

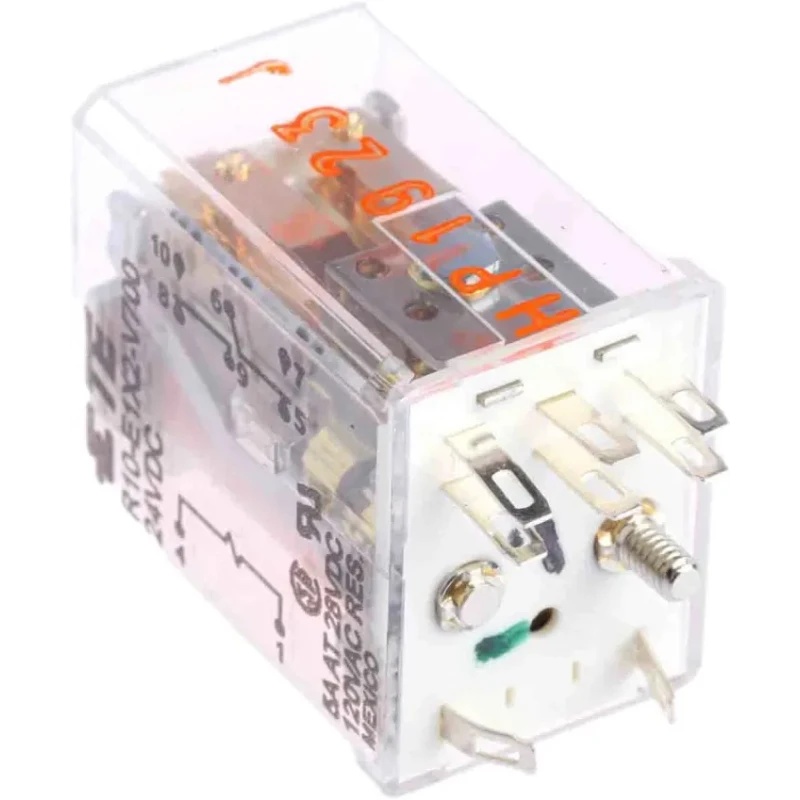

TE Connectivity Power Relay 24V dc Coil 5A Switching Current DPDT R10-E1X2-V700
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Height | 38.1mm |
| Length | 30.2mm |
| Model | R10-E1X2-V700 |
| Width | 18.6mm |
| Contact Material | Silver Alloy |
| Series | R10 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Standards/Approvals | UL, CSA, UR |
| Coil Resistance | 700Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 120V ac |
| Coil Power | 750mW |
| Switching Power | 900mW |
Key Features
- The relay features a double pole double throw (DPDT) contact configuration.
- It supports a switching current of 5A suitable for general-purpose use.
- Coil power consumption is 750 milliwatts with a coil resistance of 700 ohms.
- Operating temperature ranges from -55°C to 75°C, ensuring durability in harsh environments.
- Switching capacity includes 120V AC and 120V DC voltages supporting a maximum switching power of 900 mW.
- It utilizes a plug-in terminal type for easy installation and maintenance.
- Contacts are made of silver alloy material for improved conductivity and longevity.
- The relay dimensions measure 30.2mm in length, 38.1mm in height, and 18.6mm in width.
Product Description
TE Connectivity R10-E1X2-V700 is a high-quality power relay designed for industrial and commercial electrical applications. Featuring a 24V DC coil, this relay provides a switching current of 5A with a DPDT (double pole double throw) contact configuration, suitable for complex switching tasks requiring multiple circuits.
The R10 series offers robust performance with coil resistance of 700 ohms and coil power consumption of 750 mW, ensuring energy-efficient operation. Its maximum switching power rating is 900 milliwatts, supporting switching voltages up to 120V AC and 120V DC, making it versatile across AC/DC applications.
Constructed with silver alloy contacts, the relay guarantees excellent electrical conductivity and durability. It is engineered to operate reliably within a wide temperature range from -55°C to 75°C, accommodating harsh environmental conditions commonly found in industrial settings.
The enclosure is transparent, facilitating visual inspection, and the plug-in terminal type design allows for straightforward installation, repair, or replacement. The compact dimensions (30.2mm length, 38.1mm height, and 18.6mm width) support flexible mounting in constrained spaces.
Certified under UL and CSA standards, the TE Connectivity R10-E1X2-V700 relay meets global safety and quality benchmarks for reliable electrical switching applications. The relay features a double pole double throw (DPDT) contact configuration.
Supports switching current of 5A, suitable for general electrical control. Operates with a 24V DC coil consuming 750mW of power. Wide operating temperature range from -55°C to 75°C. Switching voltages up to 120V AC and DC with a switching power of 900mW.
Plug-in terminal type enables easy mounting and maintenance. Silver alloy contacts offer high conductivity and durability. Compact size with dimensions 30.2 x 38.1 x 18.6 mm. UL and CSA certifications ensure compliance with safety standards.
This power relay is widely used in industrial automation, audio equipment, elevators, traffic control systems, ultrasonic testing devices, and parking toll readers. Its robust build and certified design make it a dependable choice for manufacturing, commercial, and control system environments.
Explore more Power Relays from TE Connectivity and other trusted brands at EnvMart for your specialized industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 5A, making it suitable for general electrical control applications.
It operates with a 24V DC coil and has a coil power consumption of 750 mW.
The relay measures 30.2mm in length, 38.1mm in height, and 18.6mm in width.
This model features a double pole double throw (DPDT) contact configuration, allowing for complex switching tasks.
The maximum switching power rating is 900 mW, supporting switching voltages up to 120V AC and 120V DC.
The contacts are made of silver alloy, which enhances electrical conductivity and durability.
It operates reliably within a temperature range of -55°C to 75°C, suitable for harsh environments.
It utilizes a plug-in terminal type, which facilitates easy installation and maintenance.
This relay is certified under UL and CSA standards, ensuring compliance with global safety and quality benchmarks.
It is suitable for applications in industrial automation, audio equipment, elevators, traffic control systems, and ultrasonic testing devices.
The coil resistance is 700 ohms, contributing to its energy-efficient operation.
The relay is manufactured in Mexico.
