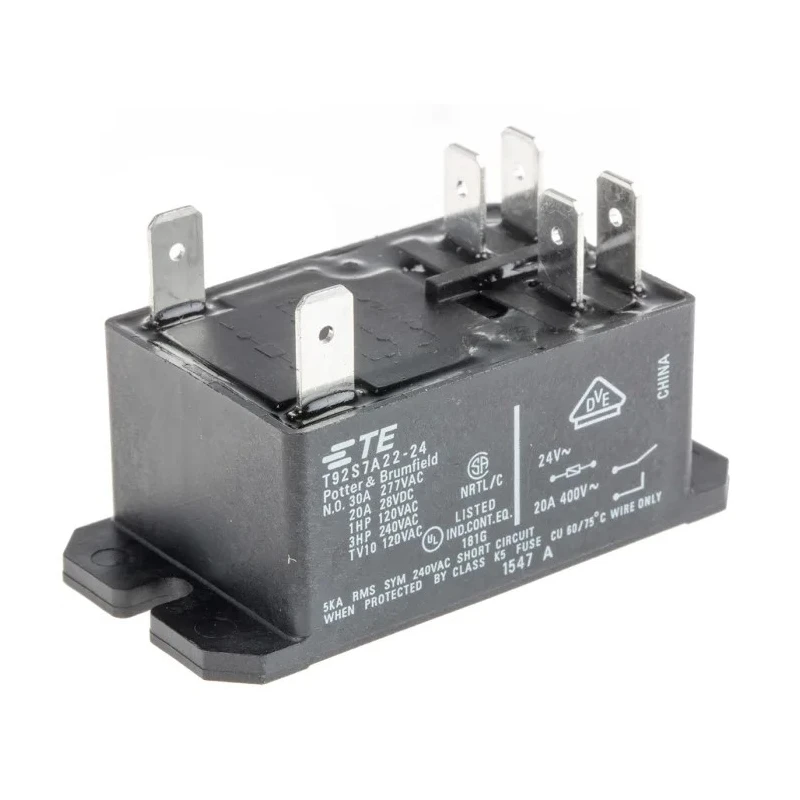

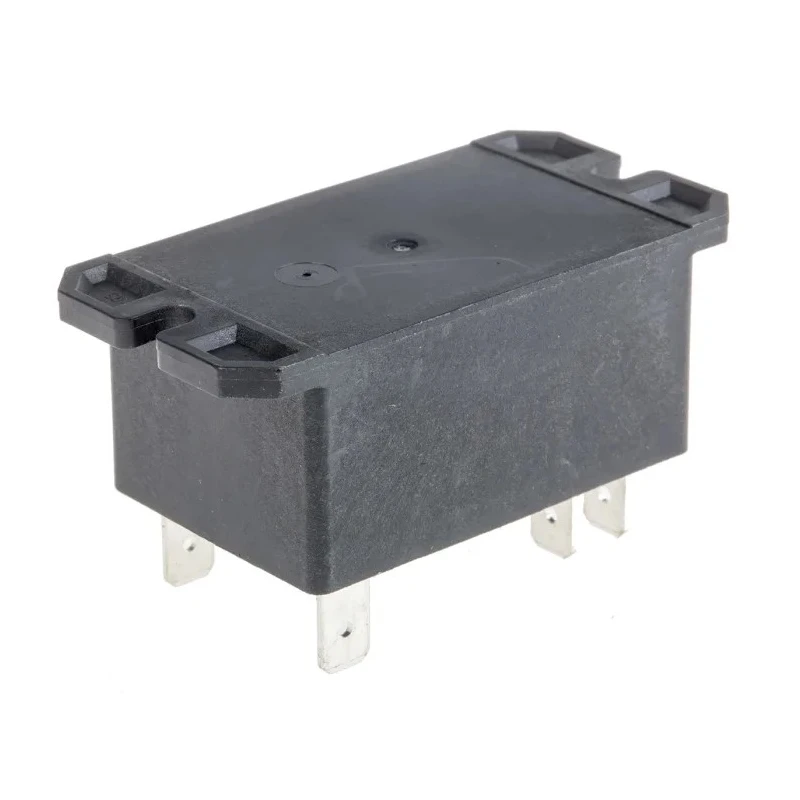

TE Connectivity Panel Power Relay 24V AC Coil 30A Switching Current DPST T92S7A22-24 1393212-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40°C to +65°C |
| Height | 30.7mm |
| Length | 52.3mm |
| Model | T92S7A22-24 1393212-4 |
| Width | 34.5mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -45°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | UR, CSA, UL |
| Coil Resistance | 36.6Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 600V ac |
Key Features
- Designed for panel mounting with quick connect terminals for easy installation.
- Suitable for controlling compressor loads up to 3.5 tons and 110 LR amp.
- Coil resistance of 36.6 ohms ensures reliable operation.
- Operating temperature ranges from -40°C to +65°C for robust environmental performance.
- Silver alloy contact material provides excellent conductivity and durability.
- UL, CSA, and UR approved ensuring safety and compliance.
Product Description
TE Connectivity T92S7A22-24 1393212-4 Panel Power Relay is engineered for industrial and commercial electrical control applications where reliable switching is essential. This power relay operates with a 24V AC coil voltage and supports a switching current capacity of 30A. It features a Double Pole Single Throw (DPST) contact configuration, facilitating control of dual circuits with a single relay.
The relay is designed for panel mounting with quick connect terminals, making installation straightforward and maintenance efficient. Its robust silver alloy contacts ensure excellent electrical conductivity and long service life under demanding conditions.
With a coil resistance of 36.6 ohms and coil power rating of 4VA, this relay manages power efficiently while providing stable switching operation. It is suitable for switching AC voltages up to 600V and meets UL 873 and UL 508 spacing standards, ensuring user safety and industrial reliability.
Designed to control compressor loads of up to 3.5 tons and 110 LR amperes, the T92 series relay is ideal for HVAC, automation, and industrial control systems. The relay withstands operating temperatures ranging from -40°C to +65°C, making it adaptable to various environmental conditions.
Safety approvals including UL recognized, CSA certified, and VDE compliance highlight the relay's high-quality engineering and adherence to international electrical standards. Compact and durable, its physical dimensions are 52.3mm length, 34.5mm width, and 30.7mm height, fitting easily into control panels.
Designed for panel mounting with quick connect terminals for easy installation. Suitable for controlling compressor loads up to 3.5 tons and 110 LR amp. Coil resistance of 36.6 ohms ensures reliable operation. Operating temperature ranges from -40°C to +65°C for robust environmental performance.
Silver alloy contact material provides excellent conductivity and durability. UL, CSA, and UR approved ensuring safety and compliance. Compact dimensions: 52.3mm length, 34.5mm width, and 30.7mm height.
This power relay is suitable for industrial, automation, HVAC, and manufacturing applications requiring dependable electrical switching. For more options, browse our comprehensive Electronics & Electricals Power Relays category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power relay has a switching current capacity of 30A.
This model operates with a coil voltage of 24V AC.
It features a Double Pole Single Throw (DPST) contact configuration.
The operating temperature range is from -40°C to +65°C.
The contacts are made from silver alloy, providing excellent conductivity.
The relay measures 52.3mm in length, 34.5mm in width, and 30.7mm in height.
It features quick connect terminals for easy installation.
The coil resistance is 36.6 ohms.
This relay can switch AC voltages up to 600V.
It is UL recognized, CSA certified, and compliant with UR standards.
It is suitable for industrial, automation, HVAC, and manufacturing applications requiring reliable electrical switching.
The coil power rating is 4VA, ensuring efficient power management.
