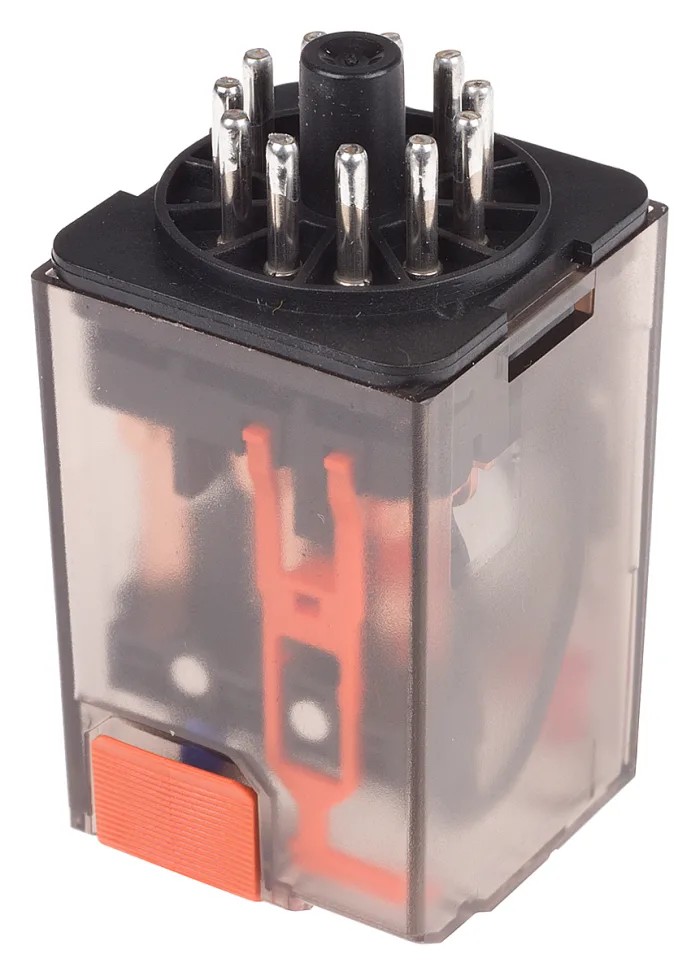

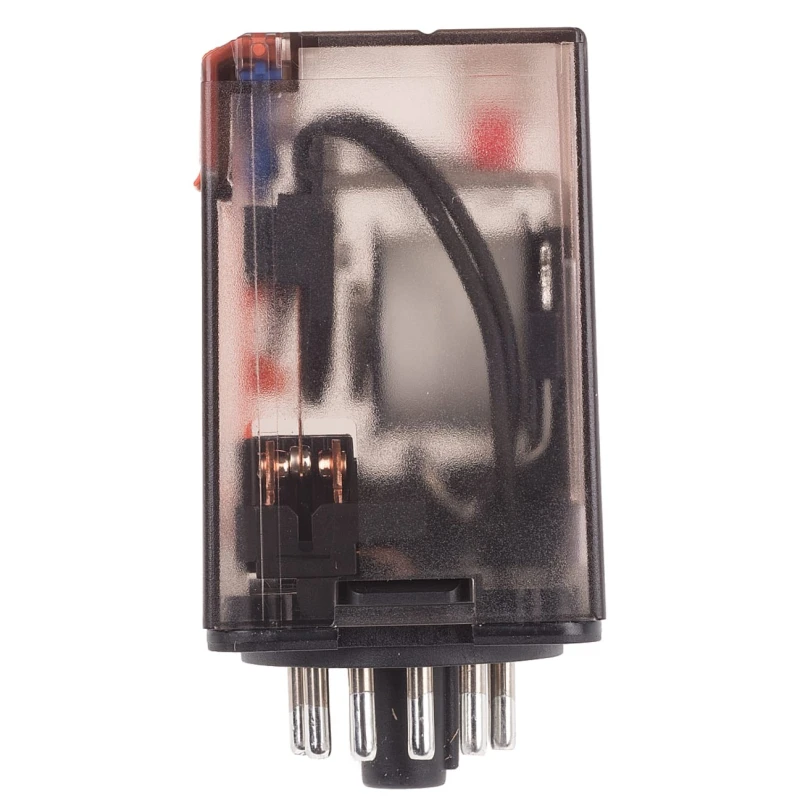

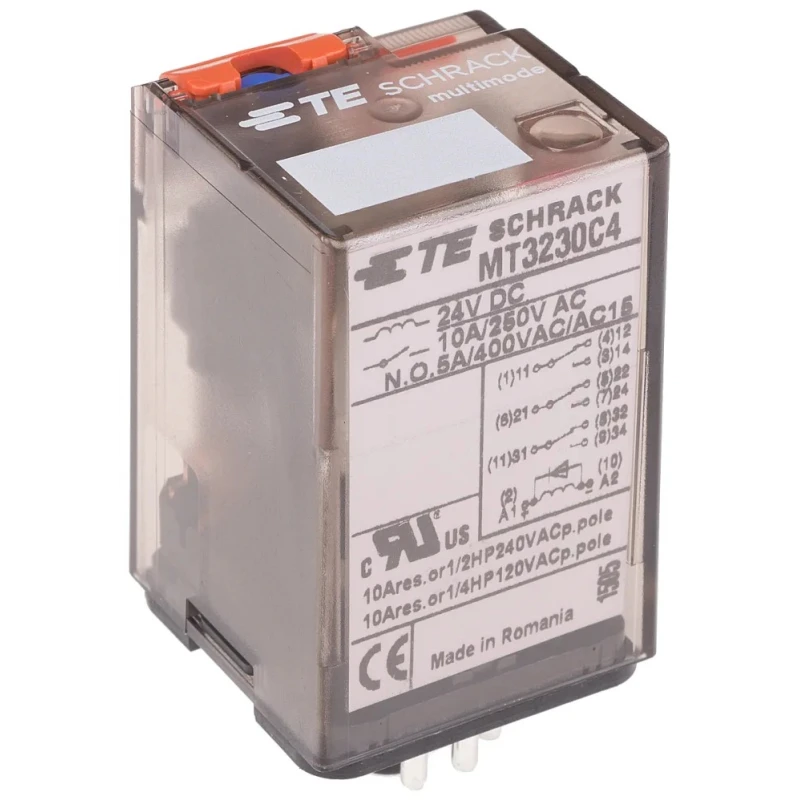

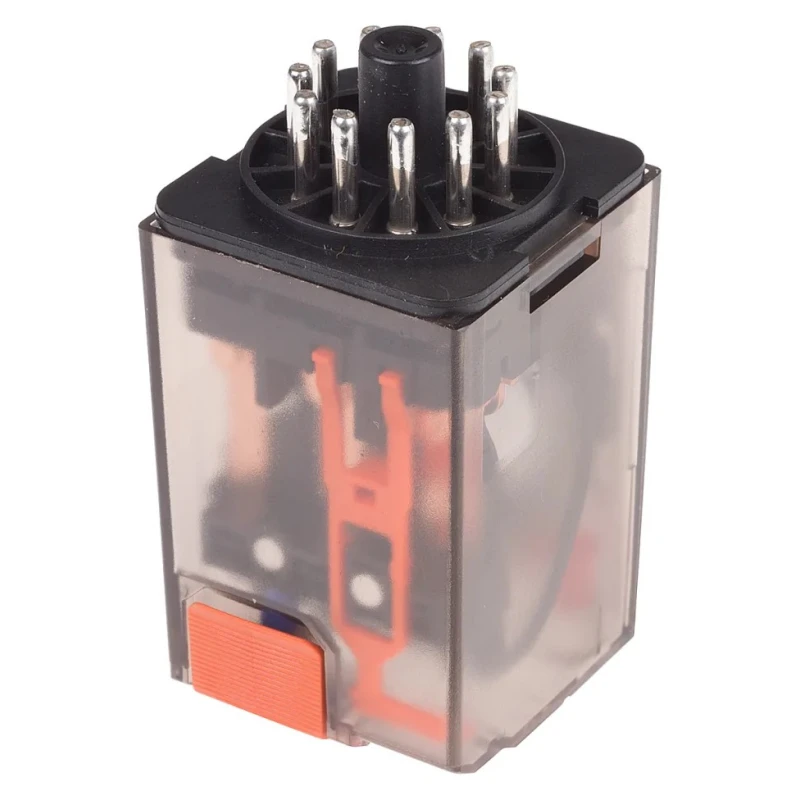

TE Connectivity Power Relay 24V DC Coil 10A Switching Current 3PDT MT3230C4 7-1393091-9

TE Connectivity MT3230C4 7-1393091-9 Power Relay is a high-performance, non-latching relay designed for industrial, electrical, and automation applications. It features a 24V DC coil voltage and supports a switching current of 10A with a 3PDT contact configuration, making it suitable for complex switching tasks requiring multiple poles and throws.

This plug-in mount relay belongs to the MT series and is designed for plug-in terminal connections ensuring easy installation and replacement within electrical control systems. It delivers reliable performance with a coil resistance of 475 ohms and coil power consumption of 1.2 watts, balancing operational efficiency and energy consumption.

The relay is engineered to operate effectively under a wide temperature range from -40°C to 60°C, ensuring durability in harsh industrial environments. It supports a switching AC voltage of up to 400V, meeting the needs of high voltage power relay applications. The contact material is silver nickel alloy, chosen for excellent electrical conductivity and resistance to wear, extending the relay's operational lifespan.

Dimensionally compact, with measurements of approximately 57mm height, 35.6mm width, and 35.5mm length, this relay fits well in constrained panel designs. It carries certifications including VDE, UL, RoHS, and REACH, demonstrating compliance with international safety, quality, and environmental standards.

This power relay is ideal for use in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other commercial applications requiring reliable electrical switching solutions. Its robust design ensures dependable operation in critical electrical circuits.

This power relay operates with a coil voltage of 24V DC. It has a switching current rating of 10 amperes suitable for power relay applications. Contact configuration is 3PDT providing multiple pole double throw operation.

Designed with a plug-in terminal type for ease of installation and replacement. Coil resistance is 475 ohms resulting in coil power consumption of 1.2 watts. Operational temperature range is from -40°C to 60°C ensuring robust performance.

Switching AC voltage rating is 400V AC, supporting high voltage environments. Constructed with silver nickel alloy contact material to ensure durability and conductivity. Compact dimensions approximately 57mm height, 35.6mm width, and 35.5mm length.

Certified to meet VDE, UL, RoHS, and REACH standards for safety and environmental compliance. Explore more Power Relay products and related components on EnvMart for your industrial and commercial electrical needs.
