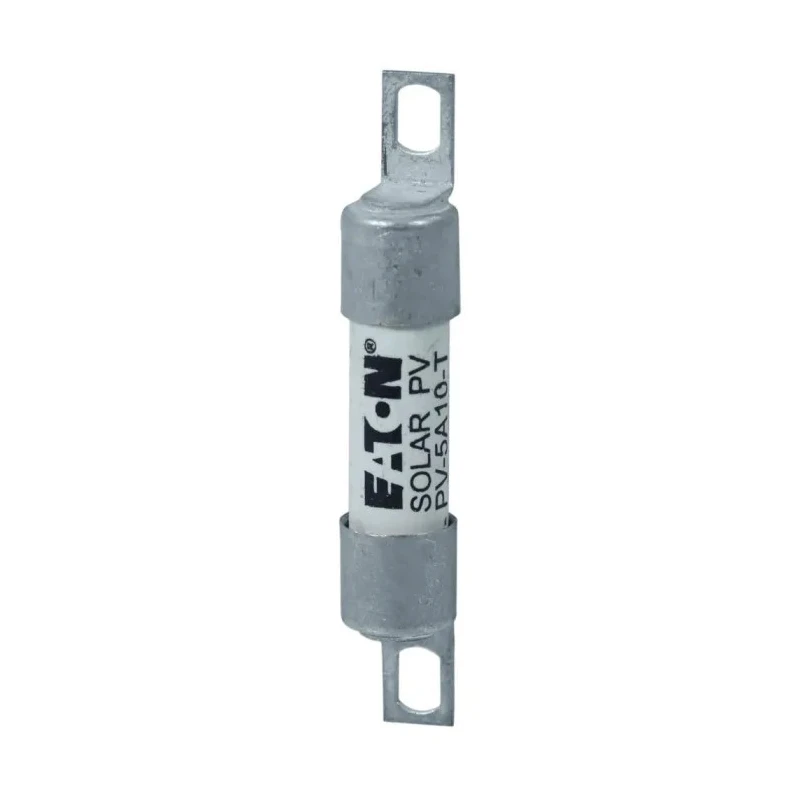

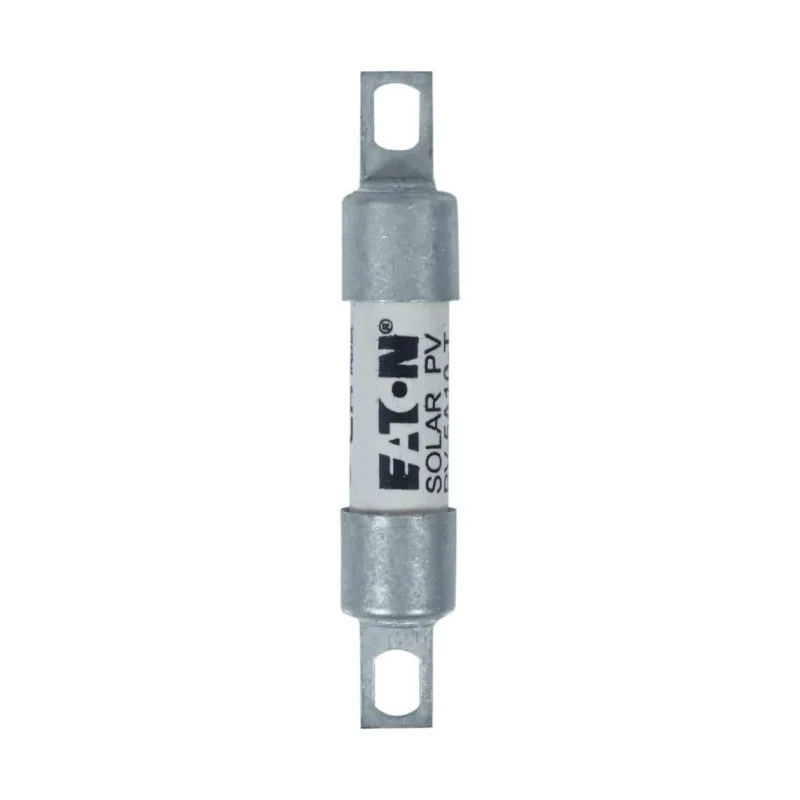

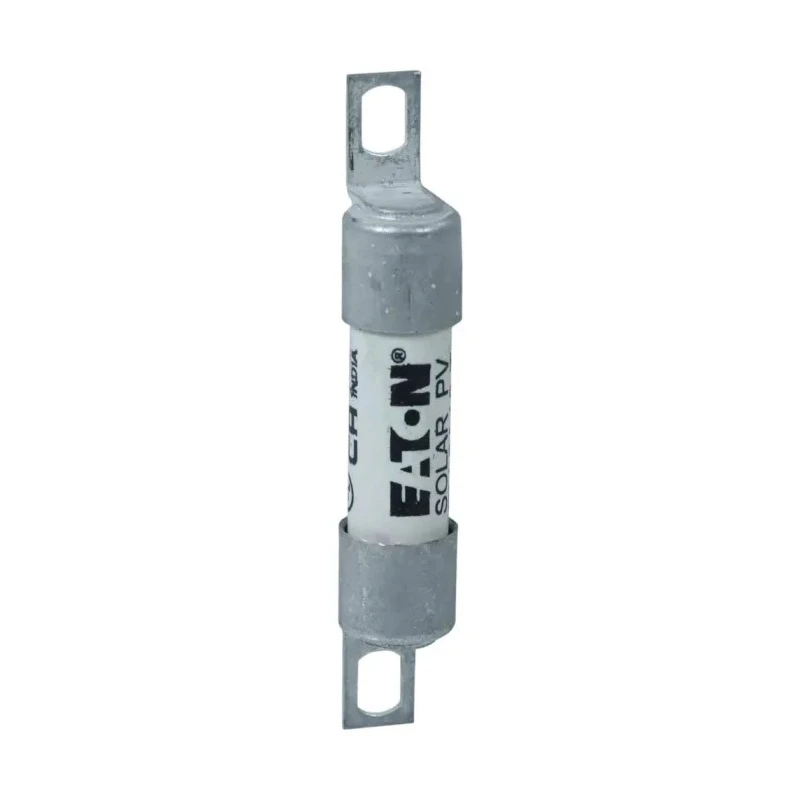

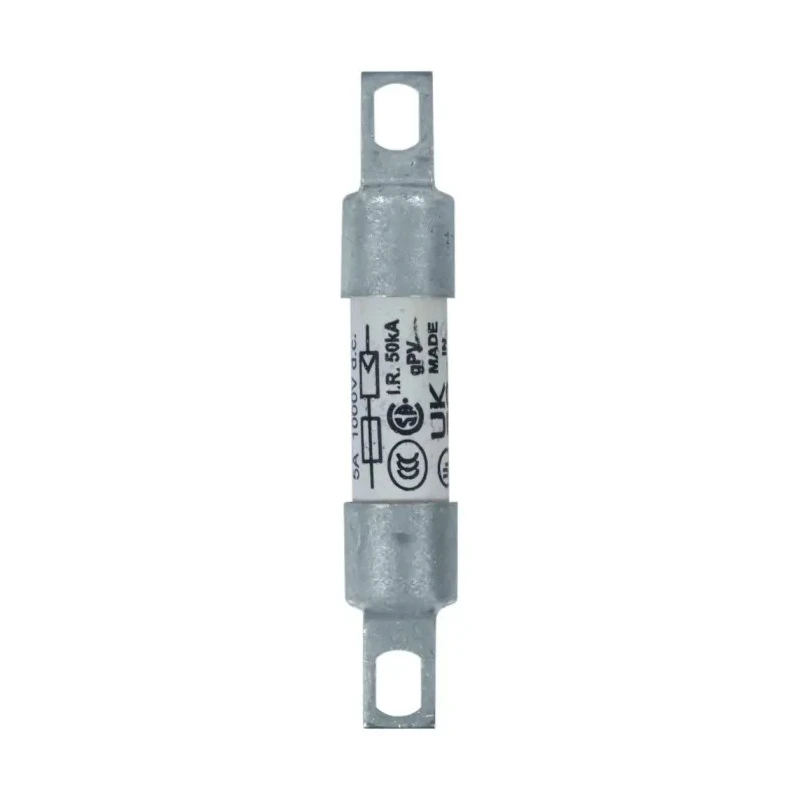

Eaton Bolt Fixing Photovoltaic Fuse 5A Current Rating 1000V DC, 10 x 38 mm PV-5A10-T

Name: Eaton Bolt Fixing Photovoltaic Fuse 5A Current Rating 1000V DC, 10 x 38 mm PV-5A10-T
Brand: Eaton
SKU: 324268
Price: 20.22 USD
Availability: InStock



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	1000V dc
Diameter	10.4mm
Brand	Eaton
Height	10.4mm
Length	38.5mm
Model	PV-5A10-T
Width	52mm
Overall Length	62mm
Current Rating	5A
Series	PV
Standards/Approvals	IEC 60269-6, CSA, RoHS, CCC, CE, UL
Fuse Size	10 x 38 mm
Fixing Centres	49.7 mm
Tag Width	6.6mm
Tag Orientation	Offset
Application Category	gPV

Key Features

Designed specifically for photovoltaic string protection and isolation.
Compact fuse body size of 10.4 x 38.5 mm for efficient installation.
High voltage rating of 1000V DC suitable for solar systems.
Offset bolted tag orientation simplifies installation process.
Suitable for thin film and crystalline silicon solar cells.
Capable of interrupting low overcurrents in faulted photovoltaic arrays.
Meets international standards IEC 60269-6, CSA, RoHS, CCC, CE, and UL.
High rupture capacity ensures enhanced safety and reliability.

Product Description

The Eaton PV-5A10-T bolt fixing photovoltaic fuse is engineered for protection and isolation of photovoltaic strings in solar energy systems. With a 5 ampere current rating and 1000 volts DC voltage rating, it ensures reliable performance in photovoltaic applications.

This fuse features a compact design with a 10.4 x 38.5 mm body size and an overall length of 62 mm, making it suitable for installations where space is limited. The offset bolted tag orientation facilitates easy and secure mounting.

Compliant with IEC 60269-6 and other global standards such as CSA, RoHS, CCC, CE, and UL, this fuse provides high rupture capacity for safety and durability in electrical circuits.

Ideal for use with both thin film and crystalline silicon photovoltaic cells, the Eaton PV-5A10-T is capable of handling low overcurrents typically associated with faulted PV arrays, thereby protecting critical components efficiently.

Its fixing centres of 49.7 mm and tag width of 6.6 mm ensure compatibility with standard fuse holders in photovoltaic installations. Manufactured in India, this photovoltaic fuse meets stringent quality requirements suitable for industrial, commercial, and residential solar power systems.

Designed for photovoltaic string protection and isolation. Compact dimensions allow for easy integration in solar panel systems. High voltage rating of 1000V DC suitable for a range of solar applications. Offset bolt fixing enables efficient and secure installation.

Meets multiple international safety and performance standards. High rupture capacity enhances operational safety. Ideal for thin film and crystalline silicon solar cells. Fixing centres and tag width fit standard fuse mountings.

Manufactured under strict quality standards in India. Explore more Eaton products and photovoltaic Fuses in the Electronics & Electricals category at EnvMart for reliable and certified solar protection solutions.
