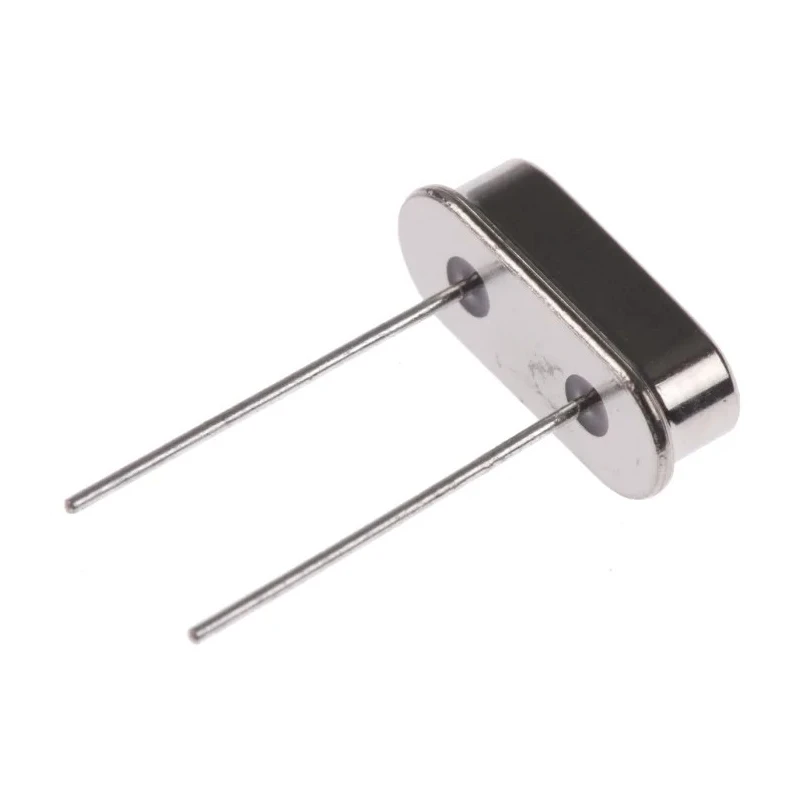

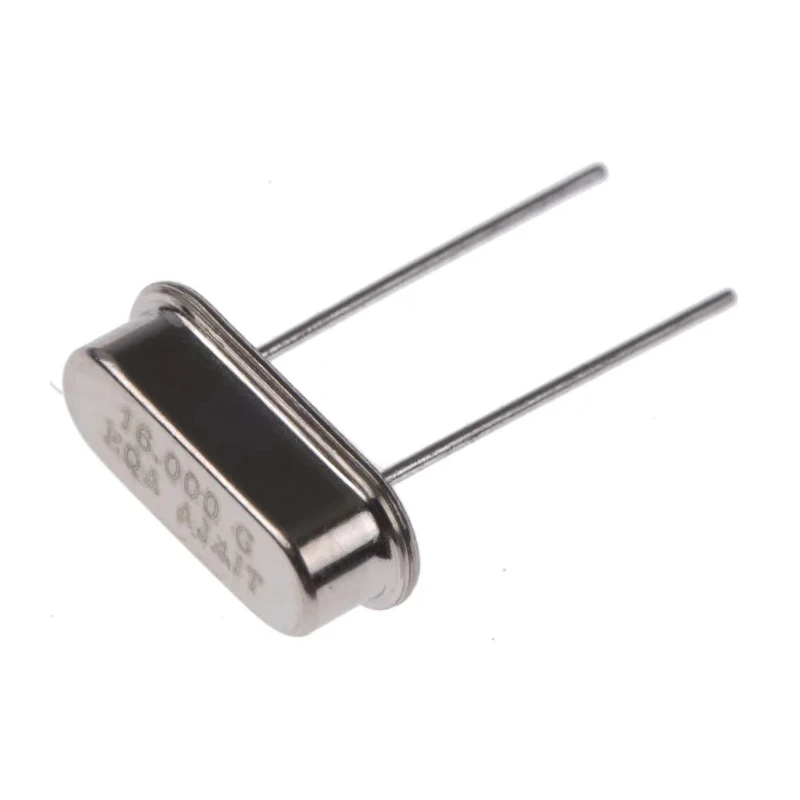

MERCURY 16 MHz Crystal ±30 ppm HC-49 2-Pin Through Hole Tape & Reel Package Model 16.000MHz /4H/30/50/-40+85/18pF/ATF HC49

Euroquartz HC49 16 MHz Crystal ±30 ppm HC-49 2-Pin model 16.000MHz HC49/4H/30/50/-40+85/18pF/ATF is engineered for precision frequency generation and timing applications in electronic devices. This crystal boasts a standard frequency of 16 MHz and a frequency tolerance of ±30 ppm, providing accurate and stable oscillation required in communication systems, microcontrollers, and embedded circuits.

The HC-49 package with a two-pin through-hole mounting makes it compatible with conventional PCB designs and automated insertion processes. Its load capacitance at 18 pF optimizes oscillator performance, while frequency stability of ±3 ppm over the specified temperature range ensures reliable operation across varying environmental conditions.

With a series resistance of 40 ohms, this crystal unit delivers excellent signal quality with minimal loss. The operational temperature range from -40°C to 85°C addresses a wide range of industrial and commercial applications, maintaining stability under harsh conditions.

Physical dimensions of length 10.77 mm, width 4.34 mm, and height 3.5 mm allow it to fit into compact layouts without compromising performance. The product is supplied in tape and reel packaging to facilitate efficient automated manufacturing and reduce handling damage.

Compliance with RoHS environmental directives affirms its suitability for green manufacturing and electronic recycling standards. Manufactured in China, this component meets stringent quality assurance benchmarks provided by Euroquartz, a reputed brand in crystal and oscillator components.

The device offers a standard frequency of 16 MHz with ±30 ppm tolerance. It features an HC-49 package type with two pins for through-hole mounting. Load capacitance is specified at 18 pF to stabilize oscillations. Operating temperature range is from -40°C to 85°C ensuring durability.

Frequency stability of ±3 ppm supports accurate timing functions. Series resistance is 40 ohms, suitable for various electronic circuits. Package includes tape and reel for automated assembly. Physical dimensions: length 10.77 mm, width 4.34 mm, height 3.5 mm.

Compliance with RoHS standards ensures environmental safety. Manufactured in China with high-quality control processes.

This Euroquartz crystal HC49 model is widely applied in industrial, laboratory, communications, and embedded electronics design. Its precise frequency and stable performance make it ideal for timing circuits, microcontroller oscillators, and frequency control in HVAC, automation, and instrumentation systems.
