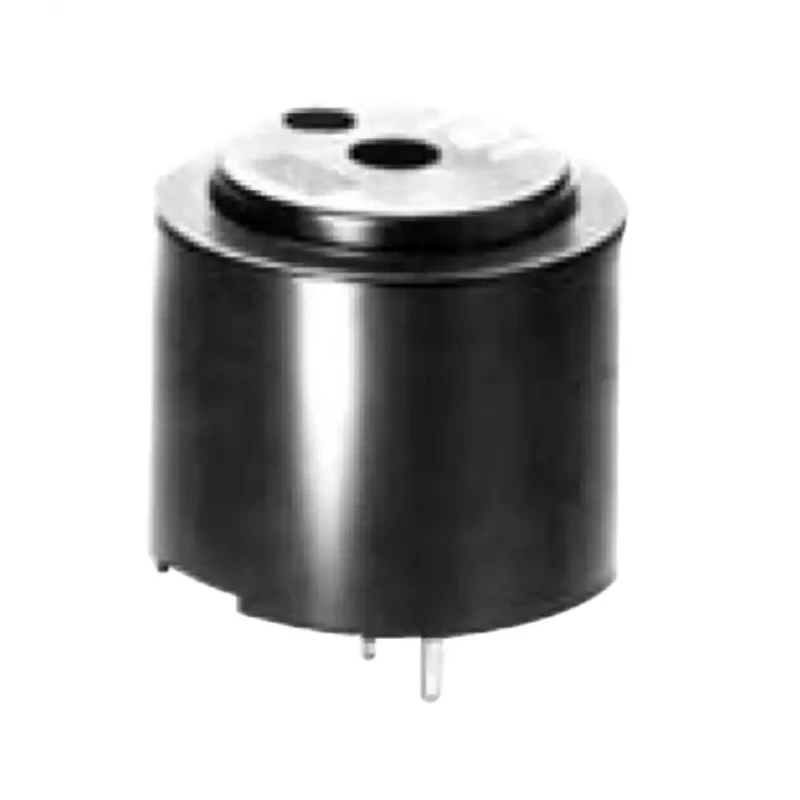

TDK 85 dB Through Hole Continuous Internal 14 mm Magnetic Buzzer Component 8 V dc Min 16V dc Max SDC1614LT-01
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 16mm |
| Brand | TDK |
| Sound Level | 85dB |
| Height | 14mm |
| Model | SDC1614LT-01 |
| Drive Type | Internal |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS, REACH |
| Maximum Frequency | 1.9kHz |
| Termination Style | Pin Terminal |
| Maximum Supply Voltage | 16V dc |
| Minimum Supply Voltage | 8V dc |
| Supply Current | 25mA |
| Tone Type | Continuous |
| Minimum Frequency | 2.4kHz |
Key Features
- Compact and highly reliable through hole electromagnetic buzzer for efficient sound output.
- Operates at a minimum supply voltage of 8 V dc and maximum of 16 V dc.
- Continuous internal drive type providing stable tone output.
- Diameter of 16 mm with a height of 14 mm suitable for PCB mounting.
- Operating temperature range from -10°C to 70°C ensuring durability in various environments.
- Pin terminal termination style for secure and easy installation.
- Sound level rating of 85 dB for loud and clear signaling applications.
- Compliance with RoHS and REACH environmental standards.
Product Description
TDK SDC1614LT-01 Magnetic Buzzer Component is an electromagnetic buzzer designed for through hole mounting. It operates continuously with an internal drive mechanism to produce a loud 85 dB sound output. Featuring a 16 mm diameter and a 14 mm height, this component is compact, reliable, and suitable for various electronic applications.
This buzzer functions efficiently between 8 V dc minimum and 16 V dc maximum supply voltage, maintaining stable tone output within a frequency range from 1.9 kHz to 2.4 kHz. It operates reliably under temperatures from -10°C to 70°C, making it suitable for use in diverse environments such as home appliances, personal computers, and office equipment.
The pin terminal termination style ensures secure attachment to printed circuit boards. Its compliance with RoHS and REACH standards emphasizes its environmental safety and adherence to global regulations. Produced with high manufacturing standards in Japan, this magnetic buzzer component guarantees longevity and performance.
Compact and highly reliable through hole electromagnetic buzzer for efficient sound output. Operates at a minimum supply voltage of 8 V dc and maximum of 16 V dc. Continuous internal drive type providing stable tone output.
Diameter of 16 mm with a height of 14 mm suitable for PCB mounting. Operating temperature range from -10°C to 70°C ensuring durability in various environments. Pin terminal termination style for secure and easy installation.
Sound level rating of 85 dB for loud and clear signaling applications. Frequency range between 1.9 kHz to 2.4 kHz for versatile audio signaling. Compliance with RoHS and REACH environmental standards. Manufactured in Japan, ensuring high quality and reliability.
This component is ideal for applications in home appliances, personal computing devices, and office equipment requiring reliable audio signaling. For more options and detailed specifications, users can browse the Electronics Components and Piezo Buzzers section at EnvMart.
Explore more products in our Through Hole Resistors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sound level rating of this model is 85 dB, providing loud and clear signaling for various applications.
This buzzer operates efficiently with a minimum supply voltage of 8 V dc and a maximum of 16 V dc.
This component has a diameter of 16 mm and a height of 14 mm, making it compact for PCB mounting.
The buzzer features a pin terminal termination style, ensuring secure and easy installation on printed circuit boards.
It operates reliably within a temperature range of -10°C to 70°C, suitable for various environments.
Yes, this model complies with RoHS and REACH environmental standards, emphasizing its safety and adherence to regulations.
This model uses an internal drive type, providing stable tone output for continuous operation.
The TDK SDC1614LT-01 is manufactured in Japan, ensuring high quality and reliability.
The supply current for this buzzer is 25 mA, which is necessary for its operation.
There are no combination attributes listed for the TDK SDC1614LT-01, indicating it is offered as a single configuration.
