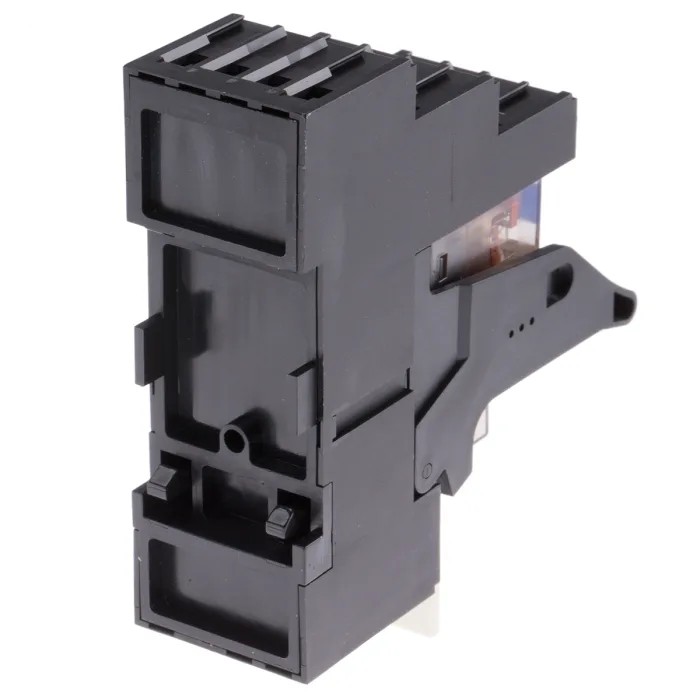

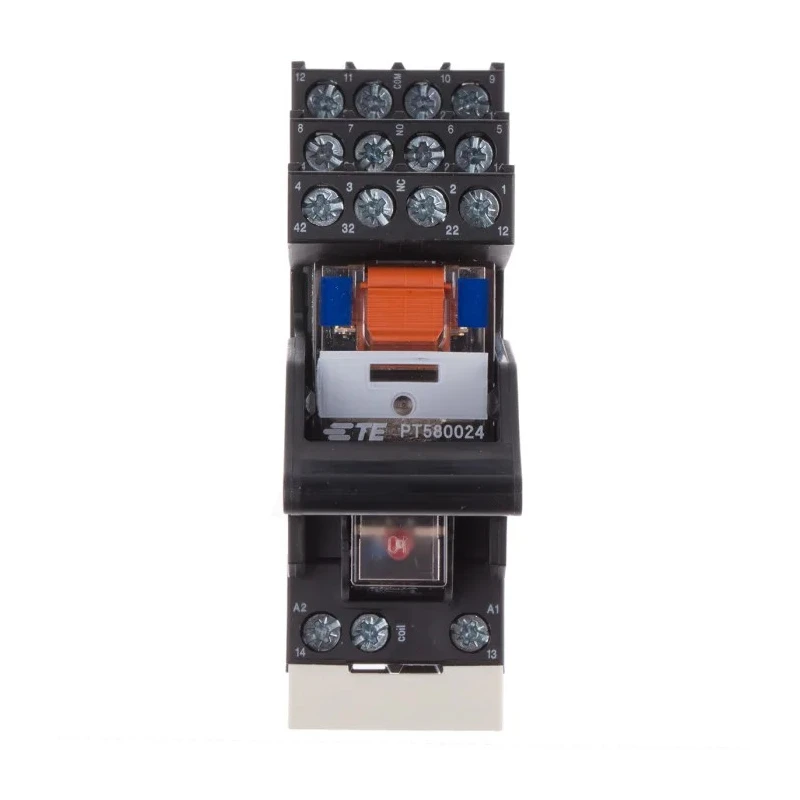

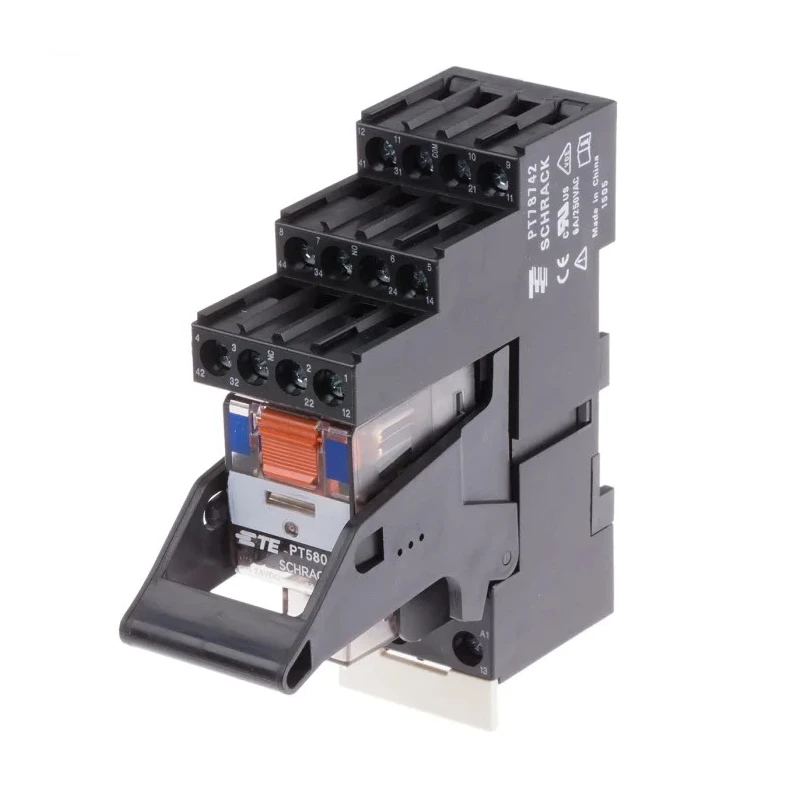

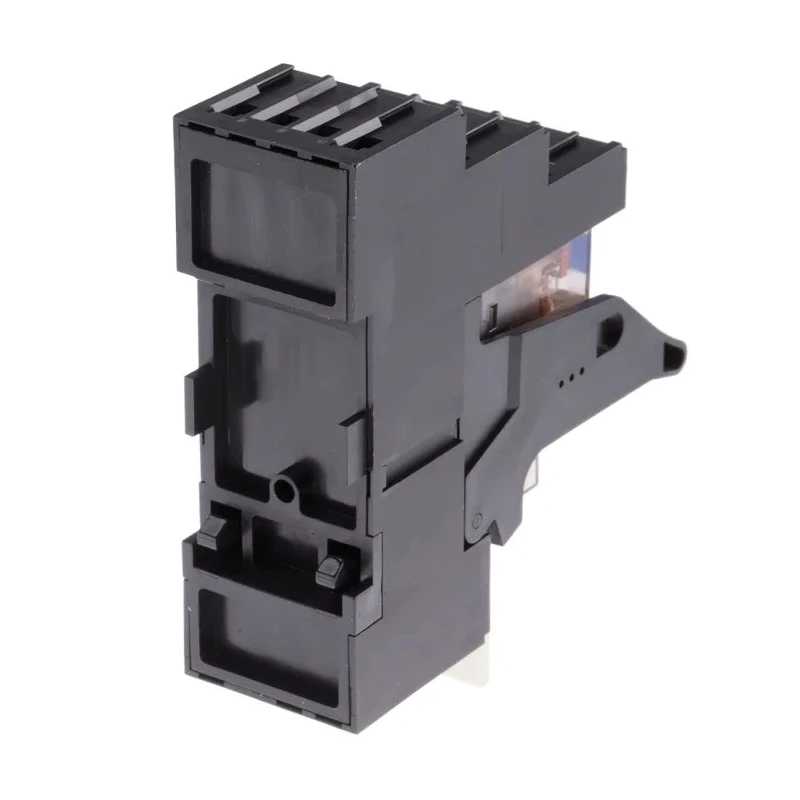

TE Connectivity DIN Rail Power Relay 24V dc Coil 6A Switching Current 4PDT PT5L8LC4 1-1415535-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 78.3mm |
| Length | 77mm |
| Model | PT5L8LC4 1-1415535-8 |
| Width | 27.2mm |
| Mount Type | DIN Rail |
| Contact Material | Gold Plated |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | UL, RoHS, IEC, VDE |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 750mW |
Key Features
- Operates with a 24V dc coil voltage for consistent performance.
- Features a 4PDT contact configuration suitable for complex switching applications.
- Designed for DIN rail mounting ensuring easy and secure installation.
- Supports a switching current of 6 amperes to handle robust electrical loads.
- Contact material is gold plated for enhanced conductivity and durability.
- Includes screw terminal type for secure electrical connections.
- Rated switching power of 1.5 kVA at 240V ac for versatile use.
- Operates between temperatures of -40°C to 70°C ensuring wide environmental tolerance.
Product Description
TE Connectivity PT5L8LC4 1-1415535-8 DIN Rail Power Relay is engineered for industrial and electrical automation applications, providing dependable switching capacity with a 24V dc coil and 6A switching current.
This relay features a 4PDT contact configuration, allowing multiple circuit control with gold plated contacts to ensure optimal conductivity and long-lasting operation. The relay is designed for DIN rail mounting, facilitating straightforward installation in control panels and electrical enclosures.
With a switching power rating of 1.5 kVA at 240V ac, this relay supports various industrial and commercial switching requirements. It includes screw terminals for secure wiring and has a coil power consumption of 750 mW with coil resistance of 777 Ω. The device withstands operating temperatures from -40°C up to 70°C, making it reliable in diverse environmental conditions.
The package includes the relay, DIN rail socket, module, retainer, and marking tab, supporting installation and operational convenience. Additional features include mechanical and electrical indicators and a manual test tab for easy maintenance and troubleshooting. DC versions include LED and protection diode modules for enhanced safety.
Compliant with IEC 61810-1 standards and carrying UL, RoHS, IEC, and VDE approvals, this relay is suitable for industrial control systems, automation, building management, and electrical power distribution setups.
Operates with a 24V dc coil voltage for consistent performance. Features a 4PDT contact configuration suitable for complex switching applications. Designed for DIN rail mounting ensuring easy and secure installation. Supports a switching current of 6 amperes to handle robust electrical loads.
Contact material is gold plated for enhanced conductivity and durability. Includes screw terminal type for secure electrical connections. Rated switching power of 1.5 kVA at 240V ac for versatile use. Operates between temperatures of -40°C to 70°C ensuring wide environmental tolerance.
Compact dimensions with length 77 mm, width 27.2 mm, and height 78.3 mm. Explore more Power Relay options and electrical automation components at EnvMart to meet your industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a 24V dc coil voltage.
It supports a maximum switching current of 6 amperes.
It features a 4PDT contact configuration, allowing for complex switching applications.
The relay has a length of 77 mm, a width of 27.2 mm, and a height of 78.3 mm.
The relay is rated for a switching power of 1.5 kVA at 240V ac.
It includes screw terminals for secure electrical connections.
It operates between -40°C and 70°C, ensuring wide environmental tolerance.
Yes, it is compliant with UL, RoHS, IEC, and VDE standards.
The coil power consumption is 750 mW.
The contacts are made of gold plated material for enhanced conductivity.
It is designed for DIN rail mounting, facilitating easy and secure installation.
It includes mechanical and electrical indicators, a manual test tab, and DC versions with LED and protection diode modules for enhanced safety.
