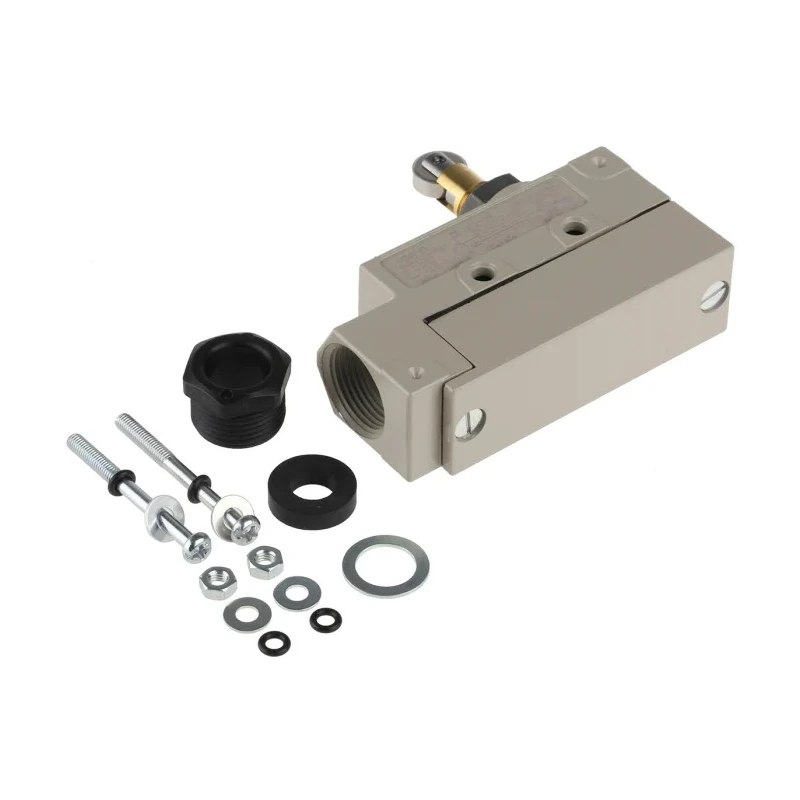

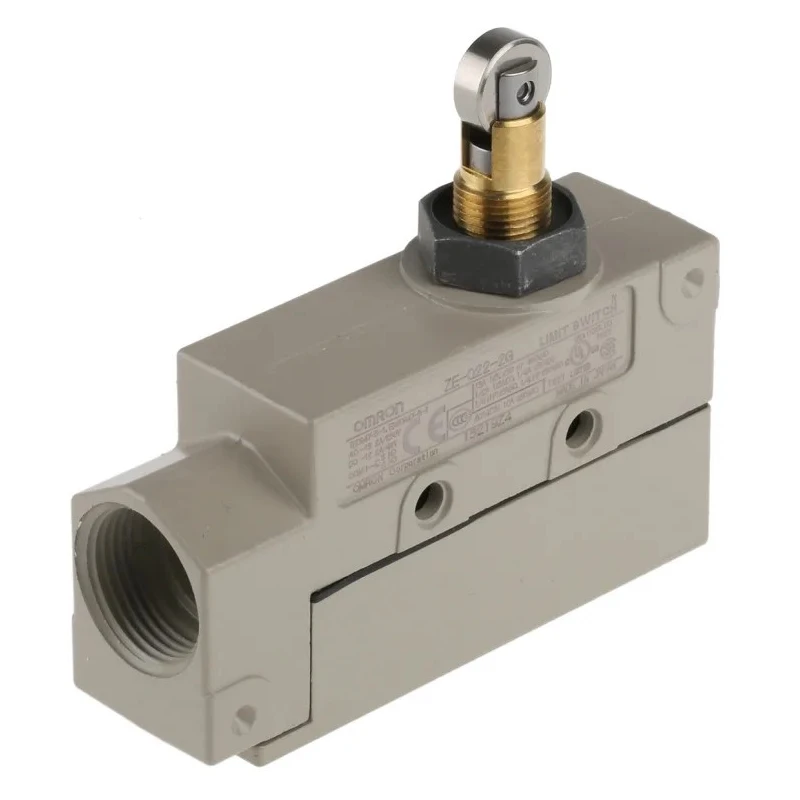

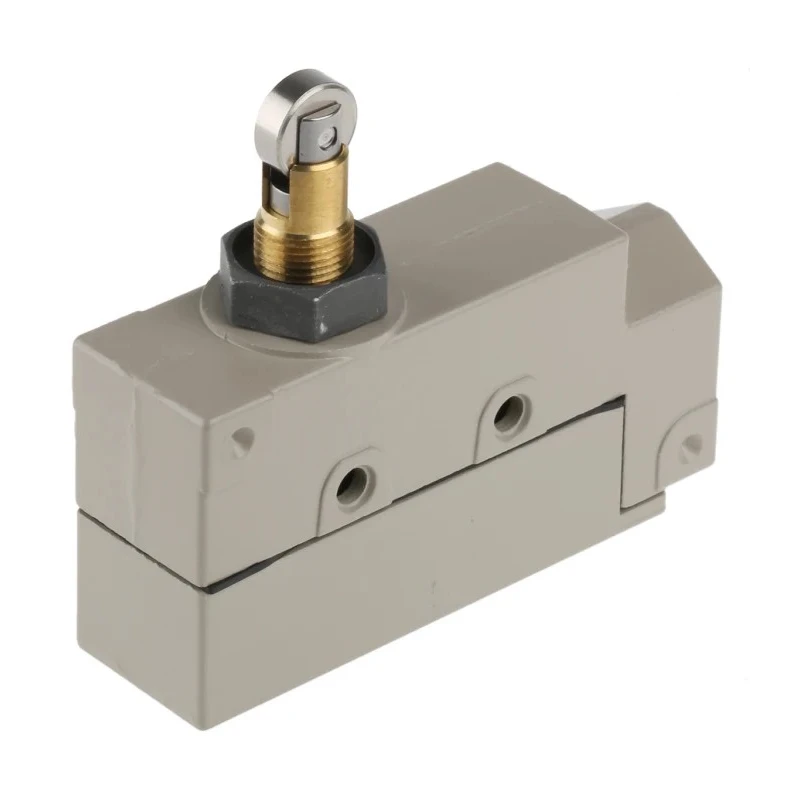

Omron ZE Series Plunger Limit Switch SPDT IP65 480V AC 15A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 75.2mm |
| Model | IP65 |
| Depth | 25.4mm |
| IP Rating | IP65 |
| Width | 86mm |
| Series | ZE |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Side |
| Contact Configuration | SPDT |
| Actuator Type | Plunger |
| Minimum Operating Temperature | -10°C |
| Switching Current | 15A |
| Terminal type | Screw |
| Standards/Approvals | CSA approval |
| Operating Force | 10.20N |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 480V ac |
| XW5S Short Bar for use with XW5T-S6.0-1.1-1 Feed Through Terminal BlockBrand | Omron |
Key Features
- Features a snap action plunger actuator for quick and accurate switching.
- Rated IP65 for protection against dust and water ingress, suitable for harsh environments.
- Capable of handling switching currents up to 15A and voltages of up to 480V AC and 250V DC.
- Mechanical life rated at 10,000,000 cycles ensuring long-term reliable operation.
- Operating temperature range from -10°C to 80°C adapts to various industrial conditions.
- Equipped with screw terminals for secure and convenient wiring connections.
- Compact dimensions with length 75.2mm, width 86mm, and depth 25.4mm for easy installation.
- Designed for side mounting orientation to integrate seamlessly in control systems.
Product Description
Omron ZE-Q22-2G is a plunger type limit switch with SPDT contact configuration, rated IP65 for robust protection against dust and water, suitable for industrial automation and control applications. It handles high-voltage switching up to 480V AC and 15A current, making it ideal for demanding electrical environments.
Built with a snap action plunger actuator, this switch delivers precise and reliable switching performance. Its long mechanical life of 10,000,000 cycles ensures durability in continuous operational use.
The device operates effectively across a broad temperature range of -10°C to 80°C and features screw terminals for firm electrical connections. Its compact size allows easy side-oriented mounting in various machinery and equipment.
The ZE-Q22-2G is manufactured in Japan and has CSA approval, guaranteeing adherence to international safety standards. Its rugged IP65 enclosure rating confirms its suitability for harsh environments, including outdoor applications where dust and water protection are crucial.
Snap action plunger actuator for quick switching. High IP65 ingress protection rating. Switching current of up to 15A and voltage up to 480V AC. Mechanical life of 10,000,000 cycles for longevity. Wide operating temperature range: -10°C to 80°C.
Screw terminal type for reliable connections. Compact dimensions for flexible mounting options. Side mounting orientation for integration into control panels. CSA approved and Japan made for quality assurance.
This limit switch is perfectly suited for automation, manufacturing equipment, electrical control panels, and any application requiring reliable position detection and robust environmental protection. Browse through EnvMart's comprehensive Limit Switch catalog to find more components for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum switching current of 15A and a voltage of up to 480V AC, as well as 250V DC.
It has an IP65 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
The mechanical life of this limit switch is rated at 10,000,000 cycles, ensuring long-term reliable operation.
It operates effectively within a temperature range of -10°C to 80°C, allowing it to adapt to various industrial conditions.
This unit features a plunger type actuator, which provides quick and accurate switching performance.
It is designed for side mounting orientation, allowing for seamless integration into control systems.
The dimensions of this model are 75.2mm in length, 86mm in width, and 25.4mm in depth.
It is equipped with screw terminals, which provide secure and convenient wiring connections.
This model has CSA approval, ensuring it meets international safety standards.
It is suitable for automation, manufacturing equipment, electrical control panels, and applications requiring reliable position detection.
The contact configuration of this model is SPDT (Single Pole Double Throw).
This limit switch is manufactured in Japan, indicating a standard of quality assurance.
