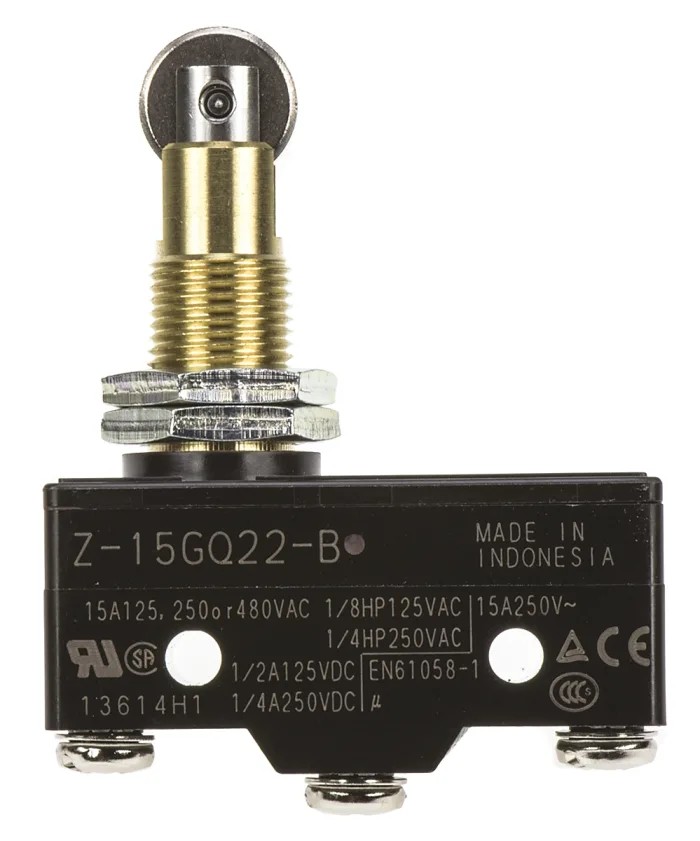

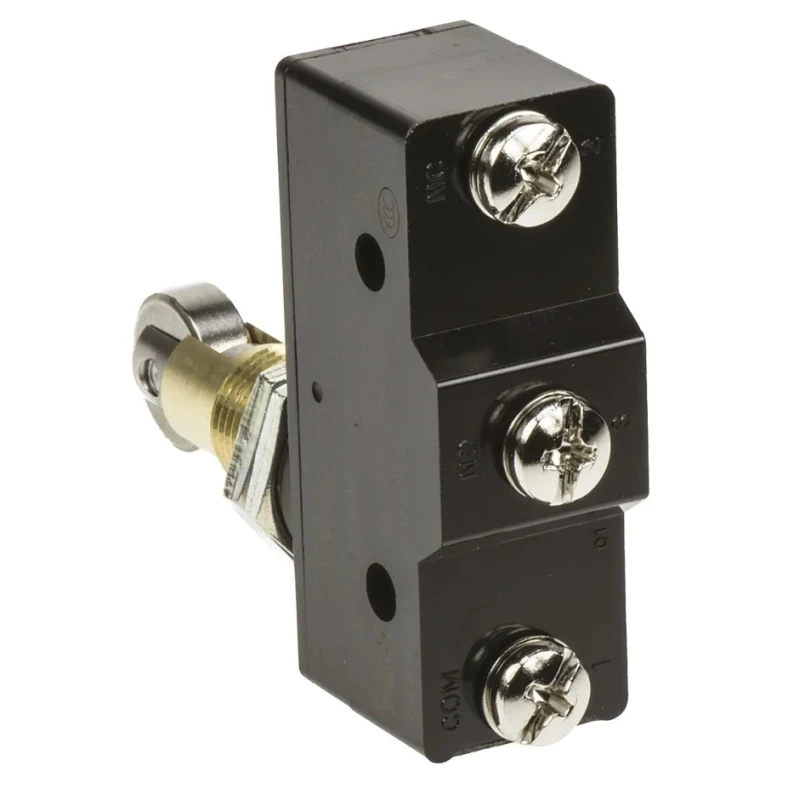

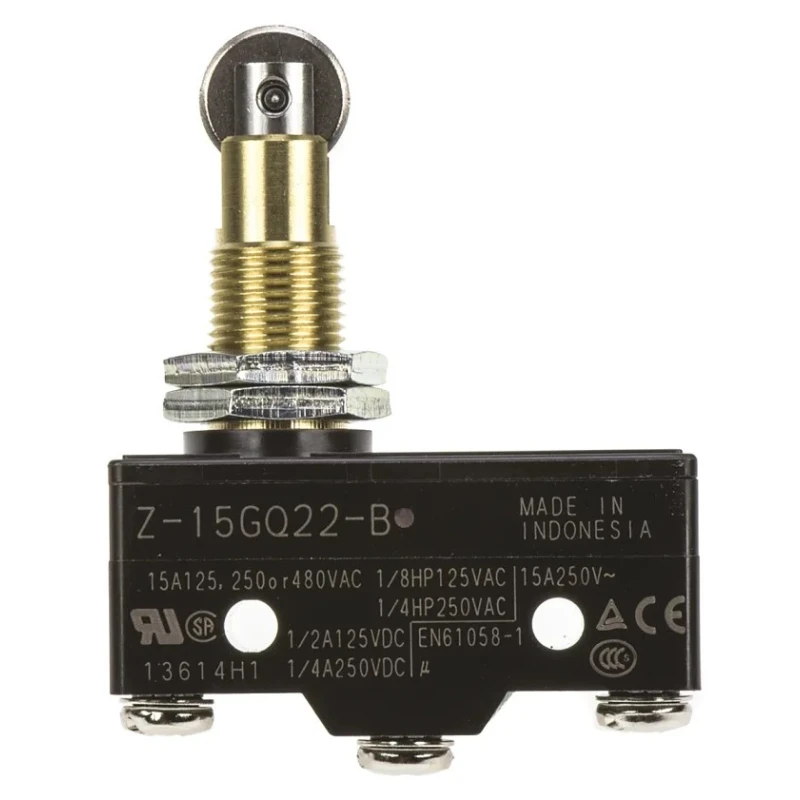

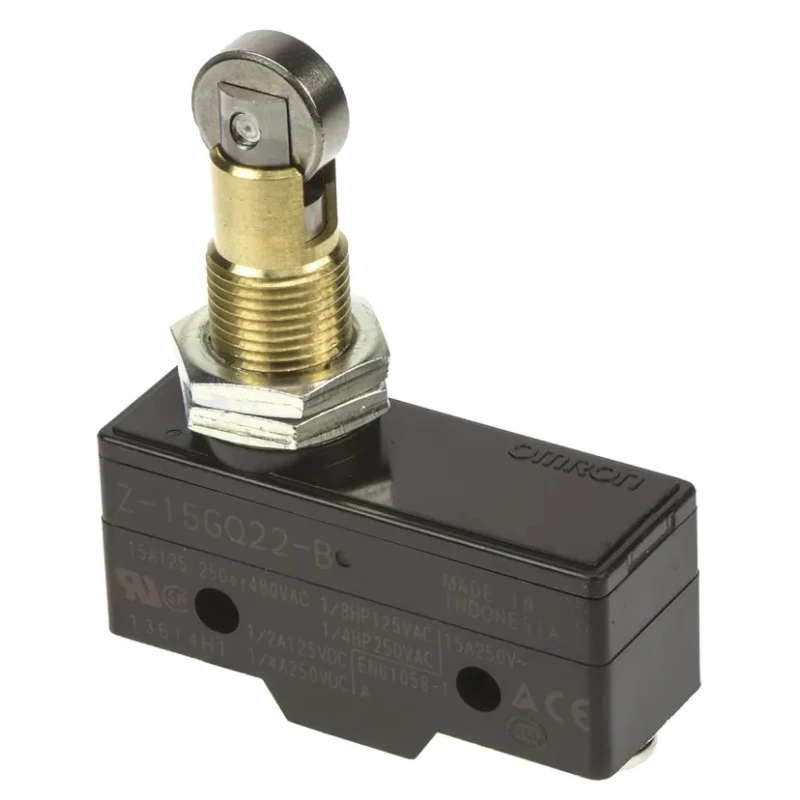

Omron Z Series Plunger Limit Switch SPDT PVC Phenolic Resin Metal Housing 250V AC 15A IP00
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Length | 58.9mm |
| Model | IP00 |
| Depth | 17.45mm |
| IP Rating | IP00 |
| Width | 49.2mm |
| Housing Material | PVC, Phenolic Resin, Metal |
| Series | Z |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Panel |
| Contact Configuration | SPDT |
| Actuator Type | Plunger |
| Contact Rating | 250Vac 15A, 14Vdc 15A |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Screw |
| Standards/Approvals | CCC, CE, CSA, UL |
| Mechanical Life | 10000000Cycles |
| Switching AC Voltage | 250V ac |
| ZF Roller Plunger Micro Switch, Screw Terminal, 15A, 250 V ac, SPDTBrand | ZF |
| Omron Roller Plunger Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A MaxBrand | Omron |
Key Features
- The plunger actuator requires only 250-350g force for actuation, ensuring high accuracy.
- SPDT contact configuration allows switching between two circuits or controlling a single circuit.
- Designed for harsh operating conditions with an IP00 ingress protection rating.
- Operates effectively in temperatures ranging from -25°C to 80°C.
- Durable mechanical life of 10 million cycles assures long-term reliability.
- Screw terminal type enables secure electrical connections.
- Suitable for industrial automation applications like packaging plants, distribution centres, and engineering workshops.
Product Description
Omron Z-15GQ22-B Plunger Limit Switch from the Z Series offers a reliable and precise switching solution for industrial automation systems. This snap-action limit switch is designed to activate or deactivate circuits when a mechanical plunger is pressed by an object or equipment part, making it ideal for automated conveyor belts or machine tools.
Constructed with a robust combination of PVC, phenolic resin, and metal housing, it ensures durability and resilience in various industrial environments. The SPDT (Single Pole Double Throw) contact configuration permits versatile circuit control options.
The switch supports a maximum voltage of 250V AC and a current rating of 15A, suitable for high-power applications. Its IP00 protection rating indicates no ingress protection, recommending use in controlled environments or enclosed setups.
Operational temperature spans from -25°C up to 80°C, enabling dependable use across diverse climatic conditions. Its mechanical life exceeds 10 million cycles, promising extended service life and minimal maintenance.
The device features screw-type terminals for secure and stable wiring connections. With compact panel mounting dimensions of 58.9mm length, 49.2mm width, and 17.45mm depth, it integrates seamlessly into control panels.
Typical applications include packaging plants, distribution centres, and engineering workshops that require reliable position detection and circuit control. The Z Series switches deliver consistent performance with high repeatability and snap-action mechanism ensuring immediate contact operation regardless of actuation speed.
The plunger actuator requires minimal force for activation, enhancing precision. SPDT contacts allow switching one circuit on/off or toggling between circuits. Rated for 250V AC voltage and 15A switching current for demanding applications.
Extensive mechanical life of 10 million cycles provides long operational reliability. Suitable for a wide temperature range ensuring stable performance. Robust PVC, phenolic resin, and metal housing ensure durability. Compact and panel-mountable design with screw terminals for easy installation.
Explore more in our extensive range of Limit Switches at EnvMart, where quality and reliability meet industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPDT (Single Pole Double Throw) contact configuration, allowing it to switch between two circuits or control a single circuit.
It supports a maximum voltage of 250V AC and a current rating of 15A, making it suitable for high-power applications.
The housing is constructed from a combination of PVC, phenolic resin, and metal, ensuring durability and resilience in various environments.
It operates effectively within a temperature range of -25°C to 80°C, allowing dependable use across diverse climatic conditions.
This unit has an extensive mechanical life rated at 10 million cycles, promising long operational reliability and minimal maintenance.

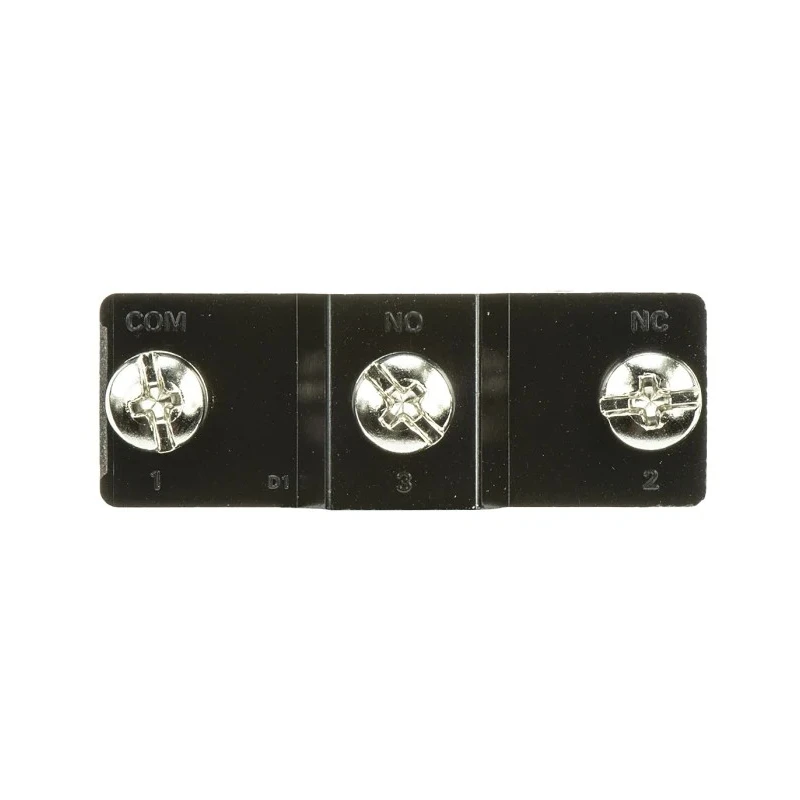

It features screw-type terminals, which enable secure and stable wiring connections.
The dimensions are 58.9mm in length, 49.2mm in width, and 17.45mm in depth, making it compact for panel mounting.
This switch has an IP00 ingress protection rating, indicating no ingress protection, and is recommended for use in controlled environments or enclosed setups.
It is suitable for industrial automation applications such as packaging plants, distribution centres, and engineering workshops that require reliable position detection and circuit control.
The actuator type for this model is a plunger, designed to activate or deactivate circuits when pressed by an object or equipment part.
This limit switch complies with several standards including CCC, CE, CSA, and UL, ensuring it meets various regulatory requirements.
The plunger actuator requires a force of only 250-350g for actuation, ensuring high accuracy in operation.
