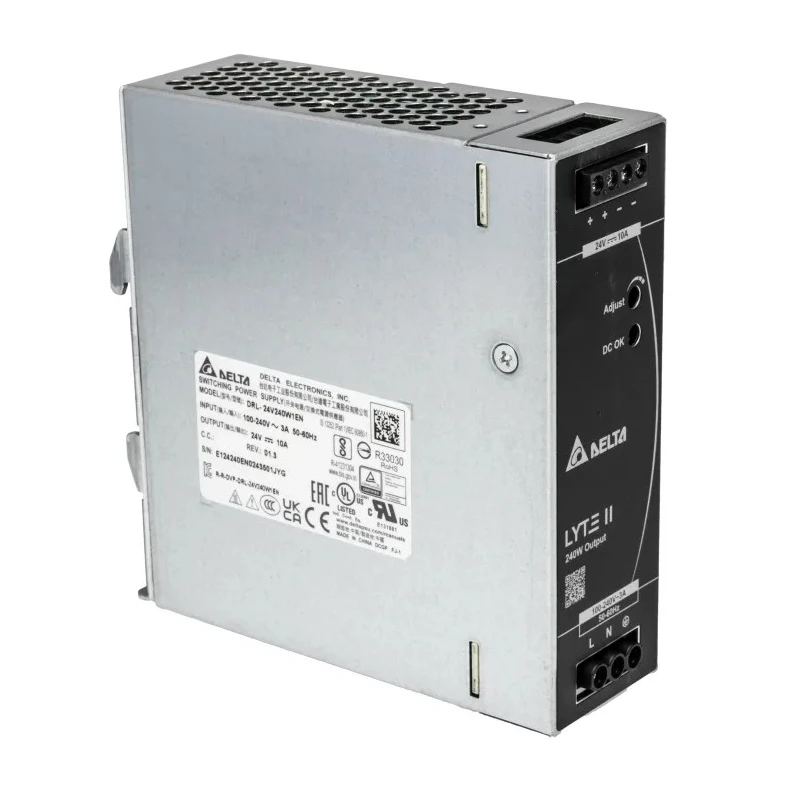

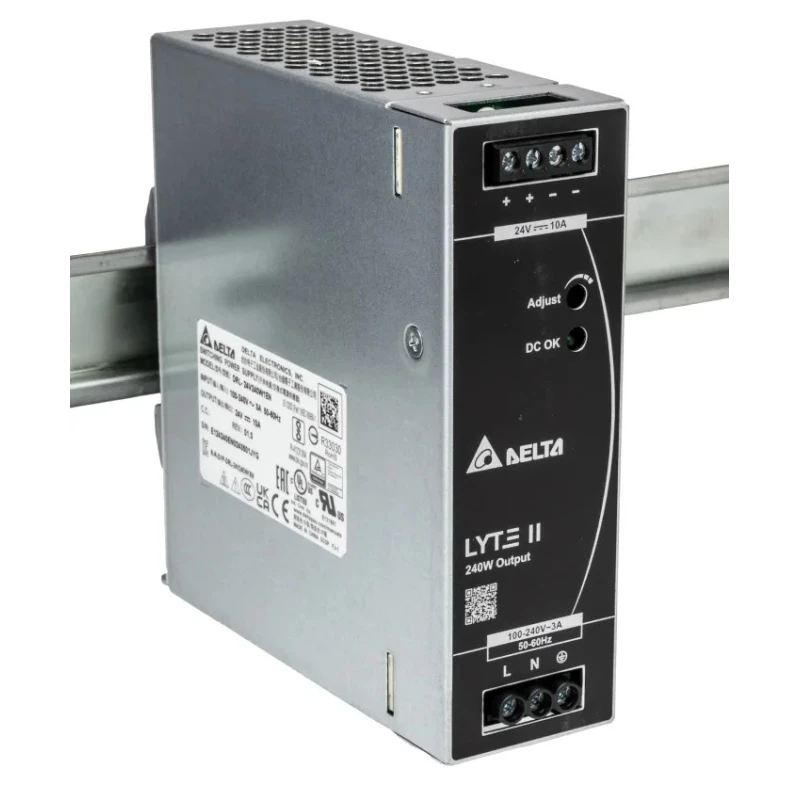

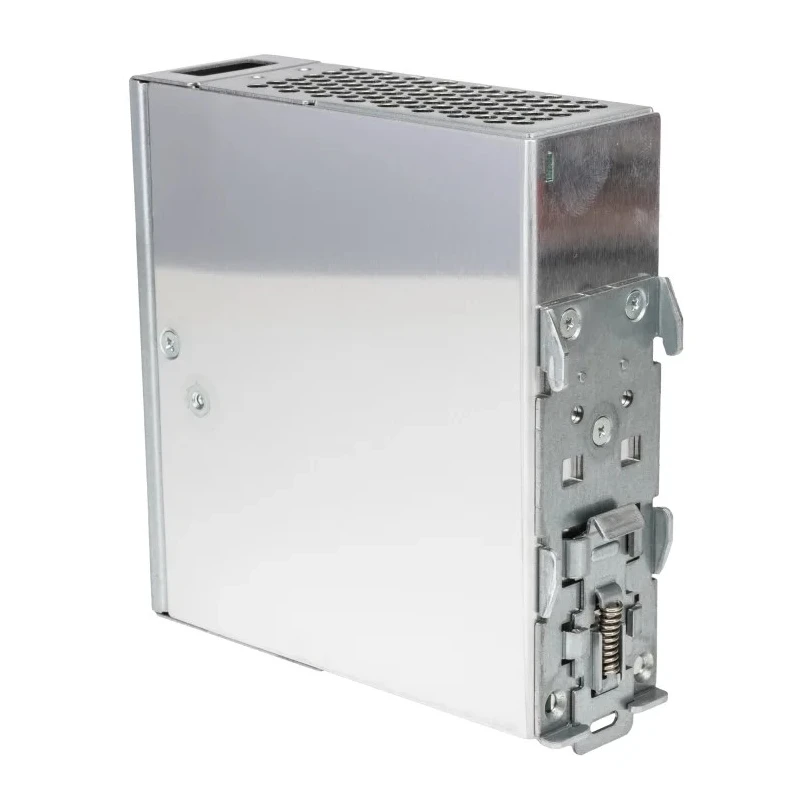

Delta Electronics DRL Switched Mode DIN Rail Power Supply 24V dc, 10 A Output, 240 W, AC Input 90 to 264V ac DRL-24V240W1EN

Delta Electronics DRL-24V240W1EN DIN Rail Power Supply is a switched mode single phase unit designed to provide a stable 24V dc output at 10 A with a power rating of 240 W. It features a universal AC input voltage range from 90V to 264V ac, enabling versatile application in diverse environments. The power supply is convection-cooled, operating reliably under ambient temperatures ranging from -30°C up to 50°C at full power, with derating function extending operation up to 70°C and a cold start temperature of -40°C.

The unit is constructed with a slim and compact design (123.6mm height, 40mm width, 116.8mm depth) ideal for mounting on standard DIN rails commonly used in industrial, laboratory, manufacturing, and electrical distribution environments. It incorporates a built-in constant current circuit, enabling it to effectively handle reactive loads including inductive and capacitive devices.

This high power density module features a relay contact for operational status signaling and maintains a high efficiency level of 90%, ensuring reduced power consumption and heat dissipation. The product complies with RoHS standards and is manufactured in China, reflecting quality and environmental considerations.

Its broad voltage input capability and robust temperature tolerance make it suitable for industrial machinery control systems, HVAC applications, automation equipment, and any systems requiring reliable DC power supply from AC sources. The DRL series provides consistent performance and durability necessary for demanding electrical component installations.

Switched mode DIN rail power supply with 24V dc and 10 A output current. Universal AC input voltage range: 90V to 264V ac. Operating temperature range: -30°C to 70°C with -40°C cold start. Convection-cooled design suitable for industrial applications.

Built-in constant current circuit for inductive and capacitive load compatibility. Slim dimensions: 123.6mm (H) x 40mm (W) x 116.8mm (D). Relay contact included for signaling. RoHS compliant and made in China. High efficiency of 90% enables energy savings.

For professional electronic component solutions, explore the range of DIN Rail Power Supplies available at EnvMart, including this reliable Delta Electronics DRL-24V240W1EN model.
