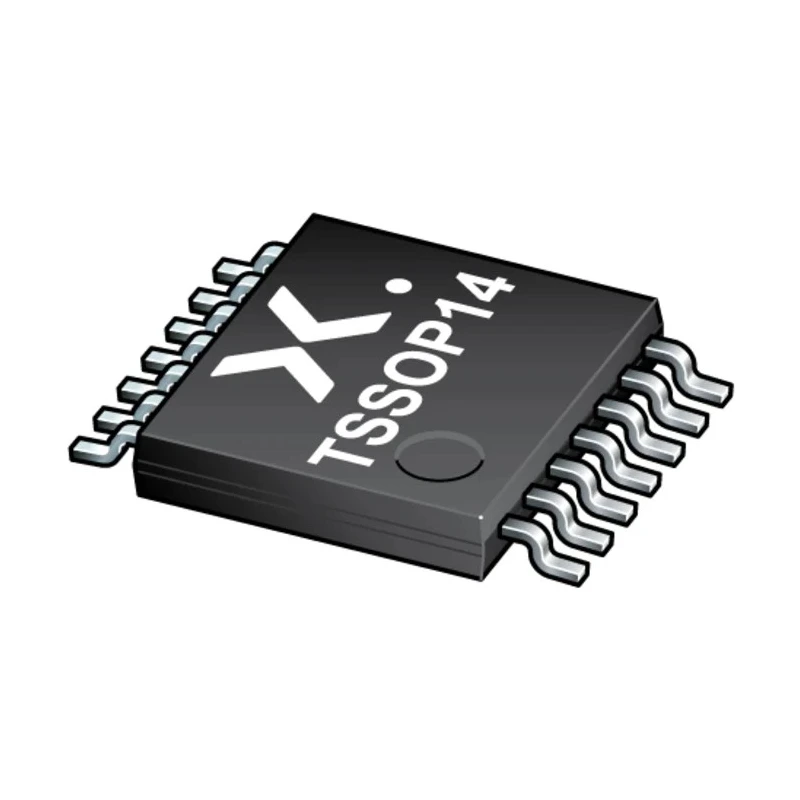

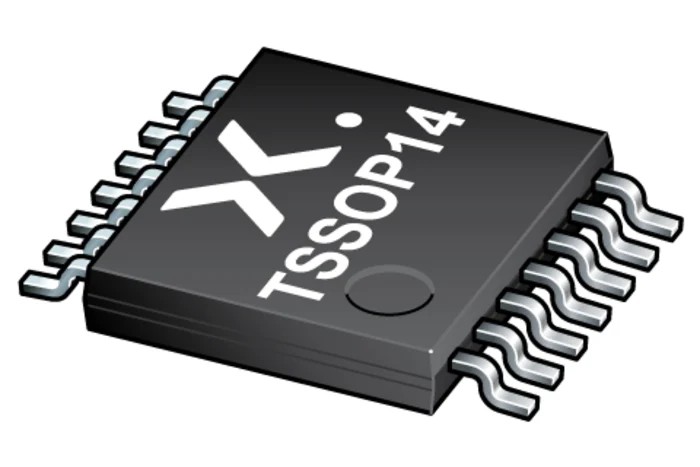

Nexperia 6-Channel Buffer & Line Driver Open Drain Non-Inverting 14-Pin TSSOP 74LVC07APW,118

Nexperia 74LVC07APW,118 is a 6-channel buffer and line driver with open drain, non-inverting outputs housed in a 14-pin TSSOP package. It operates over a wide supply voltage range from 1.65V to 5.5V, making it compatible with both 3.3V and 5V systems, allowing seamless interfacing between different voltage domains.

This buffer IC features low power consumption with a supply current of 40μA, which is advantageous for battery-operated and low-power electronic applications. The high-speed propagation delay of 6.5ns ensures rapid signal transmission, suitable for timing-critical digital circuits.

The device's open drain outputs enable wired-AND logic configurations, beneficial in bus-oriented systems and mixed-signal environments. Nexperia’s 74LVC07APW,118 delivers a maximum low-level output current of 32mA, allowing it to drive multiple downstream devices.

Its operational temperature range from -40°C to 125°C caters to industrial and commercial electronics, ensuring reliable performance under harsh conditions. The compact TSSOP package with precise dimensions (8.75mm length, 4mm width, 1.75mm height) facilitates efficient PCB layout and integration.

Common uses include buffering and level shifting in digital communication lines, signal conditioning in embedded systems, and interface buffering in mixed-voltage environments. The CMOS input type offers high noise immunity and low input current characteristics.

Operates between 1.65V and 5.5V supply range. Contains 6 buffered output channels. Low power consumption of 40μA supply current. Compact 14-pin TSSOP surface mount package. High-speed operation with 6.5ns maximum propagation delay.

Non-inverting open drain output type for flexible interfacing. Wide temperature range (-40 to 125°C) for industrial robustness. Dimensions: 8.75mm length × 4mm width × 1.75mm height.

This Nexperia 74LVC07APW,118 buffer and line driver IC is ideal for industrial, commercial, and consumer electronic applications, enabling effective signal buffering and interface translation. For further product options and detailed specifications, explore the Semiconductor category at EnvMart.
