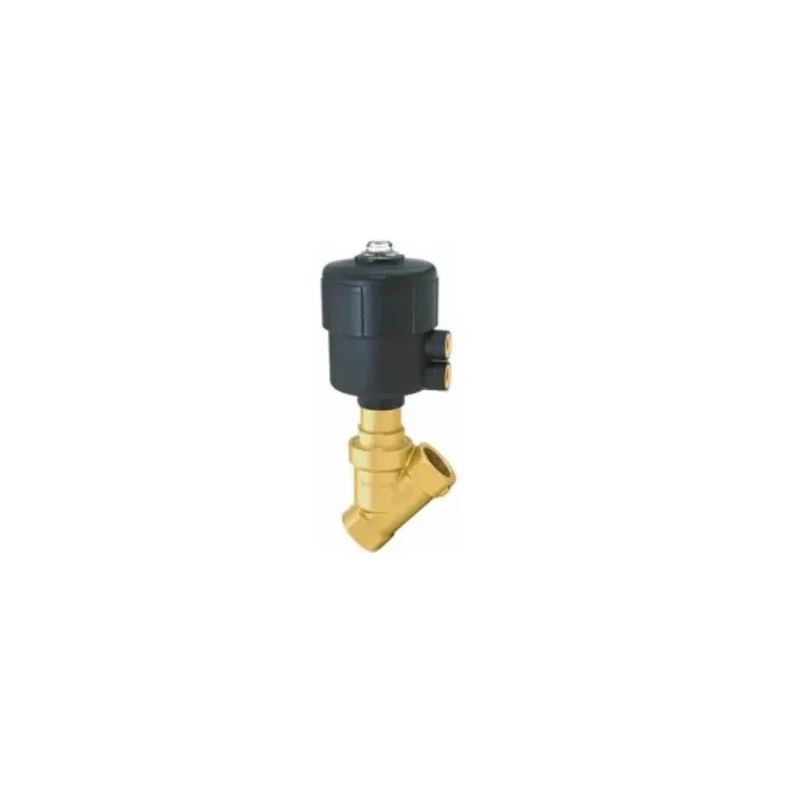

Buschjost Pneumatic Actuated Angle Seat Valve 10 bar, Female Threaded 3/4 in 8450300.0000.00000

Buschjost 8450300.0000.00000 Pneumatic Actuated Angle Seat Valve is engineered for precise fluid control in demanding industrial environments including chemical plants, mining operations, oil refineries, and water treatment facilities. This valve operates by pneumatic actuation providing reliable open and close functionality with pressure supply from 0 to 10 bar. Its durable brass body offers rust-resistant performance, suitable for humid and harsh conditions.

The valve accommodates a female threaded 3/4 inch inlet and outlet port with standard G threading, facilitating easy integration with existing pipeline systems. The valve is designed with a spring return mechanism that ensures the valve defaults to a normally closed (NC) position when pneumatic pressure is not applied, enhancing safety and control.

Operating across a temperature range of -10°C to 60°C, the valve maintains performance stability in varying thermal conditions. Its compact size (67 mm x 28.5 mm x 44 mm) and light weight (1.5 kg) allow for versatile placement and minimal additional load on piping assemblies. NBR seat seals provide outstanding chemical resistance, minimizing leakage and extending operational lifespan.

Additional features include an optical position indicator for real-time valve status viewing and the capability to mount the valve in any orientation, maximizing installation flexibility.

This pneumatic actuated valve is ideal for applications demanding reliable, quick-response fluid control in industrial, chemical processing, mining, HVAC, and water management systems.

Operates at a maximum pressure of 10 bar for reliable fluid handling. Constructed with dezincification brass for enhanced corrosion resistance. Female threaded inlet and outlet connections sized at 3/4 inch. Suitable for operating temperatures ranging from -10°C to 60°C.

Spring return ensures default valve position is normally closed. Compact dimensions of 67 mm length, 28.5 mm width, and 44 mm height for space-saving installation. Weighs approximately 1.5 kg, minimizing system load. Equipped with an optical position indicator for easy valve status monitoring.

Mountable in any orientation for installation flexibility. Resistant to chemical damage with NBR seat seals for leak-free service life. Explore more Pneumatic Actuated Valves and industrial valves at EnvMart for comprehensive fluid control solutions.
