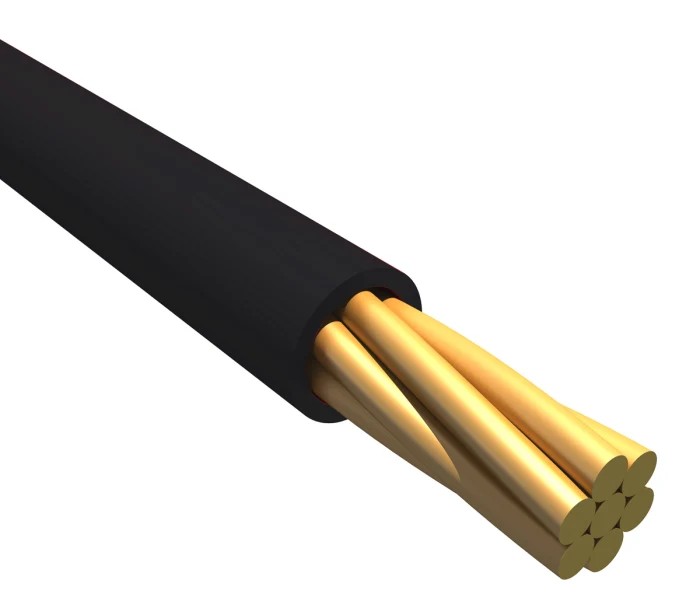

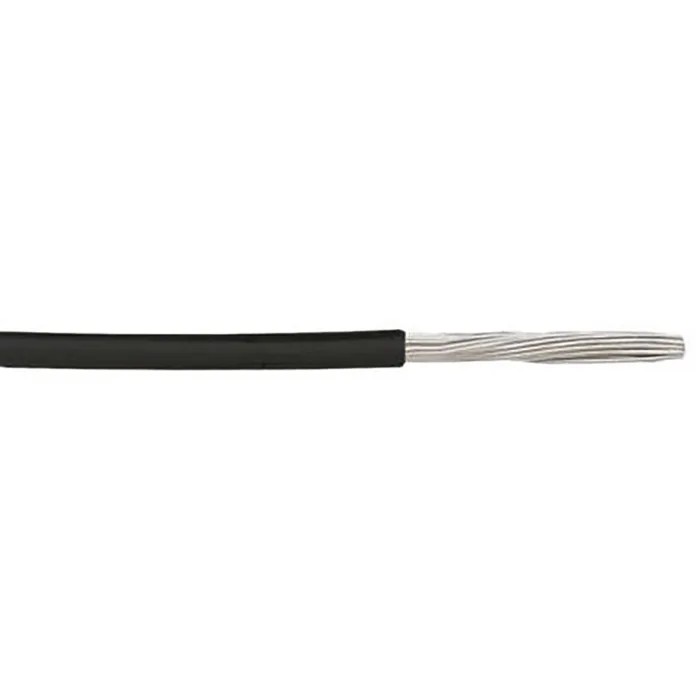

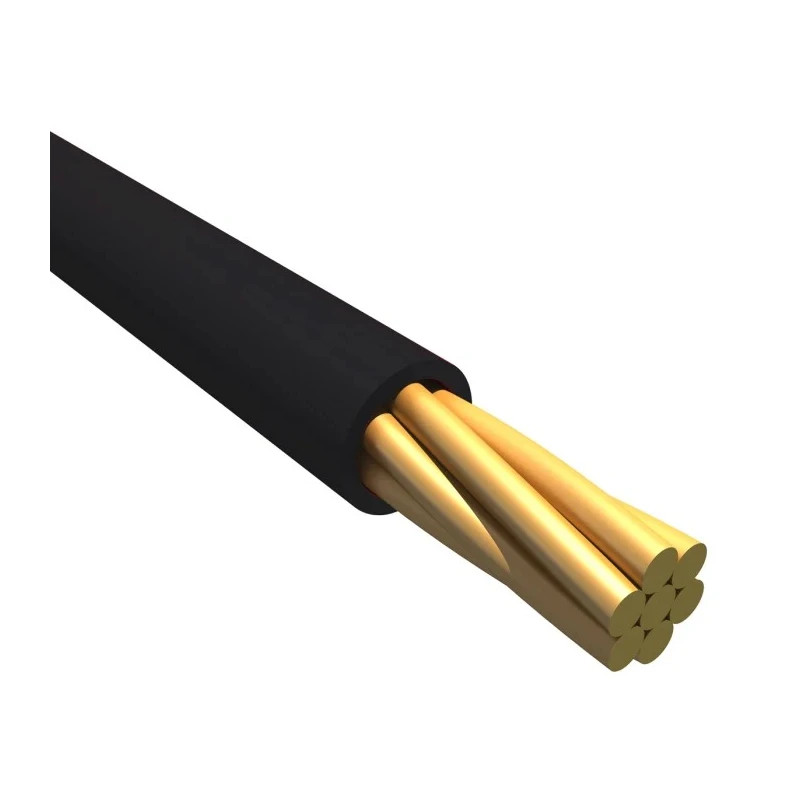

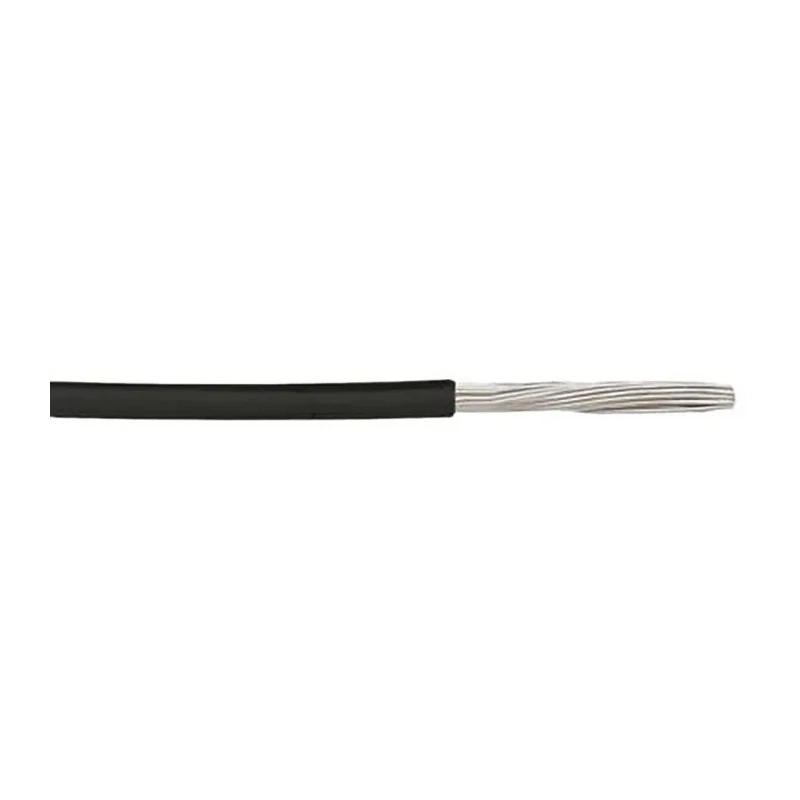

Nexans EcoWire Plus 3.3 mm² Black Hook Up Wire 12 AWG, 19x0.46 mm Core Strands, 30 m Length, MPPE Insulation 6830 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Nexans |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 3.3mm² |
| Model | 6830 BK005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 3.05mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.015 Inch (0.38 mm) |
| Wire Diameter | 0.120 Inch (3.05 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 12 AWG (3.08 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke Halogen Free, RoHS Compliant |
| American Wire Gauge | 12AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.46mm |
| Size of Strands | 0.46mm |
| Stranding | 19/25 (19 x 0.46) |
| Nexans Equipment Wire, 90m, Polyamide Insulation, 2100 3.18 G12 BLANCBrand | Nexans |
Key Features
- Constructed with 19 stranded copper core strands of 0.46 mm diameter each.
- Overall wire diameter is 3.05 mm with black jacket color.
- Designed to operate at voltages up to 300 V with max temperature rating of 110°C.
- MPPE insulation provides excellent resistance to oils, solvents, and hazardous fluids.
- Temperature range spans from -40°C to +110°C for versatile use conditions.
- Flame retardant, halogen free, and low smoke halogen free design complying with RoHS and WEEE regulations.
- EcoWire Plus insulation is tough yet lightweight, offering superior dielectric strength with reduced wall thickness.
Product Description
Alpha Wire EcoWire Plus 6830 BK005 is a professional grade 12 AWG hook up wire with a cross-sectional area of 3.3 mm² featuring black MPPE insulation. This wire is suitable for demanding factory and industrial applications requiring reliability and durability.
The conductor consists of 19 strands of copper, each 0.46 mm in diameter, collectively providing excellent conductivity and flexibility. The overall wire diameter is 3.05 mm with sturdy yet lightweight modified polyphenylene ether (mPPE) insulation, enhancing fluid resistance and dielectric strength compared to standard PVC insulation.
Operating voltage is rated at 300 V and the wire can safely function in a temperature range from -40°C up to 110°C. It is flame retardant, halogen free, low smoke halogen free, RoHS compliant, and meets CE and ISO 6722 standards, ensuring safety and environmental compatibility.
This 30 m length wire reel offers excellent protection against hazardous fluids such as oils, solvents, and fuels, making it ideal for applications in solar energy systems, transportation, wind power installations, industrial machinery, and medical equipment.
The EcoWire Plus series focuses on sustainability with an insulation material free from hazardous materials and fully recyclable, helping manufacturers comply with Waste Electrical and Electronic Equipment (WEEE) directives. The thinner insulation wall reduces cable weight without compromising performance.
Constructed with high purity copper strands for superior conductivity. Modified polyphenylene ether insulation provides enhanced temperature tolerance and fluid resistance. Complies with multiple international electrical and environmental standards.
Ideal for industrial, solar, transportation, wind power and medical applications. Provides a recyclable and halogen free alternative to traditional PVC insulated wires.
Choose Alpha Wire EcoWire Plus for high-quality, durable Hook Up Wire solutions suitable for a wide range of electrical and automation needs. Browse more from Alpha Wire at EnvMart for reliable wiring products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 110°C.
This hook up wire is rated for a maximum operating voltage of 300 V.
The cross-sectional area of this wire is 3.3 mm², equivalent to 12 AWG.
The conductor consists of 19 strands, each with a diameter of 0.46 mm.
It features modified polyphenylene ether (MPPE) insulation, which provides excellent resistance to oils, solvents, and hazardous fluids.
The temperature range for this model spans from -40°C to +110°C.
The overall diameter of this hook up wire is 3.05 mm.
Yes, it is RoHS compliant and meets CE and ISO 6722 standards.
This wire is available in a length of 30 meters.
It is suitable for applications in solar energy systems, transportation, wind power installations, industrial machinery, and medical equipment.
The jacket color of this hook up wire is black.
This model is flame retardant, halogen free, and low smoke halogen free, complying with RoHS regulations.
