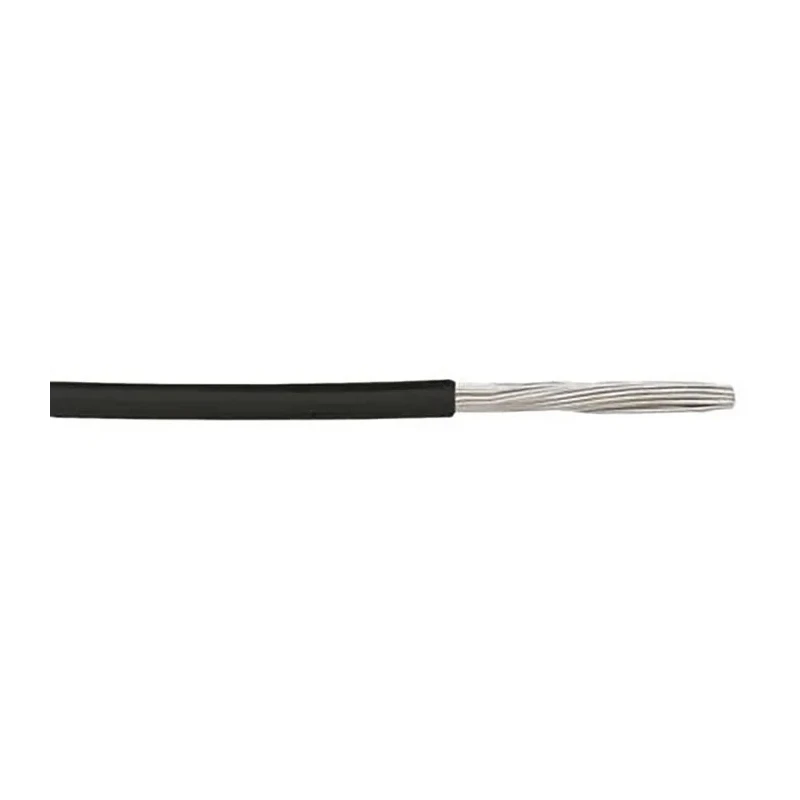

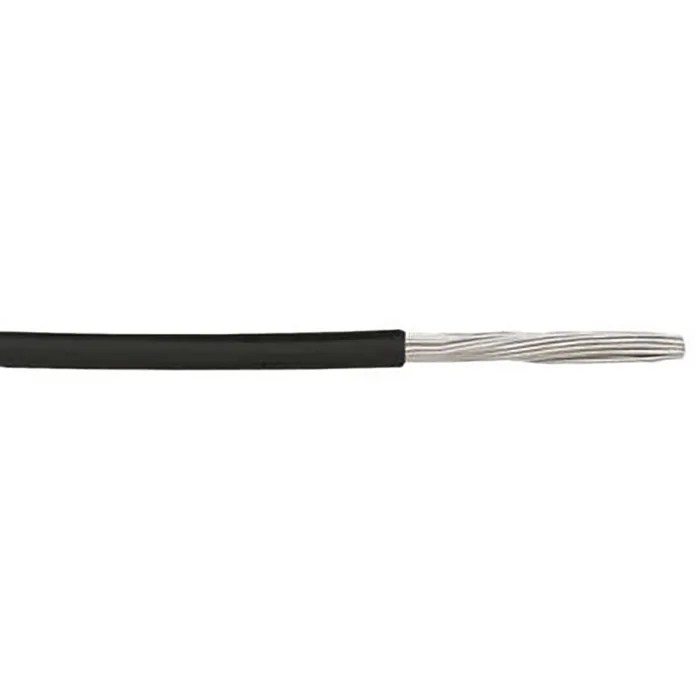

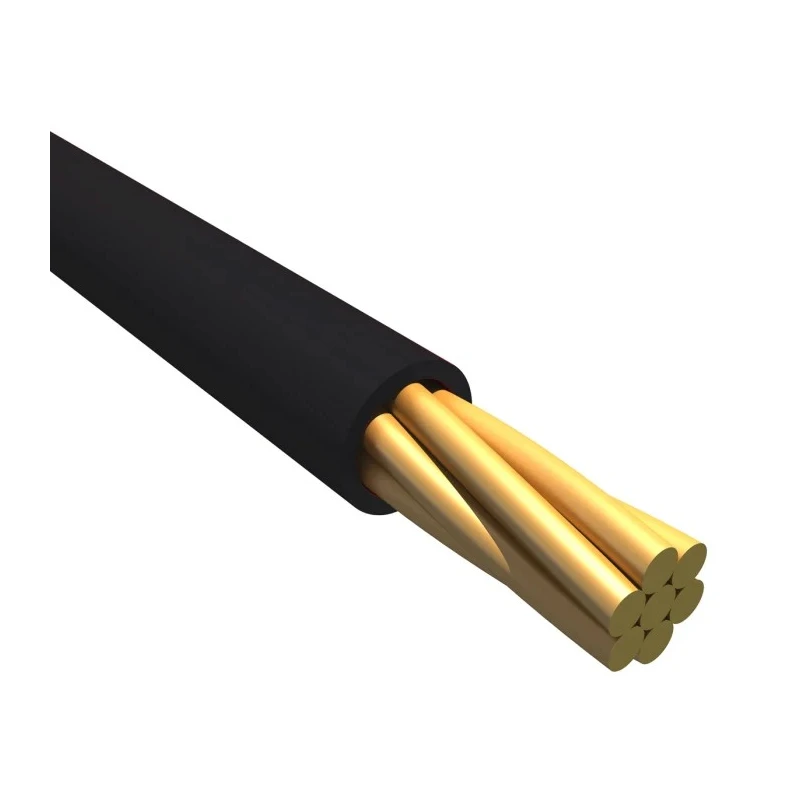

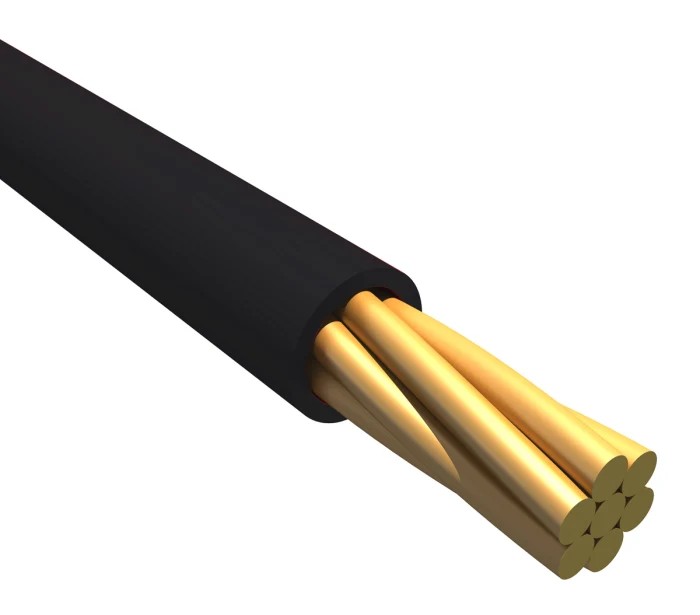

Nexans Ecogen Ecowire Plus Series Black 5.2 mm² 10 AWG 19/0.57 mm Core Strands Hook Up Wire 30 m MPPE 6831 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Nexans |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 5.2mm² |
| Model | 6831 BK005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 3.73mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.017 Inch (0.43 mm) |
| Wire Diameter | 0.147 Inch (3.73 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 10 AWG (4.92 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke |
| American Wire Gauge | 10AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.57mm |
| Size of Strands | 0.57mm |
| Stranding | 19/23 (19 x 0.57) |
| Nexans Equipment Wire, 90m, Polyamide Insulation, 2100 5.15 G10 BLANCBrand | Nexans |
Key Features
- Constructed with 19 strands of 0.57 mm diameter copper conductors for flexibility and conductivity.
- MPPE insulation provides excellent resistance to oils, solvents, and hazardous fluids.
- Operating temperature range from -40°C to 110°C ensures durability in harsh environments.
- Black flame retardant, halogen-free, low smoke jacket material enhances safety.
- EcoWire Plus insulation is recyclable and free of halogens and heavy metals.
- Wire diameter measures 3.73 mm with insulation thickness of 0.43 mm for reduced wall thickness.
Product Description
Alpha Wire 6831 BK005 Ecogen Ecowire Plus Series is a 5.2 mm² (10 AWG) hook-up wire featuring 19 strands of 0.57 mm copper conductors and a total length of 30 meters. The wire utilizes modified polyphenylene ether (MPPE) insulation which is flame retardant, halogen-free, and low smoke, making it suitable for industrial and factory environments.
This wiring solution is engineered for enhanced fluid resistance and a broad temperature tolerance from -40°C up to 110°C, allowing it to function reliably in demanding applications including solar power, transportation, wind power, industrial, and medical sectors.

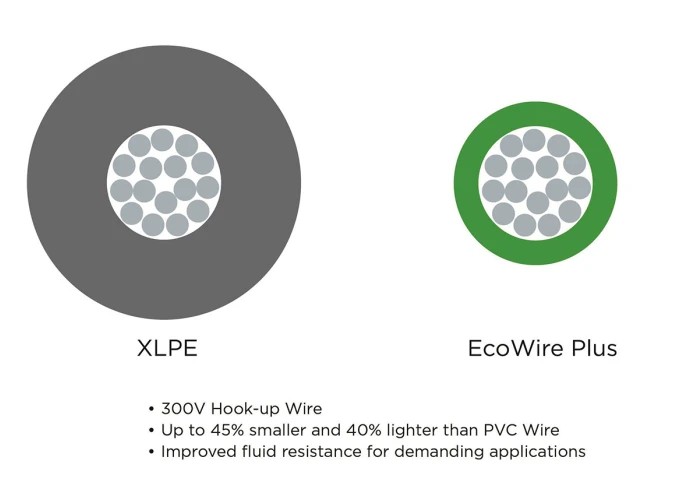

The EcoWire Plus series is designed to meet stringent environmental standards such as RoHS, REACH, CE, and ISO 6722. The lightweight and tough MPPE insulation offers superior dielectric strength combined with reduced wall thickness compared to traditional PVC insulation, enabling compact wiring solutions and easier recyclability.
The conductor size corresponds to 10 AWG (4.92 mm²) with an overall diameter of 3.73 mm. This hook-up wire is rated for 300 volts ensuring safe electrical performance under moderate voltage applications. Its black jacket color and flame retardant properties enhance safety and identification in wiring harnesses.
Constructed from stranded bare copper conductors for optimum conductivity and flexibility. MPPE insulation ensures excellent chemical resistance and sustainability benefits. Temperature and voltage ratings cover a wide range of industrial uses.
Compliance with international standards supports use in regulated environments. Suitable for electrical, automation, industrial wiring, and renewable energy sectors.

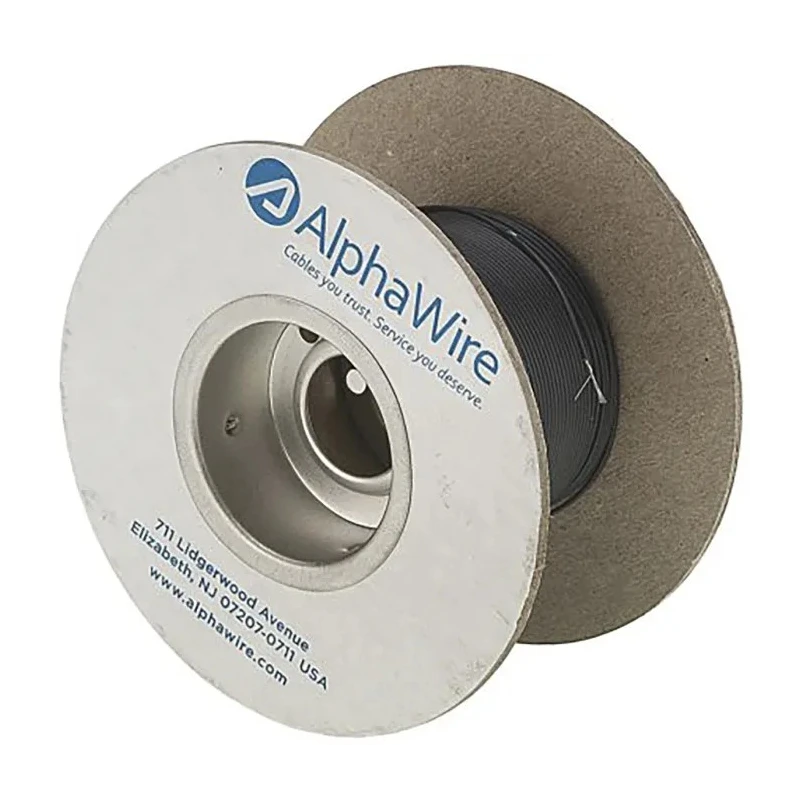

Set contains a single 30 meter reel of Alpha Wire Ecogen Ecowire Plus black hook-up wire. Ideal for industrial automation and electrical wiring requiring durable, recyclable, and high-performance cable solutions.
Explore more in Wires & Cables at EnvMart for compatible accessories and related products.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor size of this model is 10 AWG, which corresponds to 4.92 mm².
This wire can operate at a maximum temperature of 110°C.
It utilizes modified polyphenylene ether (MPPE) insulation, which is flame retardant, halogen-free, and low smoke.
The wire is rated for 300 volts, making it suitable for moderate voltage applications.
The overall diameter of this model is 3.73 mm.
The conductor consists of 19 strands, each measuring 0.57 mm in diameter.
This hook-up wire comes in a length of 30 meters.
It complies with CE, ISO 6722, REACH, and RoHS standards.
The minimum operating temperature is -40°C.
This model is suitable for applications in industrial automation, electrical wiring, and renewable energy sectors.
The jacket material is MPPE, which is black, flame retardant, halogen-free, and low smoke, enhancing safety and identification.
The insulation thickness is 0.43 mm (0.017 inches).
